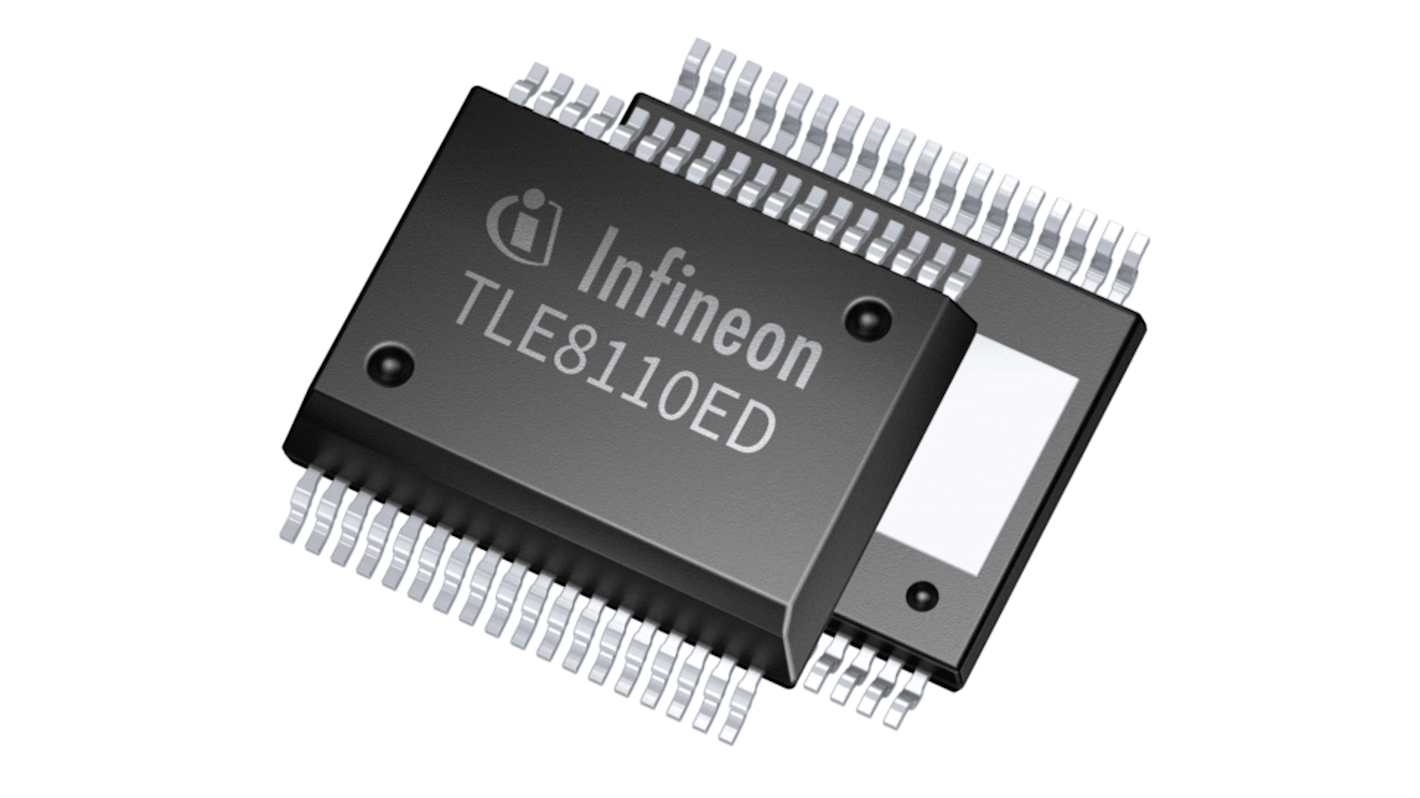

Infineon TLE8110EDXUMA1 Low Side 8, Low Side Power Switch IC 36-Pin, DSO-36

RS Stock No.:: 229-1912
Mfr. Part No.:: TLE8110EDXUMA1
Brand:: Infineon

Infineon TLE8110EDXUMA1 Low Side 8, Low Side Power Switch IC 36-Pin, DSO-36

Bulk discount available

View bulk pricing options

Subtotal (1 unit)*

£6.72

(exc. VAT)

£8.06

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

913 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 9	£6.72
10 - 24	£6.38
25 - 49	£6.12
50 - 99	£5.85
100 +	£5.44

*price indicative

RS Stock No.:: 229-1912
Mfr. Part No.:: TLE8110EDXUMA1
Brand:: Infineon

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Infineon
	Power Switch Type	Low Side
	Product Type	Power Switch IC
	Power Switch Topology	Low Side
	Switch On Resistance RdsOn	1.2nΩ
	Number of Outputs	10
	Number of Inputs	8
	Interface Type	Parallel, SPI
	Mount Type	Surface
	Package Type	DSO-36
	Minimum Supply Voltage	3V
	Pin Count	36
	Maximum Supply Voltage	5.5V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	150°C
	Operating Current	0.002A
	Width	10.3mm
	Standards/Approvals	No
	Height	2.5mm
	Length	10.3mm
	Automotive Standard	AEC
	Series	TLE8110ED

	Select all
	Brand Infineon
	Power Switch Type Low Side
	Product Type Power Switch IC
	Power Switch Topology Low Side
	Switch On Resistance RdsOn 1.2nΩ
	Number of Outputs 10
	Number of Inputs 8
	Interface Type Parallel, SPI
	Mount Type Surface
	Package Type DSO-36
	Minimum Supply Voltage 3V
	Pin Count 36
	Maximum Supply Voltage 5.5V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 150°C
	Operating Current 0.002A
	Width 10.3mm
	Standards/Approvals No
	Height 2.5mm
	Length 10.3mm
	Automotive Standard AEC
	Series TLE8110ED

Datasheet - TLE8110EDXUMA1

Infineon TLE8110ED Series Power Switch IC, 5.5V Maximum Supply Voltage, 10 Outputs - TLE8110EDXUMA1

This power switch IC is a low-side automotive switching device designed for control of multiple loads in vehicles. It operates within automotive voltage levels and is intended for surface-mounted installations where parallel or serial peripheral Interface control is required. The component is developed to function across extended temperature conditions typical of automotive environments.

Features and Benefits:

• Low-side topology delivers controlled switching for ground-side loads
• Operates from 3 V to 5.5 V for compatibility with common vehicle rails
• Ten outputs enable Compact multi-load management in one package
• Eight inputs provide flexible control signals for complex systems
• Very low Rds(on) of 1.2 nΩ minimises conduction losses
• Rated for operation up to 150 °C for high-temperature durability

Applications

• Suitable for body electronics switching tasks in vehicles
• Ideal for multiplexed low-side load distribution systems
• Used for lamp and actuator control requiring multiple outputs
• Can be used for gateway or module integration with SPI control
• Used with surface-mount module assemblies on automotive boards
