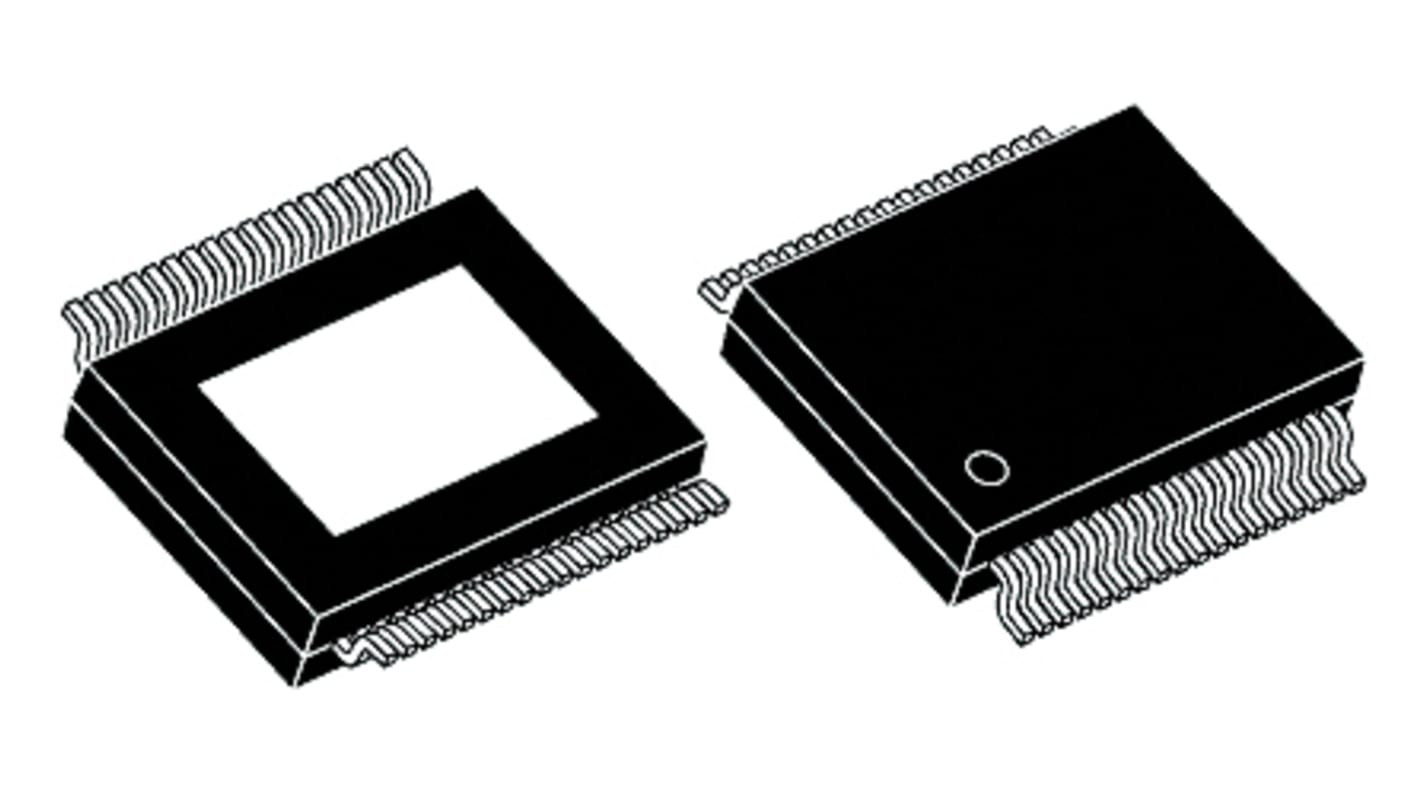

Infineon High Side 8, High Side Power Switch Power Switch IC 36-Pin, DSO
- RS Stock No.:
- 178-7436
- Mfr. Part No.:
- ISO1H815GAUMA1
- Brand:
- Infineon
Subtotal (1 reel of 800 units)*
£3,043.20
(exc. VAT)
£3,652.00
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Reel* |
|---|---|---|
| 800 + | £3.804 | £3,043.20 |
*price indicative
- RS Stock No.:
- 178-7436
- Mfr. Part No.:
- ISO1H815GAUMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | Power Switch IC | |
| Power Switch Type | High Side Power Switch | |
| Power Switch Topology | High Side | |
| Switch On Resistance RdsOn | 320mΩ | |
| Number of Outputs | 8 | |
| Number of Inputs | 8 | |
| Mount Type | Surface | |
| Package Type | DSO | |
| Minimum Supply Voltage | -0.5V | |
| Maximum Supply Voltage | 6.5V | |
| Pin Count | 36 | |
| Minimum Operating Temperature | -25°C | |
| Operating Current | 1.4A | |
| Maximum Operating Temperature | 125°C | |
| Length | 15.9mm | |
| Height | 3.5mm | |
| Width | 11 mm | |
| Standards/Approvals | No | |
| Series | ISOFACE | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type Power Switch IC | ||
Power Switch Type High Side Power Switch | ||
Power Switch Topology High Side | ||
Switch On Resistance RdsOn 320mΩ | ||
Number of Outputs 8 | ||
Number of Inputs 8 | ||
Mount Type Surface | ||
Package Type DSO | ||
Minimum Supply Voltage -0.5V | ||
Maximum Supply Voltage 6.5V | ||
Pin Count 36 | ||
Minimum Operating Temperature -25°C | ||
Operating Current 1.4A | ||
Maximum Operating Temperature 125°C | ||
Length 15.9mm | ||
Height 3.5mm | ||
Width 11 mm | ||
Standards/Approvals No | ||
Series ISOFACE | ||
Automotive Standard No | ||
RoHS Status: Exempt
Galvanic Isolated Power Switch, Infineon
The ISOFACE™ Isolated Industrial Interface devices by Infineon are galvanic isolation products that offer short circuit protection and are also EMI robust.
Infineon ISOFACE™ products contain support for diagnostics
Production ready and EMI tested
