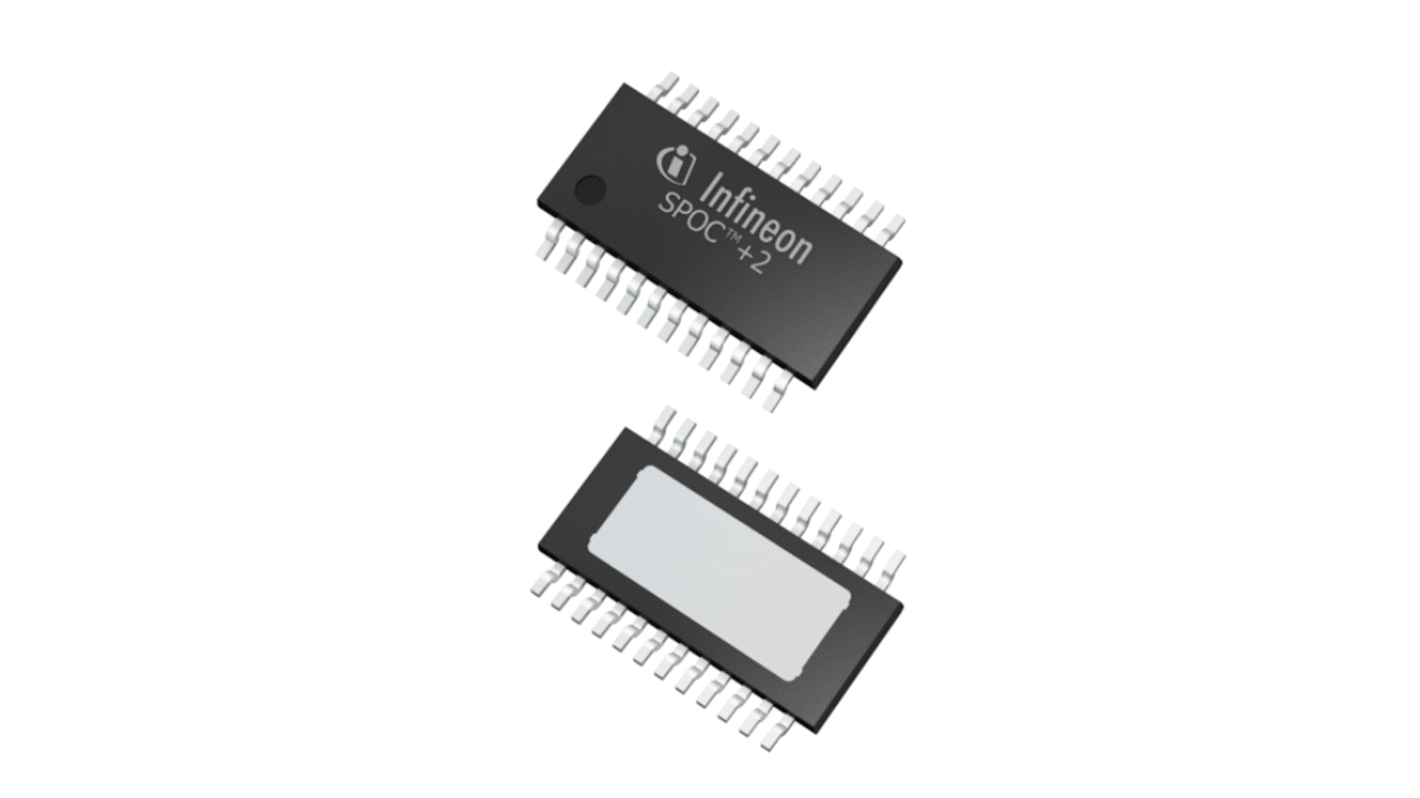

Infineon BTS712204ESAXUMA1, QuadHigh Side, High Side Power Switch IC 24-Pin, PG-TSDSO-24
- RS Stock No.:
- 229-1782
- Mfr. Part No.:
- BTS712204ESAXUMA1
- Brand:
- Infineon
6000 In stock - FREE next working day delivery available
Added
Price Each (On a Reel of 3000)
£1.81
(exc. VAT)
£2.17
(inc. VAT)
| Units | Per unit | Per Reel* |
| 3000 + | £1.81 | £5,430.00 |
| *price indicative | ||
- RS Stock No.:
- 229-1782
- Mfr. Part No.:
- BTS712204ESAXUMA1
- Brand:
- Infineon
Technical Reference
Legislation and Compliance
Product Details
The BTS71220-4ESA is a SPI Power Controller, providing protection functions and diagnosis
The device is integrated in SMART7 technology.
Summary of Features
Basic Features
•High-Side Switch with Diagnosis and Embedded Protection
•Part of SPOC™+2 Family
•Daisy Chain capable SPI interface
•3.3 V and 5 V compatible logic pins
•Slew rate control for all Channels
•Reverse ON for low power dissipation in Reverse Polarity
•Switch ON capability while Inverse Current condition (Inverse ON)
•Green Product (RoHS compliant)
•Qualified in accordance with AEC Q100 grade 1
•Part of SPOC™+2 Family
•Daisy Chain capable SPI interface
•3.3 V and 5 V compatible logic pins
•Slew rate control for all Channels
•Reverse ON for low power dissipation in Reverse Polarity
•Switch ON capability while Inverse Current condition (Inverse ON)
•Green Product (RoHS compliant)
•Qualified in accordance with AEC Q100 grade 1
Protection Features
•Absolute and dynamic temperature limitation with controlled restart
•Overcurrent protection (tripping) with Programmable Restart Control and Current Threshold
•Undervoltage shutdown
•Overvoltage protection with external components
•Overcurrent protection (tripping) with Programmable Restart Control and Current Threshold
•Undervoltage shutdown
•Overvoltage protection with external components
Diagnostic Features
•Proportional load current sense
•Open Load in ON and OFF state
•Short circuit to ground and battery
•Diagnosis feedback via SPI
•Open Load in ON and OFF state
•Short circuit to ground and battery
•Diagnosis feedback via SPI
Potential Applications
•Suitable for resistive, inductive and capacitive loads
•Replaces electromechanical relays, fuses and discrete circuits
•Driving capability suitable for 5 A and 3 A loads and high inrush current loads such as 55W bulb, HID or LED equivalent and 27W bulb or LED equivalent
•Replaces electromechanical relays, fuses and discrete circuits
•Driving capability suitable for 5 A and 3 A loads and high inrush current loads such as 55W bulb, HID or LED equivalent and 27W bulb or LED equivalent
Specifications
Attribute | Value |
|---|---|
| Power Switch Topology | High Side |
| Power Switch Type | High Side |
| Switch On Resistance | 38MΩ |
| Number of Channels | 4 |
| Maximum Operating Supply Voltage | 28 V |
| Maximum Operating Current | 0.007A |
| Number of Outputs | 12 |
| Package Type | PG-TSDSO-24 |
| Pin Count | 24 |
