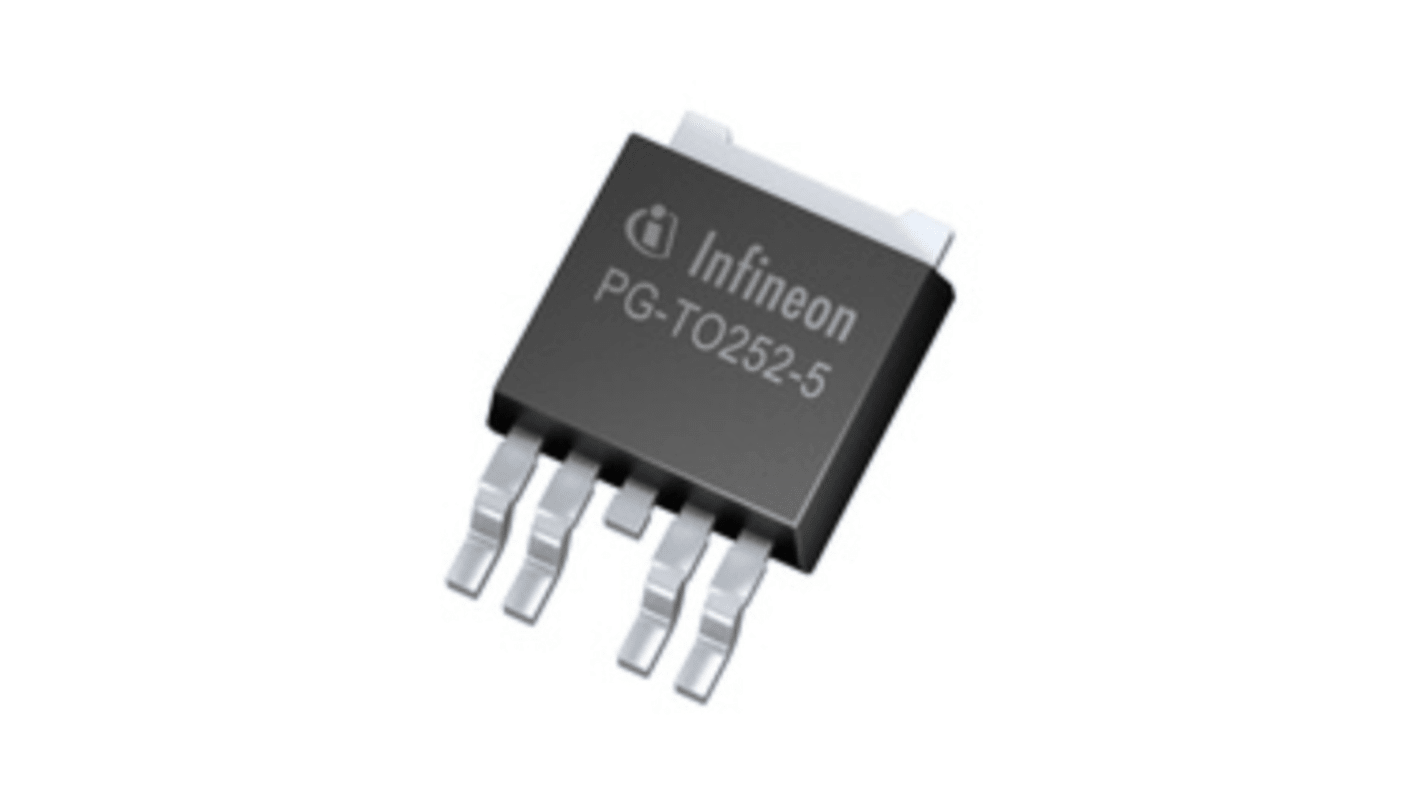

Infineon High Side 1, High Side Power Switch IC 5-Pin, TO-252
- RS Stock No.:
- 229-1779
- Mfr. Part No.:
- BTS500601TEAAUMA2
- Brand:
- Infineon
Subtotal (1 reel of 2500 units)*
£4,300.00
(exc. VAT)
£5,150.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,500 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2500 + | £1.72 | £4,300.00 |
*price indicative
- RS Stock No.:
- 229-1779
- Mfr. Part No.:
- BTS500601TEAAUMA2
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | Power Switch IC | |
| Power Switch Type | High Side | |
| Power Switch Topology | High Side | |
| Switch On Resistance RdsOn | 12mΩ | |
| Number of Outputs | 5 | |
| Number of Inputs | 1 | |
| Mount Type | Surface | |
| Package Type | TO-252 | |
| Minimum Supply Voltage | -0.3V | |
| Maximum Supply Voltage | 19V | |
| Pin Count | 5 | |
| Operating Current | 0.015A | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 150°C | |
| Length | 6.5mm | |
| Height | 2.3mm | |
| Width | 9.98 mm | |
| Standards/Approvals | No | |
| Automotive Standard | AEC | |
| Series | PROFET | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type Power Switch IC | ||
Power Switch Type High Side | ||
Power Switch Topology High Side | ||
Switch On Resistance RdsOn 12mΩ | ||
Number of Outputs 5 | ||
Number of Inputs 1 | ||
Mount Type Surface | ||
Package Type TO-252 | ||
Minimum Supply Voltage -0.3V | ||
Maximum Supply Voltage 19V | ||
Pin Count 5 | ||
Operating Current 0.015A | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 150°C | ||
Length 6.5mm | ||
Height 2.3mm | ||
Width 9.98 mm | ||
Standards/Approvals No | ||
Automotive Standard AEC | ||
Series PROFET | ||
Embedded in a PG-TO252-5-11 package, the BTS50060-1TEA is a 6mΩ single Smart High-Side Power Switch
It is based on Smart power chip technology with P-channel vertical power MOFSET, providing protective and diagnostic functions. It is especially designed to drive loads in the harsh automotive environment.
Summary of Features
•Reduced switching losses
•Optimized for EMC – low emission, high immunity
•Optimized for PWM frequencies of approx. 100Hz
•3.3V and 5V compatible logic inputs
•Advanced analog load current sense signal supporting easy calibration for very high accuracy
•Embedded diagnostics features (e.g. open load detection at ON and OFF)
•Embedded diagnostics functions (e.g. over current shutdown, over temperature shutdown)
•Infineon® INTELLIGENT LATCH
•Green Product (RoHS compliant)
•AEC Qualified
Benefits
•High load current capability
•High inrush current capability
•High energy capability
•Integrated protection functionality
•Integrated diagnosis functionality
•High sense current accuracy
Potential Applications
•Automotive Body & Convenience
•Power Distribution
•Relay Replacement
•Fuse Replacement
•Heating Applications
