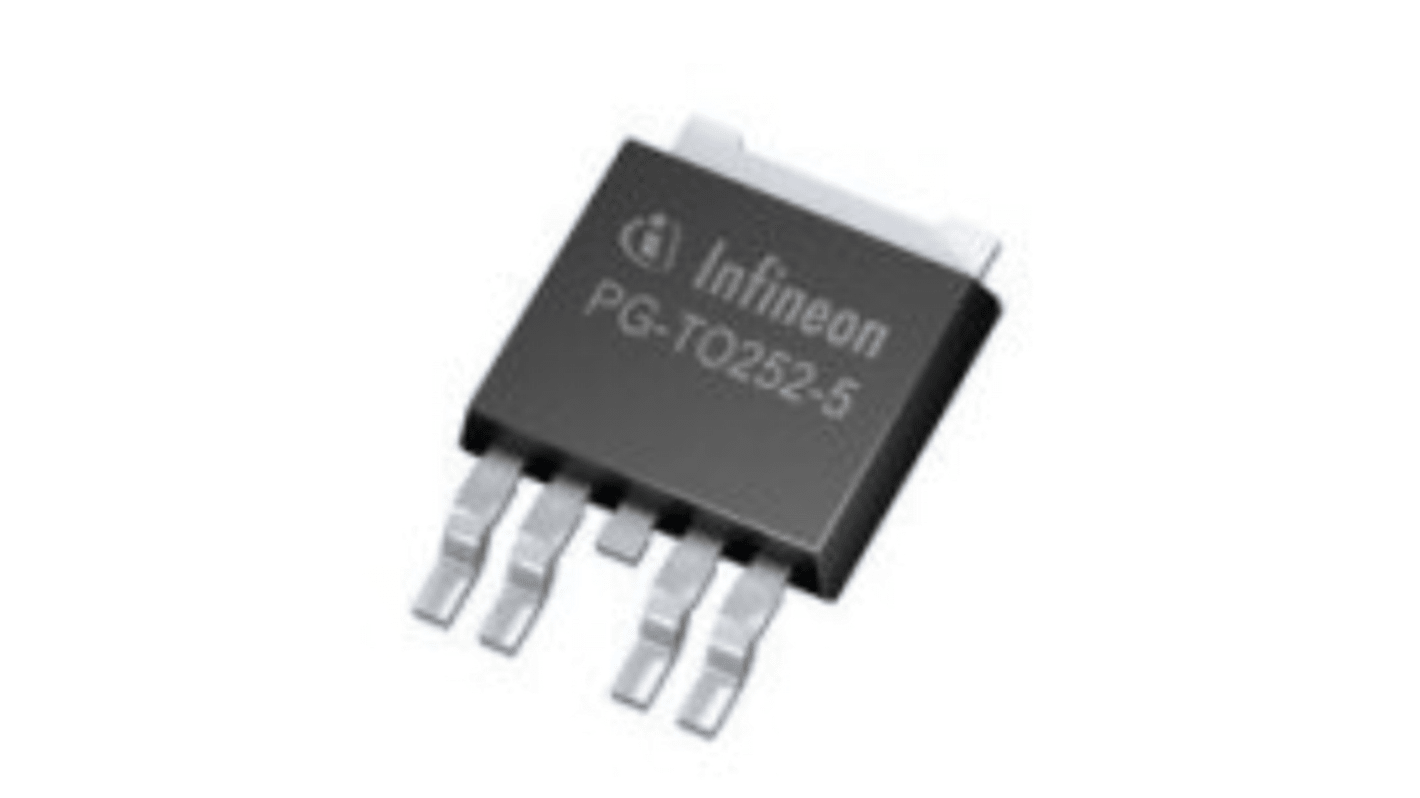

Infineon BTF3050TEATMA1 Low Side 1, Low Side Power Switch IC 5-Pin, TO-252
- RS Stock No.:
- 229-1751
- Mfr. Part No.:
- BTF3050TEATMA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 pack of 10 units)*
£7.45
(exc. VAT)
£8.94
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 9,300 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 90 | £0.745 | £7.45 |
| 100 - 240 | £0.708 | £7.08 |
| 250 - 490 | £0.678 | £6.78 |
| 500 - 990 | £0.648 | £6.48 |
| 1000 + | £0.603 | £6.03 |
*price indicative
- RS Stock No.:
- 229-1751
- Mfr. Part No.:
- BTF3050TEATMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Power Switch Topology | Low Side | |
| Power Switch Type | Low Side | |
| Product Type | Power Switch IC | |
| Switch On Resistance RdsOn | 100mΩ | |
| Number of Outputs | 2 | |
| Number of Inputs | 1 | |
| Mount Type | Surface | |
| Package Type | TO-252 | |
| Minimum Supply Voltage | -0.3V | |
| Maximum Supply Voltage | 5.5V | |
| Pin Count | 5 | |
| Minimum Operating Temperature | -40°C | |
| Operating Current | 0.006A | |
| Maximum Operating Temperature | 150°C | |
| Width | 9.98 mm | |
| Height | 2.3mm | |
| Length | 6.5mm | |
| Standards/Approvals | No | |
| Series | BTF3050TE | |
| Automotive Standard | AEC | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Power Switch Topology Low Side | ||
Power Switch Type Low Side | ||
Product Type Power Switch IC | ||
Switch On Resistance RdsOn 100mΩ | ||
Number of Outputs 2 | ||
Number of Inputs 1 | ||
Mount Type Surface | ||
Package Type TO-252 | ||
Minimum Supply Voltage -0.3V | ||
Maximum Supply Voltage 5.5V | ||
Pin Count 5 | ||
Minimum Operating Temperature -40°C | ||
Operating Current 0.006A | ||
Maximum Operating Temperature 150°C | ||
Width 9.98 mm | ||
Height 2.3mm | ||
Length 6.5mm | ||
Standards/Approvals No | ||
Series BTF3050TE | ||
Automotive Standard AEC | ||
The Infineon smart low-side power switch provides embedded protective functions. The power transistor is built by a n channel vertical power MOSFET. The device is monolithically integrated. It is automotive qualified and is optimized for 12V automotive and industrial applications. It has very low power DMOS leakage current in OFF state and 3.3 V and 5 V compatible logic inputs.
It is RoHS compliant and AEC qualified
It has digital feedback
