The TC7USB42MU is high-speed CMOS dual 1-2 multiplexer/demultiplexer. The low ON-resistance and the low capacitance of the switch allow connections to USB2.0 (480Mbps) application. This device consists of dual individual two-inputs multiplexer/demultiplexer with common select input (S) and output enable (OE). The D+/D- inputs is connected to the 1D+/1D- or 2D+/2D- outputs determined by the combination both the select input (S) and output enable (OE).

Switch terminal ON-capacitance: CI/O = 5 pF Switch ON (typ.) @VCC = 3.3 V
ON-resistance: RON = 4.5 Ω (typ.) @VCC = 3 V, VIS = 0 V
RON flatness: RON(flat) = 1.3 Ω (typ.)@VCC = 3 V
Difference of ON-resistance between switches: ∆RON = 0.35 Ω (typ.)@VCC = 3 V
Power-down protection provided on all inputs and outputs.
Ultra-small Package: UQFN10

Select all	Attribute	Value
	Brand	Toshiba
	Power Switch Type	USB
	Switch On Resistance	14Ω
	Maximum Operating Supply Voltage	4.3 V
	Maximum Operating Current	50mA
	Number of Outputs	2
	Mounting Type	Surface Mount
	Package Type	UQFN
	Pin Count	10
	Maximum Operating Temperature	+85 °C
	Minimum Operating Temperature	-40 °C
	Dimensions	1.4 x 1.8 x 0.5mm

	Select all
	Brand Toshiba
	Power Switch Type USB
	Switch On Resistance 14Ω
	Maximum Operating Supply Voltage 4.3 V
	Maximum Operating Current 50mA
	Number of Outputs 2
	Mounting Type Surface Mount
	Package Type UQFN
	Pin Count 10
	Maximum Operating Temperature +85 °C
	Minimum Operating Temperature -40 °C
	Dimensions 1.4 x 1.8 x 0.5mm

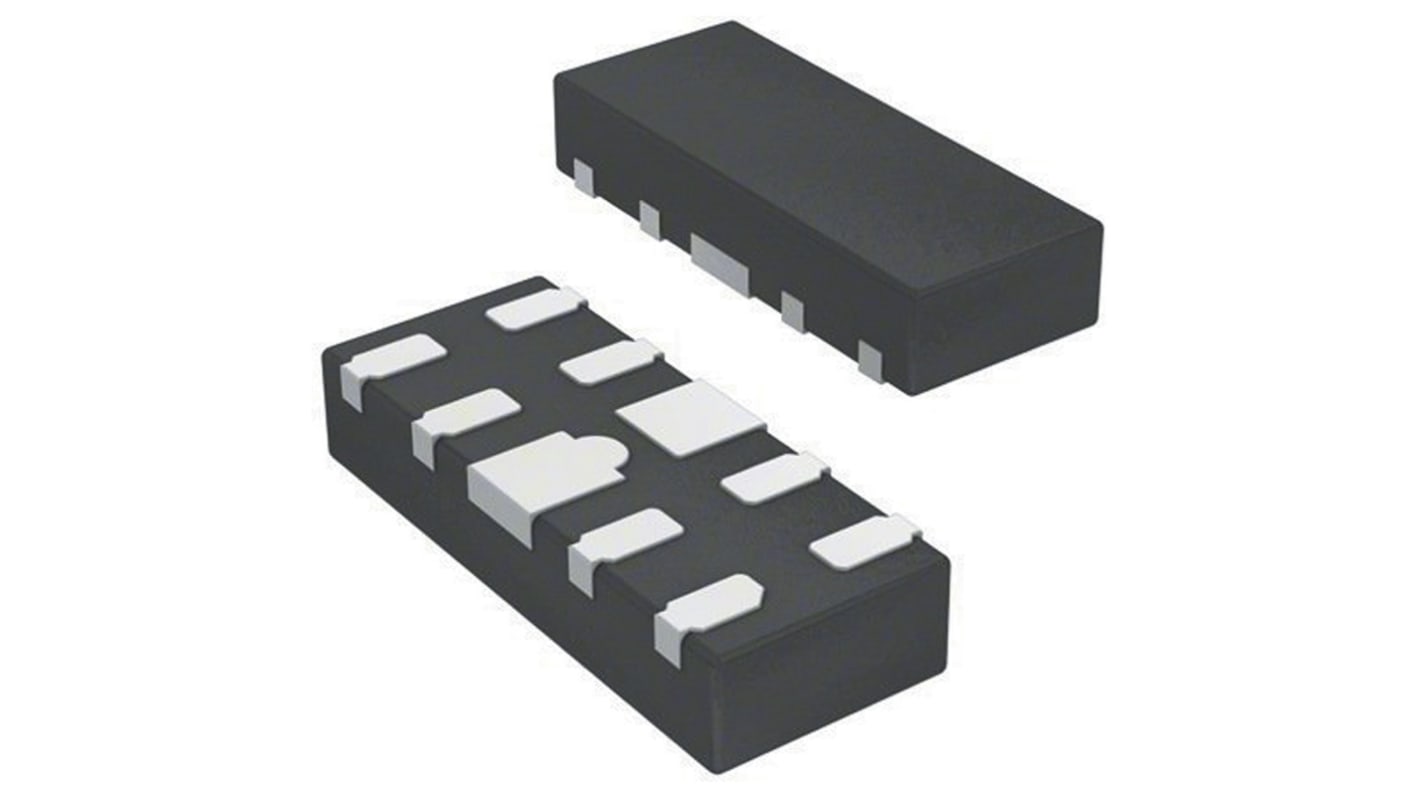

Toshiba TC7USB42MU, USB Power Switch IC 10-Pin, UQFN
