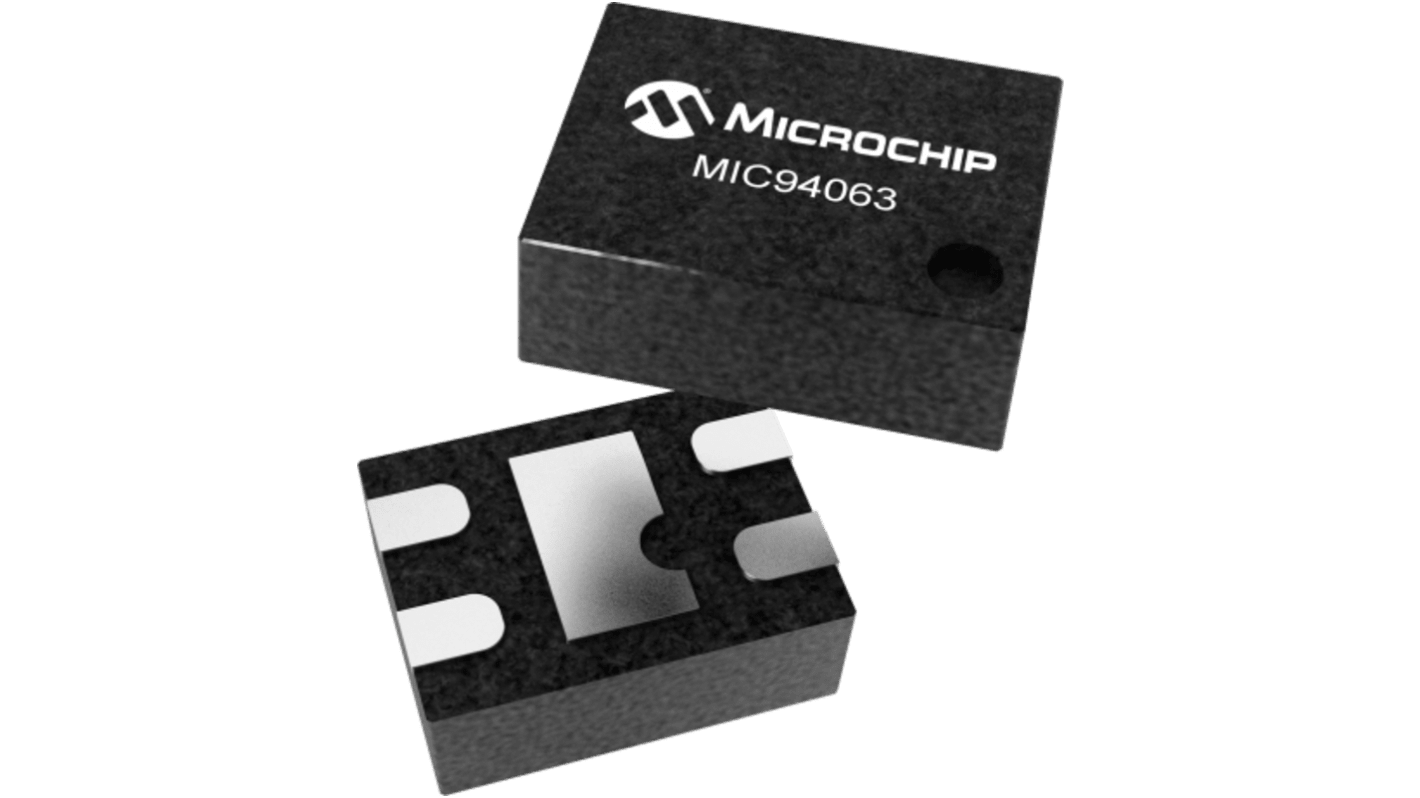

Microchip MIC94063YMT-TR, 1High Side, High Side Power Switch IC 4-Pin, UDFN

View all Power Switch ICs

Subtotal (1 reel of 5000 units)*

£2,670.00

(exc. VAT)

£3,205.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 999,995,000 unit(s) shipping from 18 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
5000 +£0.534£2,670.00

*price indicative

RS Stock No.:
598-194
Mfr. Part No.:
MIC94063YMT-TR
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Power Switch Topology

High Side

Power Switch Type

High Side

Switch On Resistance

77mΩ

Number of Channels

1

Maximum Operating Supply Voltage

1.7 → 5.5 V

Number of Outputs

1

Maximum Operating Current

2A

Package Type

UDFN

Pin Count

4

The Microchip High side load switch is designed for operation between 1.7V to 5.5V. The device contains a low on-resistance P-channel MOSFET that supports over 2A of continuous current. It features an active load discharge circuit that ensures capacitive loads retain no charge when the main switch is in an OFF state. The device provides rapid turn-on, while the other version offers a slew-rate controlled soft-start turn-on of 800 μs (typical) to prevent in-rush current from glitching supply rails.

1.7V to 5.5V input voltage range
2A continuous operating current
