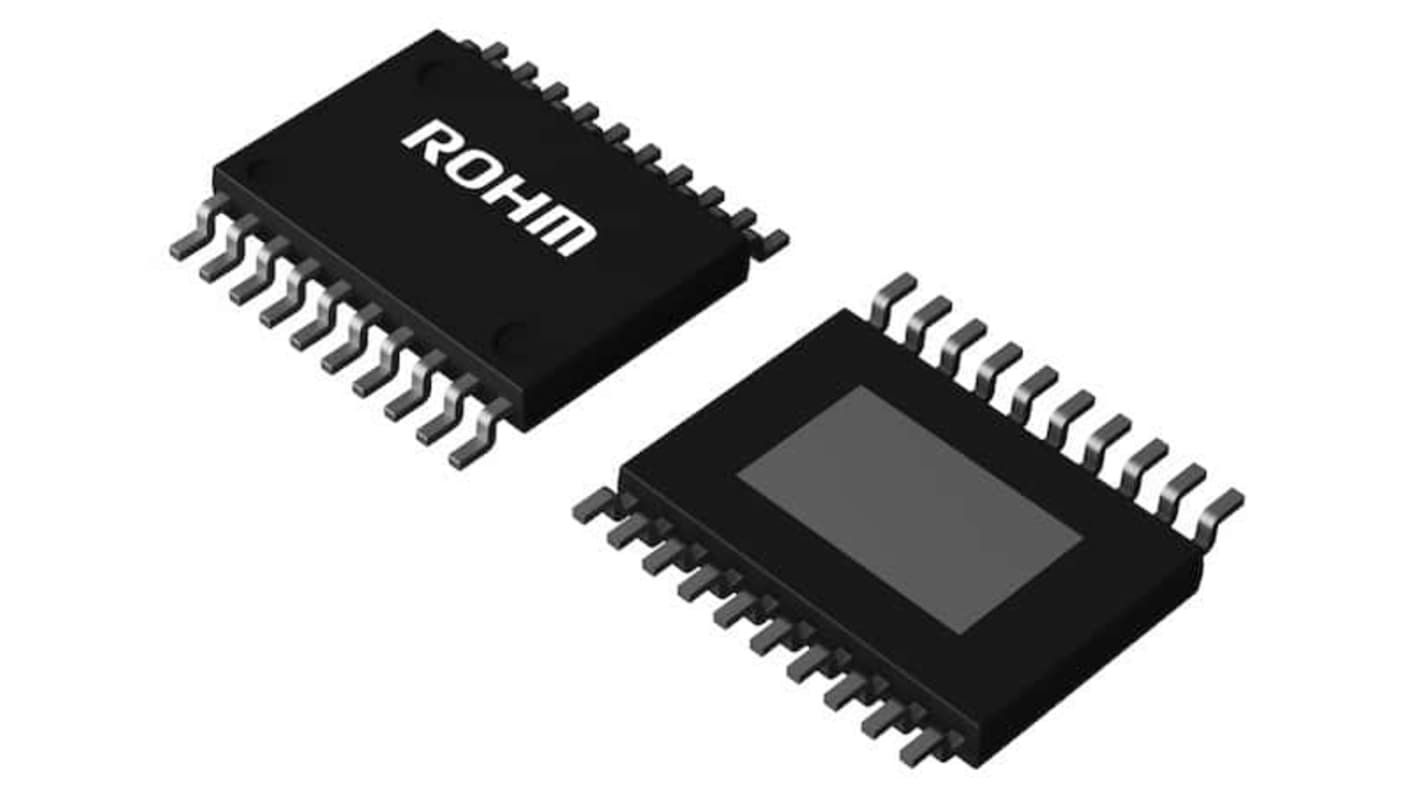

ROHM BD4LB650EFV-CE2 Low Side 4, Low Side Power Switch IC 20-Pin, HTSSOP-B20
- RS Stock No.:
- 265-390
- Mfr. Part No.:
- BD4LB650EFV-CE2
- Brand:
- ROHM
Bulk discount available
Subtotal (1 tape of 10 units)*
£30.06
(exc. VAT)
£36.07
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 100 unit(s) shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 10 - 90 | £3.006 | £30.06 |
| 100 - 240 | £2.855 | £28.55 |
| 250 + | £2.645 | £26.45 |
*price indicative
- RS Stock No.:
- 265-390
- Mfr. Part No.:
- BD4LB650EFV-CE2
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | Power Switch IC | |
| Power Switch Topology | Low Side | |
| Power Switch Type | Low Side | |
| Switch On Resistance RdsOn | 650mΩ | |
| Number of Inputs | 4 | |
| Interface Type | SPI | |
| Mount Type | Surface | |
| Package Type | HTSSOP-B20 | |
| Minimum Supply Voltage | 4V | |
| Maximum Supply Voltage | 5.5V | |
| Pin Count | 20 | |
| Operating Current | 1A | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 150°C | |
| Length | 6.5mm | |
| Height | 1mm | |
| Standards/Approvals | AEC-Q100 | |
| Series | Automotive IPD | |
| Automotive Standard | AEC-Q100 | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type Power Switch IC | ||
Power Switch Topology Low Side | ||
Power Switch Type Low Side | ||
Switch On Resistance RdsOn 650mΩ | ||
Number of Inputs 4 | ||
Interface Type SPI | ||
Mount Type Surface | ||
Package Type HTSSOP-B20 | ||
Minimum Supply Voltage 4V | ||
Maximum Supply Voltage 5.5V | ||
Pin Count 20 | ||
Operating Current 1A | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 150°C | ||
Length 6.5mm | ||
Height 1mm | ||
Standards/Approvals AEC-Q100 | ||
Series Automotive IPD | ||
Automotive Standard AEC-Q100 | ||
The ROHM 4 Channel SPI input low side switch for automotive and industrial application. It has built in open load detection function, short ground detection function, over current protection function, thermal shutdown function, and active clamp function.
AEC-Q100 qualified
Built in open load detection function
Built in short ground detection function
Built in over current protection function
Built in thermal shutdown function
Built in active clamp function
Built in synchro mode
