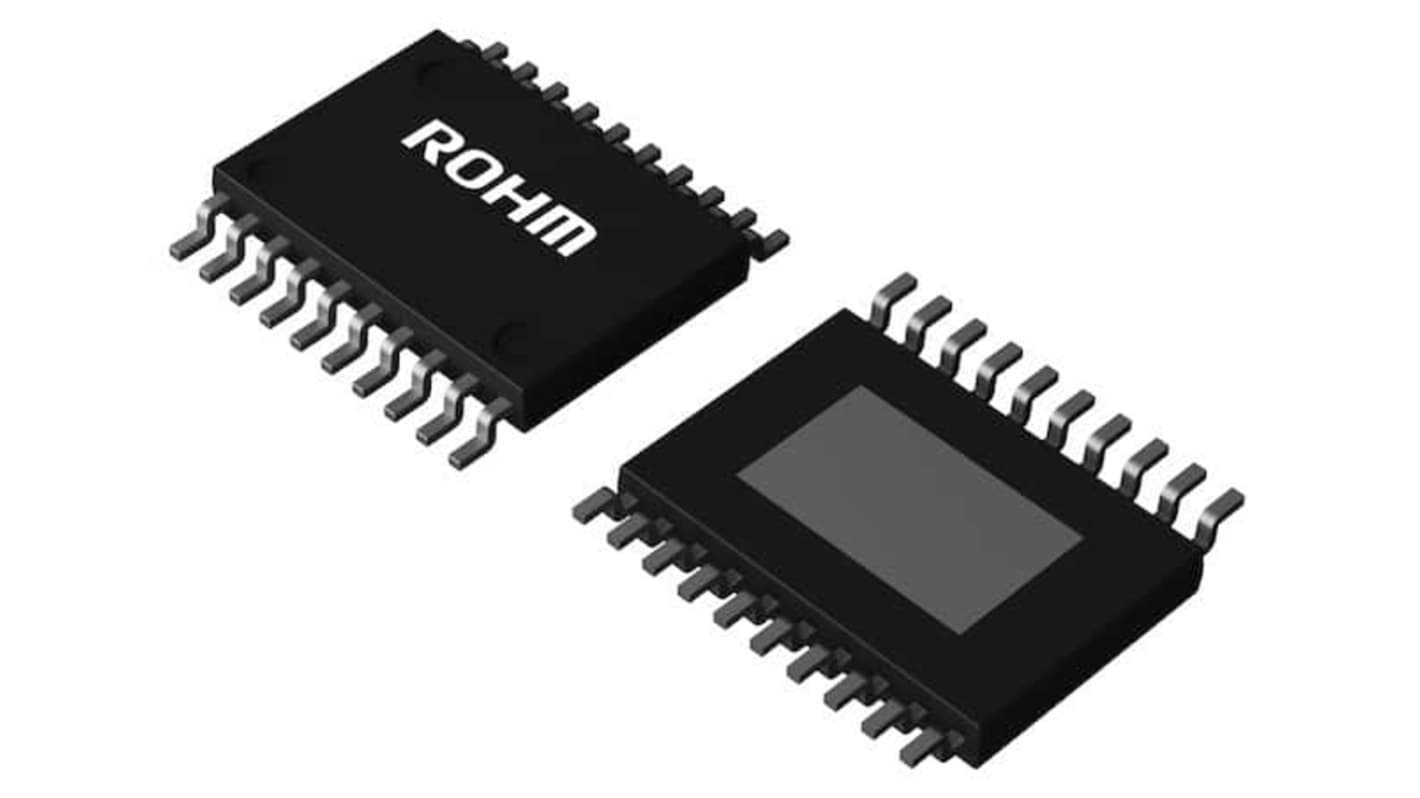

ROHM BD9P305EFV-CE2 DC/DC Converter, 8.5V, 0.8 V, 3 A 20-Pin, HTSSOP-B20
- RS Stock No.:
- 264-707
- Mfr. Part No.:
- BD9P305EFV-CE2
- Brand:
- ROHM
Bulk discount available
Subtotal (1 tape of 5 units)*
£7.73
(exc. VAT)
£9.275
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 100 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 5 - 45 | £1.546 | £7.73 |
| 50 - 95 | £1.468 | £7.34 |
| 100 - 495 | £1.36 | £6.80 |
| 500 - 995 | £1.252 | £6.26 |
| 1000 + | £1.206 | £6.03 |
*price indicative
- RS Stock No.:
- 264-707
- Mfr. Part No.:
- BD9P305EFV-CE2
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | DC/DC Converter | |
| Maximum Output Voltage | 8.5V | |
| Minimum Input Voltage | 3.5V | |
| Maximum Input Voltage | 40V | |
| Minimum Output Current | 3A | |
| Maximum Output Current | 3A | |
| Topology | DC-DC | |
| Maximum Switching Frequency | 2.4MHz | |
| Package Type | HTSSOP-B20 | |
| Minimum Operating Temperature | -40°C | |
| Pin Count | 20 | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | AEC-Q100 | |
| Length | 6.5mm | |
| Height | 1mm | |
| Series | BD9P305EFV-C | |
| Minimum Output Voltage | 0.8V | |
| Automotive Standard | AEC-Q100 | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type DC/DC Converter | ||
Maximum Output Voltage 8.5V | ||
Minimum Input Voltage 3.5V | ||
Maximum Input Voltage 40V | ||
Minimum Output Current 3A | ||
Maximum Output Current 3A | ||
Topology DC-DC | ||
Maximum Switching Frequency 2.4MHz | ||
Package Type HTSSOP-B20 | ||
Minimum Operating Temperature -40°C | ||
Pin Count 20 | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals AEC-Q100 | ||
Length 6.5mm | ||
Height 1mm | ||
Series BD9P305EFV-C | ||
Minimum Output Voltage 0.8V | ||
Automotive Standard AEC-Q100 | ||
The ROHM Nano Pulse Control is a current mode synchronous buck DC-DC converter integrating POWER MOSFETs. It is suitable for use as a power source for automotive and consumer devices.
Soft Start Function
Current Mode Control
Reset Function
Quiescent Current 10 μA (Typ) with 12 V Input to 5.0 V Output
Light Load Mode (LLM)
Forced Pulse Wide Modulation (PWM) Mode
