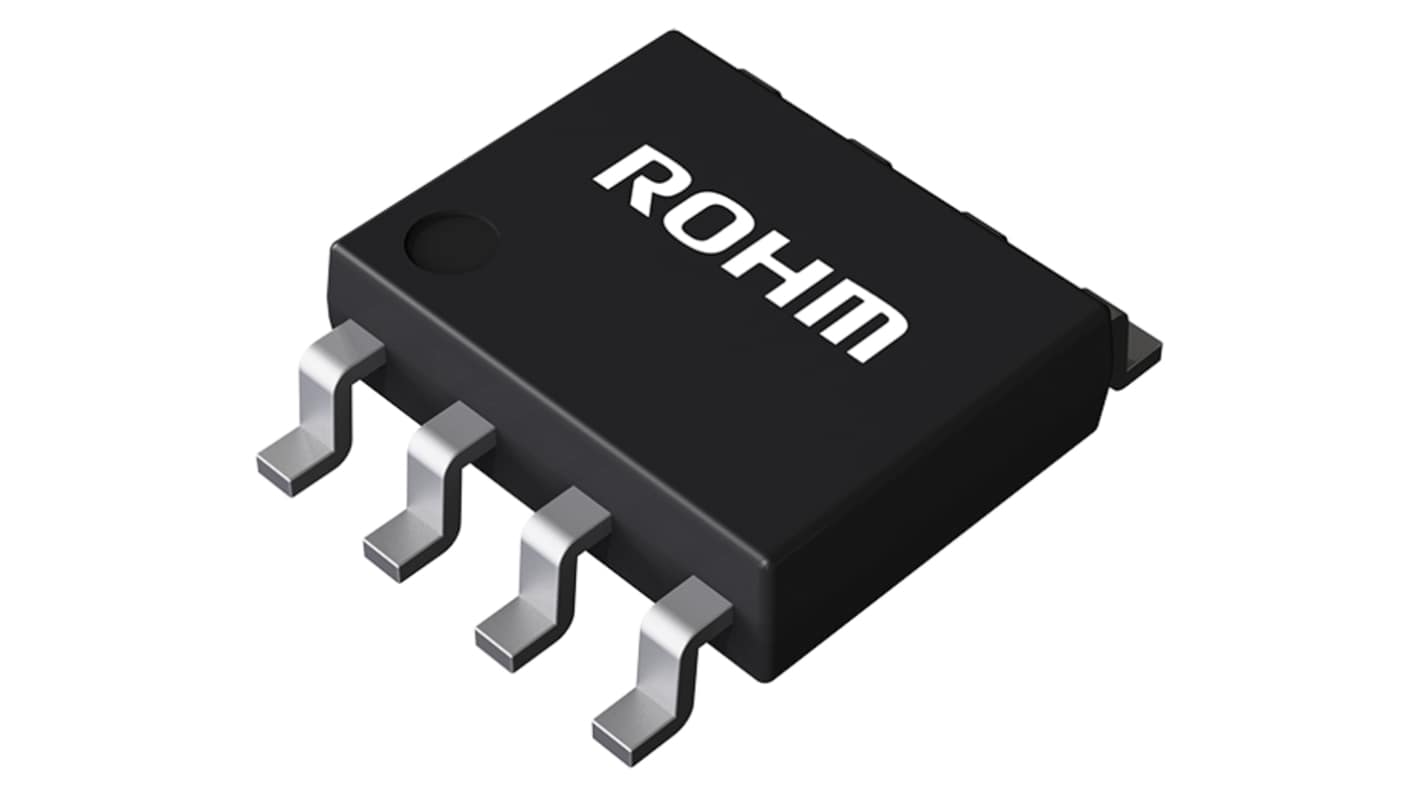

ROHM BM2LD080FJ-CE2 Low Side 2, Low Side Power Control Switch 8-Pin, SOP-J8
- RS Stock No.:
- 265-118
- Mfr. Part No.:
- BM2LD080FJ-CE2
- Brand:
- ROHM
Bulk discount available
Subtotal (1 tape of 5 units)*
£10.35
(exc. VAT)
£12.40
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 100 unit(s) shipping from 30 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 5 - 45 | £2.07 | £10.35 |
| 50 - 95 | £1.964 | £9.82 |
| 100 + | £1.822 | £9.11 |
*price indicative
- RS Stock No.:
- 265-118
- Mfr. Part No.:
- BM2LD080FJ-CE2
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Power Switch Topology | Low Side | |
| Power Switch Type | Low Side | |
| Product Type | Power Control Switch | |
| Switch On Resistance RdsOn | 80mΩ | |
| Number of Outputs | 2 | |
| Number of Inputs | 2 | |
| Mount Type | Through Hole, Surface | |
| Minimum Supply Voltage | 3V | |
| Package Type | SOP-J8 | |
| Maximum Supply Voltage | 5.5V | |
| Pin Count | 8 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 150°C | |
| Operating Current | 3.8A | |
| Standards/Approvals | RoHS | |
| Length | 6mm | |
| Height | 1.65mm | |
| Width | 4.9 mm | |
| Series | BM2LD080FJ-C | |
| Automotive Standard | AEC-Q100 | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Power Switch Topology Low Side | ||
Power Switch Type Low Side | ||
Product Type Power Control Switch | ||
Switch On Resistance RdsOn 80mΩ | ||
Number of Outputs 2 | ||
Number of Inputs 2 | ||
Mount Type Through Hole, Surface | ||
Minimum Supply Voltage 3V | ||
Package Type SOP-J8 | ||
Maximum Supply Voltage 5.5V | ||
Pin Count 8 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 150°C | ||
Operating Current 3.8A | ||
Standards/Approvals RoHS | ||
Length 6mm | ||
Height 1.65mm | ||
Width 4.9 mm | ||
Series BM2LD080FJ-C | ||
Automotive Standard AEC-Q100 | ||
The ROHM 2-channel low-side switch IC is designed to meet the demands of 12V automotive applications, featuring integrated overcurrent protection, thermal shutdown capabilities, and an active clamp function. With a robust architecture, it effectively manages resistive, inductive, and capacitive loads while ensuring output diagnostic functions remain active.
Diagnostic output provides real time monitoring capabilities
High thermal resistance ensures stable operation even under stress
Designed for seamless control from CMOS logic ICs and equivalent inputs
On state resistance aids in reducing power loss during operation
