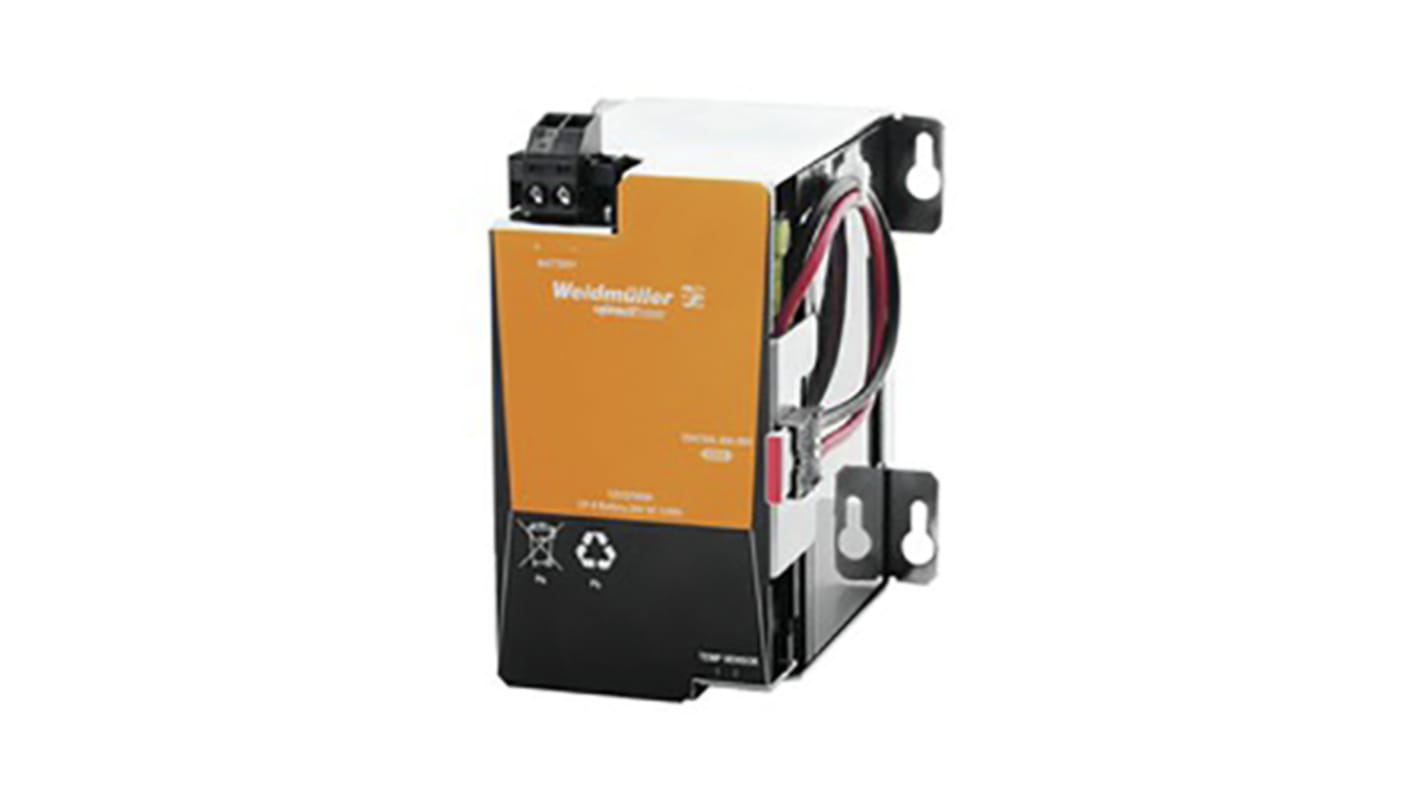

Weidmuller Battery Module, for use with DC UPS
- RS Stock No.:
- 923-6618
- Mfr. Part No.:
- 1251070000
- Brand:
- Weidmüller
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 923-6618
- Mfr. Part No.:
- 1251070000
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Weidmüller | |
Accessory Type | Battery | |
For Use With | DC UPS | |
Terminal Type | Screw | |
Protection Features | Overload Protection, Short Circuit Protection | |
Standards Met | CE, cULus Listed, EAC, RCM, TUV, UL LIsted | |
Mounting Style | DIN Rail Mount | |
Input Current Range | Maximum of 10A | |
Select all | ||
---|---|---|
Brand Weidmüller | ||
Accessory Type Battery | ||
For Use With DC UPS | ||
Terminal Type Screw | ||
Protection Features Overload Protection, Short Circuit Protection | ||
Standards Met CE, cULus Listed, EAC, RCM, TUV, UL LIsted | ||
Mounting Style DIN Rail Mount | ||
Input Current Range Maximum of 10A | ||
- COO (Country of Origin):
- SK
Weidmüller Battery
The Weidmüller 3.3Ah battery is a reliable, efficient and robust power supply accessory used with DC UPS. The battery module has a capacity of 24VDC and maximum input current range of 10A. It consists of high-quality Panasonic battery. In the event of a power shortage, the buffers take over the power supplies in the ranging from 250 milliseconds to 1 second in automation systems. The energy is stored in the internal capacitors making them maintenance-free. The buffers incorporate an LED display to show the respective state of the buffer. This is a sealed maintenance-free lead-fleece battery. The battery module is fitted with a temperature sensor to provide optimum battery charging and battery life.
Features and Benefits
Mount type is DIN rail
Operating temperature ranging between 0°C and 40°C
Buffer time is 5 minutes
Operating temperature ranging between 0°C and 40°C
Buffer time is 5 minutes
Applications
DC
UPS
UPS
Certifications
CE certified
CULus approved
EAC
IP20 rated
RCM
TUV approved
UL approved
CULus approved
EAC
IP20 rated
RCM
TUV approved
UL approved
