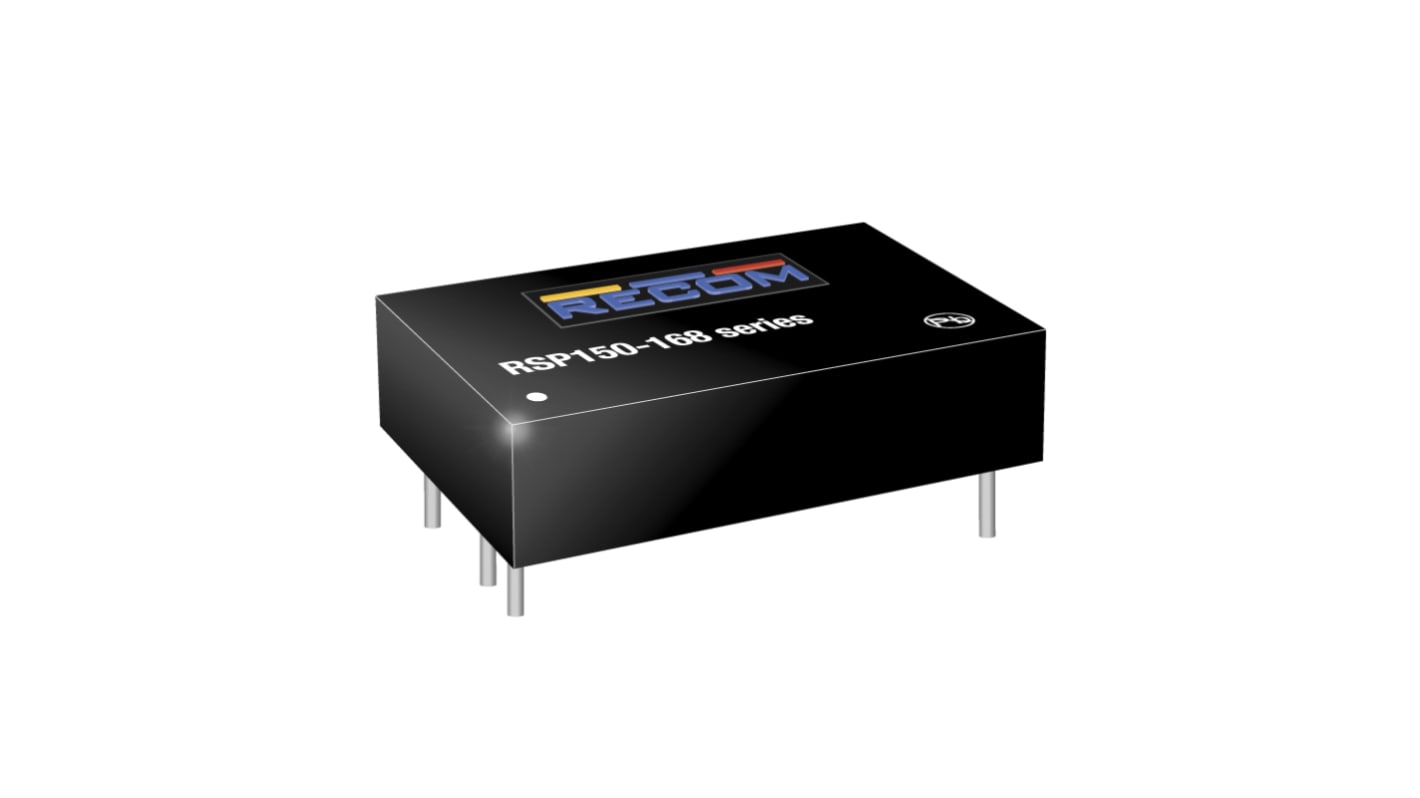

Power Supply Buffer Module for use with RIA12 and NF F01-510 Transients
- RS Stock No.:
- 184-5924
- Mfr. Part No.:
- RSP150-168
- Brand:
- Recom
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 184-5924
- Mfr. Part No.:
- RSP150-168
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Recom | |
Accessory Type | Clamping Surge Protector | |
For Use With | RIA12 and NF F01-510 Transients | |
Series | RSP-168 | |
Protection Features | Over Current Protection, Over Voltage Protection, Reverse Polarity Protection | |
Mounting Style | Through Hole | |
Supply Voltage | 40 → 160V dc | |
Output Type | Voltage | |
Select all | ||
---|---|---|
Brand Recom | ||
Accessory Type Clamping Surge Protector | ||
For Use With RIA12 and NF F01-510 Transients | ||
Series RSP-168 | ||
Protection Features Over Current Protection, Over Voltage Protection, Reverse Polarity Protection | ||
Mounting Style Through Hole | ||
Supply Voltage 40 → 160V dc | ||
Output Type Voltage | ||
- COO (Country of Origin):
- TW
The RSPxxx-168 is a surge protector module designed to protect DC/DC converters from railway over-voltage transients up to 385VDC. The output voltage tracks the input voltage in the range of 40-165VDC, thereafter the output voltage is clamped to 168VDC. The RSP150-168 is a board-mount module that can be simply inserted in series with the input of the RP40-110xxSFR, RP75H-110xxSRW, RP90Q-110xxSRW, RPA100H-110xxSRUW, RPA120H-110xxSRW and RP120Q-110xxSRW converter families to make them compliant to both RIA12 and NF F 01-510 surge immunity specifications.
Surge protector (voltage clamp) for RIA12 and NF F01-510 transients
Output follows input up to the clamp voltage
Max. load = 20W, 150W or 300W
-40°C to +95°C Operating temperature
Board-mount module
Output follows input up to the clamp voltage
Max. load = 20W, 150W or 300W
-40°C to +95°C Operating temperature
Board-mount module
