PULS Buffer Module
- RS Stock No.:
- 136-5368
- Distrelec Article No.:
- 301-09-858
- Mfr. Part No.:
- UF40.241
- Brand:
- PULS
Subtotal (1 unit)*
£311.48
(exc. VAT)
£373.78
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £311.48 |
*price indicative
- RS Stock No.:
- 136-5368
- Distrelec Article No.:
- 301-09-858
- Mfr. Part No.:
- UF40.241
- Brand:
- PULS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | PULS | |
| Accessory Type | Buffer Module | |
| Terminal Type | Screw | |
| Protection Features | No-Load, Overload Protection, Short Circuit Protection | |
| Input Current Range | 40A | |
| Supply Voltage | 24V dc | |
| Mounting Style | DIN Rail Mount | |
| Response Time | 0.16s | |
Select all | ||
|---|---|---|
Brand PULS | ||
Accessory Type Buffer Module | ||
Terminal Type Screw | ||
Protection Features No-Load, Overload Protection, Short Circuit Protection | ||
Input Current Range 40A | ||
Supply Voltage 24V dc | ||
Mounting Style DIN Rail Mount | ||
Response Time 0.16s | ||
- COO (Country of Origin):
- CZ

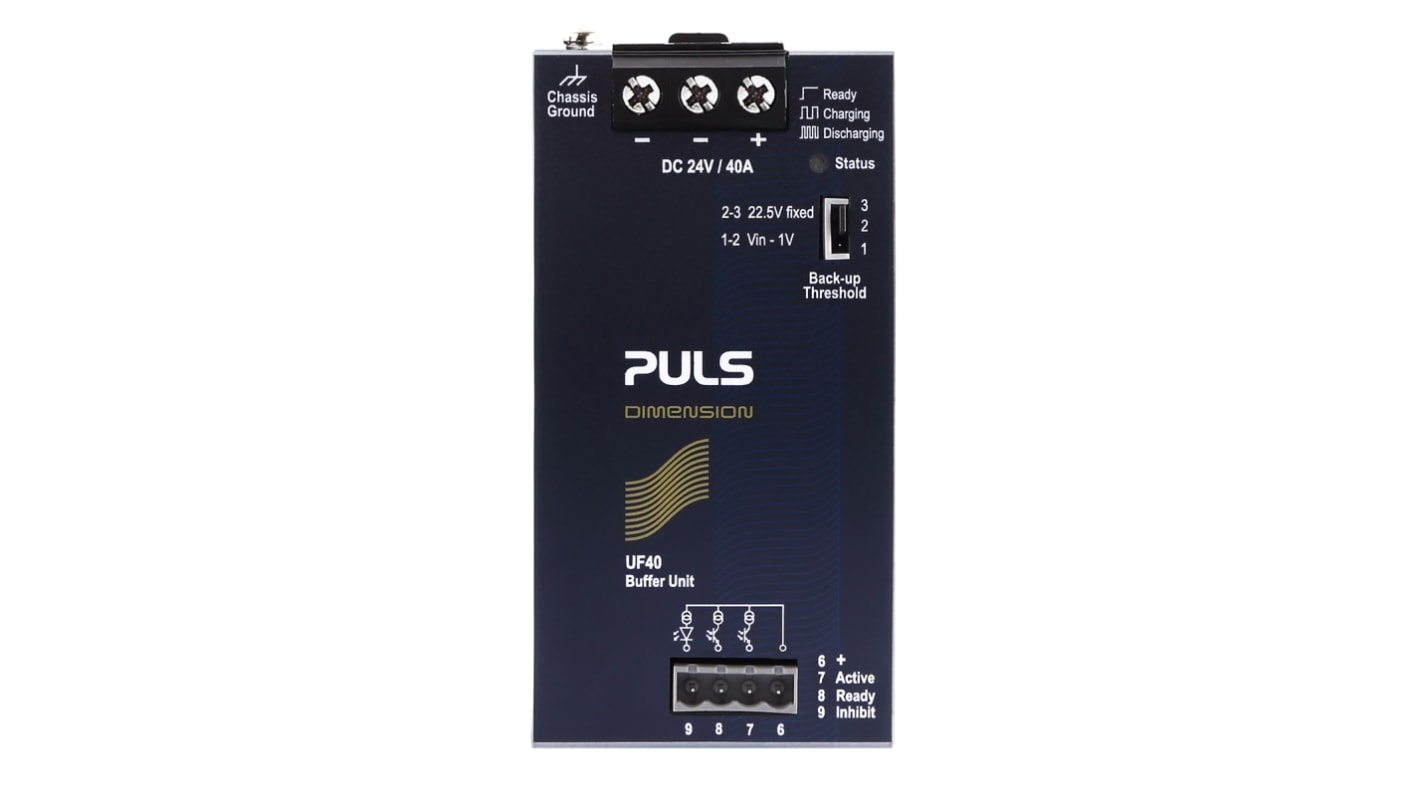

Buffer Module
The UF40 buffer module from Puls is a supplementary device designed for use with regulated DC 24 V power supplies. The buffer module utilises service-free electrolytic capacitors for storing energy, allowing usage at temperatures up to 70°C.
The module does not require control wiring as this can be added in parallel to the load circuit at any time.
Buffer modules can be connected in parallel to increase the output ampacity or the hold-up time.
The module does not require control wiring as this can be added in parallel to the load circuit at any time.
Buffer modules can be connected in parallel to increase the output ampacity or the hold-up time.
Features and Benefits
• Buffering with electrolytic capacitors instead of lead acid batteries
• Buffering of 24 V loads
• Minimum hold-up time 0.16 s at 40A
• Clear status indication
• Temperature range: -25 °C to 70 °C
Product Application Information
• To deliver DC power to bridge failures of the dc voltage supply system
• Extend the hold-up time after loss of the AC power
• Deliver extra short-term peak current above the current rating of the power supply
