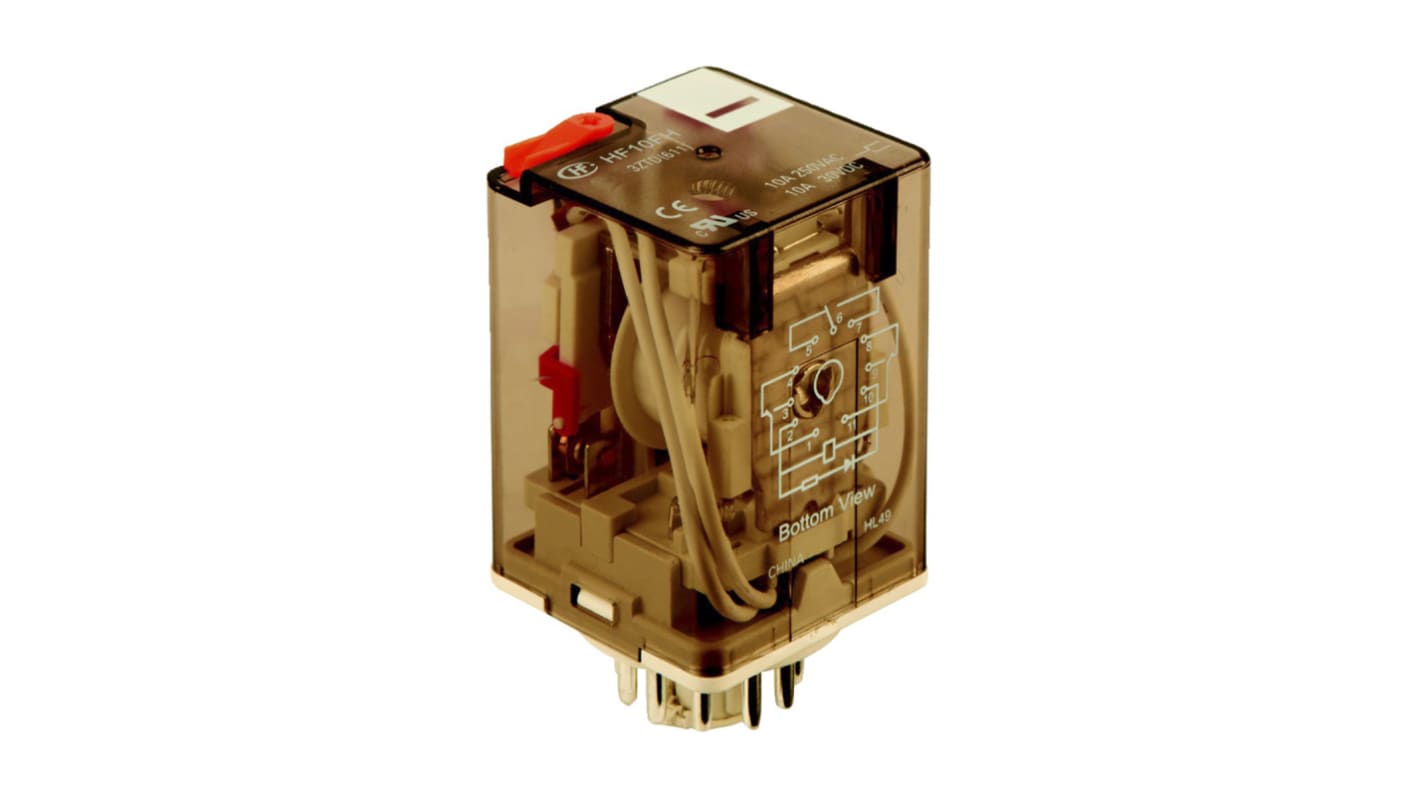

Hongfa Europe GMBH Plug In Power Relay, 120V ac Coil, 10A Switching Current, 3PDT

RS Stock No.:: 923-2590
Mfr. Part No.:: HF10FH120D3ZDT
Brand:: Hongfa Europe GMBH

Hongfa Europe GMBH Plug In Power Relay, 120V ac Coil, 10A Switching Current, 3PDT

11 In stock - FREE next working day delivery available

Added

Price Each

£11.82

(exc. VAT)

£14.18

(inc. VAT)

Units	Per unit
1 +	£11.82

RS Stock No.:: 923-2590
Mfr. Part No.:: HF10FH120D3ZDT
Brand:: Hongfa Europe GMBH

Technical Reference

Datasheet

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

HF10FH Miniature High Power Relays

HongFa HF10FH series miniature high power relays. The HF10FH range is available with industry standard 8 or 11 round terminals.

10 A switching capability
Long endurance
Industry standard terminals
RoHS compliant

Specifications

Attribute	Value
Coil Voltage	120V ac
Contact Configuration	3PDT
Mounting Type	Plug In
Switching Current	10A
Number of Poles	3
Latching	No
Terminal Type	Plug In
Maximum Switching Voltage AC	250V
Maximum Switching Voltage DC	30V dc
Length	35.5mm
Coil Resistance	1600Ω
Coil Power	2.7W
Isolation Coil To Contact	2.5kV ac
Maximum Operating Temperature	+55°C
Minimum Operating Temperature	-40°C
Standards Met	cULus File No. 134517 Recognized
Contact Material	Silver Alloy
Height	55.3mm
Depth	35.5mm
Life	100000 (Electrical) operations, 10000000 (Mechanical) operations
Maximum Switching Power AC	2.5 kVA
Maximum Switching Power DC	300 W
Application	Industrial
