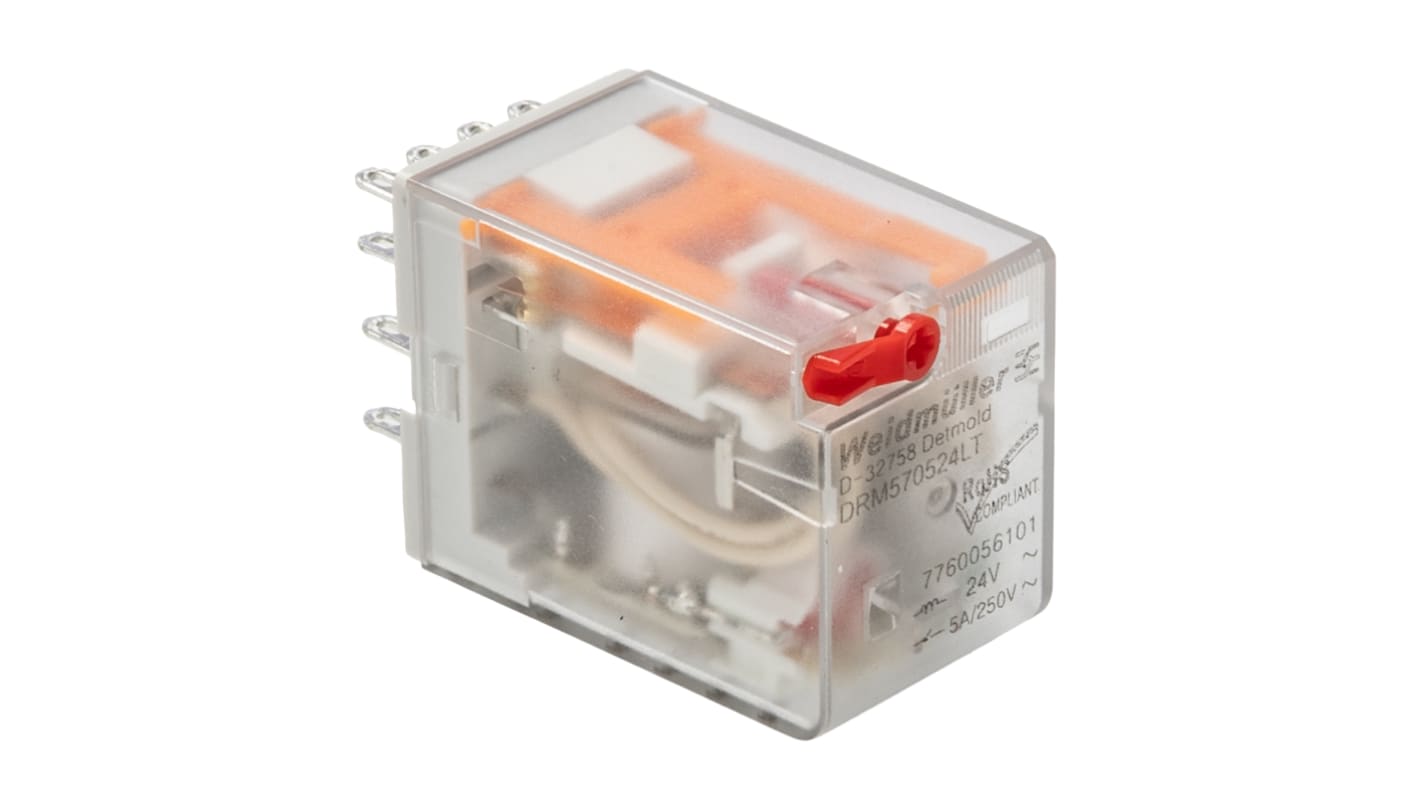

Weidmuller Panel Mount Power Relay, 24V ac Coil, 4PDT
- RS Stock No.:
- 892-8919
- Mfr. Part No.:
- 7760056101
- Brand:
- Weidmüller
Bulk discount available
Subtotal (1 unit)*
£8.13
(exc. VAT)
£9.76
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 73 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
- Plus 100 unit(s) shipping from 06 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £8.13 |
| 5 - 9 | £7.87 |
| 10 + | £7.55 |
*price indicative
- RS Stock No.:
- 892-8919
- Mfr. Part No.:
- 7760056101
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Weidmüller | |
| Coil Voltage | 24V ac | |
| Contact Configuration | 4PDT | |
| Mounting Type | Panel Mount | |
| Number of Poles | 4 | |
| Series | DRM | |
| Terminal Type | Plug In | |
| Maximum Switching Voltage AC | 250V | |
| Length | 21.5mm | |
| Coil Resistance | 160 Ω | |
| Maximum Operating Temperature | +55°C | |
| Minimum Operating Temperature | -40°C | |
| Standards Met | cURus | |
| Depth | 36mm | |
| Contact Material | Silver Alloy | |
| Height | 28mm | |
| Life | 20000000 Cycles | |
| Width | 21.5mm | |
| Dimensions | 21.5 x 36 x 28mm | |
Select all | ||
|---|---|---|
Brand Weidmüller | ||
Coil Voltage 24V ac | ||
Contact Configuration 4PDT | ||
Mounting Type Panel Mount | ||
Number of Poles 4 | ||
Series DRM | ||
Terminal Type Plug In | ||
Maximum Switching Voltage AC 250V | ||
Length 21.5mm | ||
Coil Resistance 160 Ω | ||
Maximum Operating Temperature +55°C | ||
Minimum Operating Temperature -40°C | ||
Standards Met cURus | ||
Depth 36mm | ||
Contact Material Silver Alloy | ||
Height 28mm | ||
Life 20000000 Cycles | ||
Width 21.5mm | ||
Dimensions 21.5 x 36 x 28mm | ||
- COO (Country of Origin):
- CN
Weidmuller DRM Series Power Relay, Silver Alloy Contact, 21.5 x 36 x 28 mm - 7760056101
This Weidmuller power relay with a 4PDT contact configuration belongs to the DRM Series. It provides reliable performance and precision for your electrical applications.
Features & Benefits
• Silver alloy material, enhancing durability and conductivity
• 24 V AC, ensuring compatibility with standard power sources
• Compact design that makes it ideal for space-saving installations
• Panel mounting style, easy to integrate into existing systems
• General purpose relay, versatile for various applications
• 24 V AC, ensuring compatibility with standard power sources
• Compact design that makes it ideal for space-saving installations
• Panel mounting style, easy to integrate into existing systems
• General purpose relay, versatile for various applications
Applications
• Suitable for control systems in industrial automation
• Used for power distribution and control panels
• Ideal for HVAC systems and building automation
• Used for power distribution and control panels
• Ideal for HVAC systems and building automation
Can it handle high voltage applications?
Yes, it is designed to switch up to 250 V AC.
Will it fit in standard electrical enclosures?
The compact design of this relay allows for easy mounting in standard panels.
Is it suitable for both AC and DC applications?
The relay is specifically designed for AC applications, providing reliable performance.
