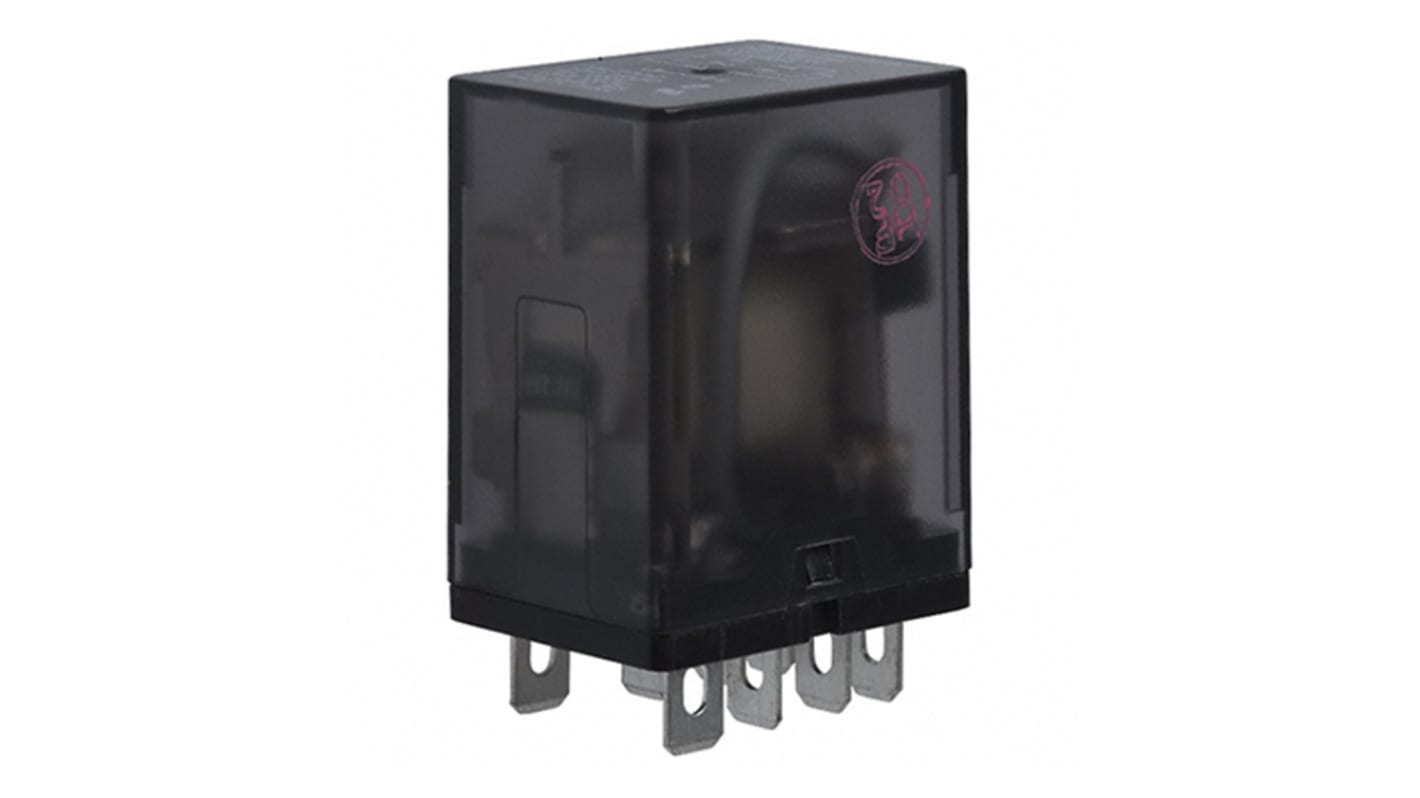

TE Connectivity Plug In Power Relay, 240V ac Coil, 15A Switching Current, DPDT
- RS Stock No.:
- 863-9697
- Mfr. Part No.:
- K10P-11A15-240
- Brand:
- TE Connectivity
Stock information currently inaccessible
- RS Stock No.:
- 863-9697
- Mfr. Part No.:
- K10P-11A15-240
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 240V ac | |
| Contact Configuration | DPDT | |
| Mounting Type | Plug In | |
| Switching Current | 15A | |
| Number of Poles | 2 | |
| Latching | No | |
| Terminal Type | Plug In | |
| Maximum Switching Voltage AC | 277V | |
| Maximum Switching Voltage DC | 30V | |
| Length | 28.17mm | |
| Coil Resistance | 12000Ω | |
| Coil Power | 1.5W | |
| Minimum Operating Temperature | -45°C | |
| Life | 100000 (Electrical) Operations, 10000000 (Mechanical) Operations | |
| Maximum Operating Temperature | +70°C | |
| Isolation Coil To Contact | 1.5kVrms | |
| Series | K10 | |
| Depth | 21.84mm | |
| Contact Material | Silver Alloy | |
| Height | 34.93mm | |
| Maximum Switching Power AC | 1/2 hp | |
| Application | General Purpose, Industrial | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 240V ac | ||
Contact Configuration DPDT | ||
Mounting Type Plug In | ||
Switching Current 15A | ||
Number of Poles 2 | ||
Latching No | ||
Terminal Type Plug In | ||
Maximum Switching Voltage AC 277V | ||
Maximum Switching Voltage DC 30V | ||
Length 28.17mm | ||
Coil Resistance 12000Ω | ||
Coil Power 1.5W | ||
Minimum Operating Temperature -45°C | ||
Life 100000 (Electrical) Operations, 10000000 (Mechanical) Operations | ||
Maximum Operating Temperature +70°C | ||
Isolation Coil To Contact 1.5kVrms | ||
Series K10 | ||
Depth 21.84mm | ||
Contact Material Silver Alloy | ||
Height 34.93mm | ||
Maximum Switching Power AC 1/2 hp | ||
Application General Purpose, Industrial | ||
- COO (Country of Origin):
- CN
