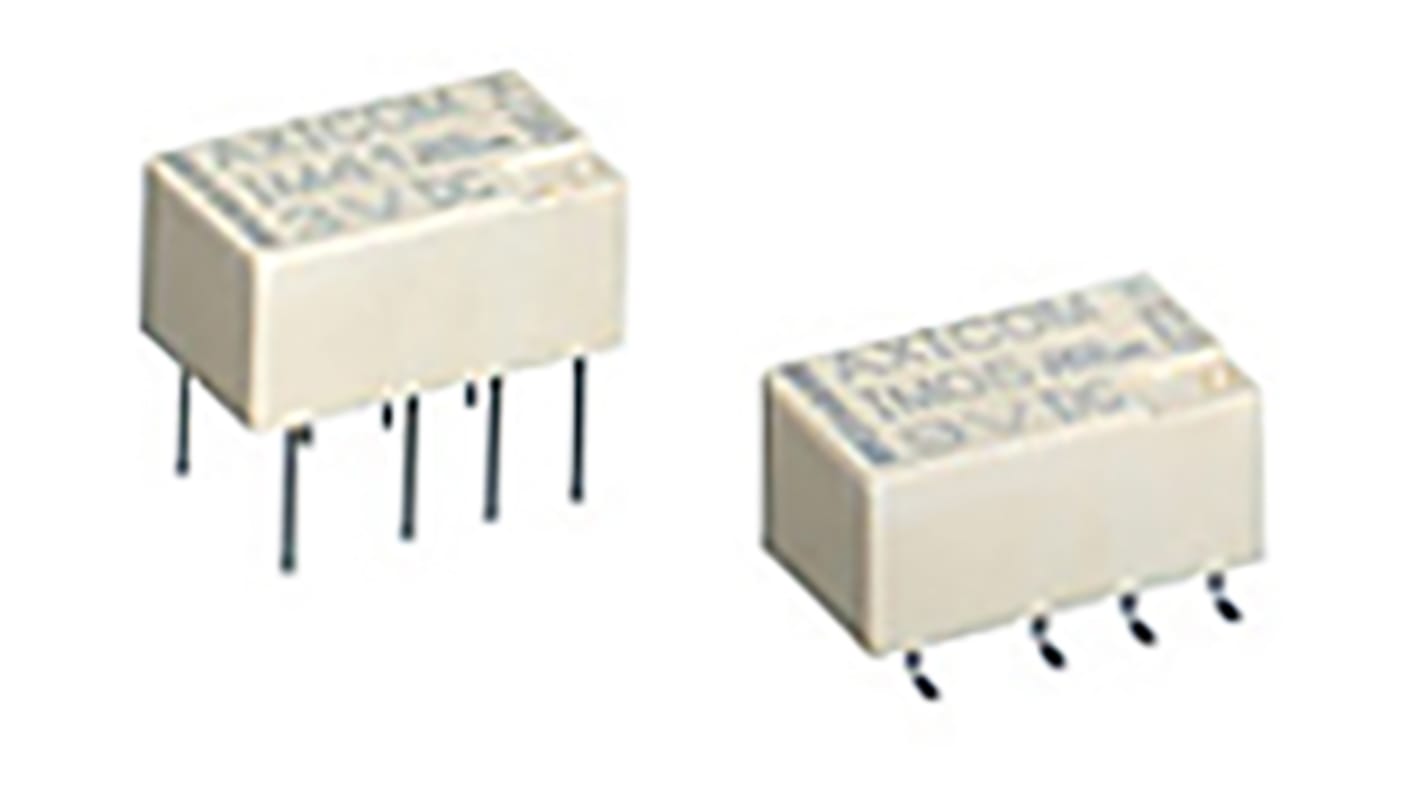

TE Connectivity Surface Mount Non-Latching Relay, 5V dc Coil, 2A Switching Current, DPDT
- RS Stock No.:
- 863-9369
- Mfr. Part No.:
- 1-1462037-4
- Brand:
- TE Connectivity
Discontinued
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (On a Reel of 1000)
£1.71
(exc. VAT)
£2.05
(inc. VAT)
- RS Stock No.:
- 863-9369
- Mfr. Part No.:
- 1-1462037-4
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 5V dc | |
| Contact Configuration | DPDT | |
| Mounting Type | Surface Mount | |
| Switching Current | 2A | |
| Terminal Type | PCB Pin | |
| Maximum Switching Voltage AC | 250V ac | |
| Maximum Switching Voltage DC | 220V | |
| Length | 10mm | |
| Coil Resistance | 178 Ω | |
| Coil Power | 140mW | |
| Life | 100000000 (Mechanical) Operations, 500000 (Electrical) Operations | |
| Depth | 6mm | |
| Contact Material | PdRu | |
| Series | IM | |
| Maximum Operating Temperature | +85°C | |
| Isolation Coil To Contact | 2.5kV rms | |
| Minimum Operating Temperature | -40°C | |
| Height | 5.65mm | |
| Maximum Switching Power AC | 62.5VA | |
| Maximum Switching Power DC | 60 W | |
| Application | Communications | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 5V dc | ||
Contact Configuration DPDT | ||
Mounting Type Surface Mount | ||
Switching Current 2A | ||
Terminal Type PCB Pin | ||
Maximum Switching Voltage AC 250V ac | ||
Maximum Switching Voltage DC 220V | ||
Length 10mm | ||
Coil Resistance 178 Ω | ||
Coil Power 140mW | ||
Life 100000000 (Mechanical) Operations, 500000 (Electrical) Operations | ||
Depth 6mm | ||
Contact Material PdRu | ||
Series IM | ||
Maximum Operating Temperature +85°C | ||
Isolation Coil To Contact 2.5kV rms | ||
Minimum Operating Temperature -40°C | ||
Height 5.65mm | ||
Maximum Switching Power AC 62.5VA | ||
Maximum Switching Power DC 60 W | ||
Application Communications | ||
IM Series PCB Relays
TE Connectivity IM series relays are a slim line low profile PCB relay that offers low coil power along with high dielectric and high surge capability. The IM series are available in a wide variety of choices that make them suitable for a range of applications, such as telecommunications, access and transmission equipment, optical network terminals, consumer electronics, test and measurement equipment and medical equipment.
Slim line 10x6mm, low profile 5.65mm
Low coil power consumption
High dielectric and surge capability up to 2500Vrms between open contacts
High mechanical shock resistance up to 300g functional
Low coil power consumption
High dielectric and surge capability up to 2500Vrms between open contacts
High mechanical shock resistance up to 300g functional
