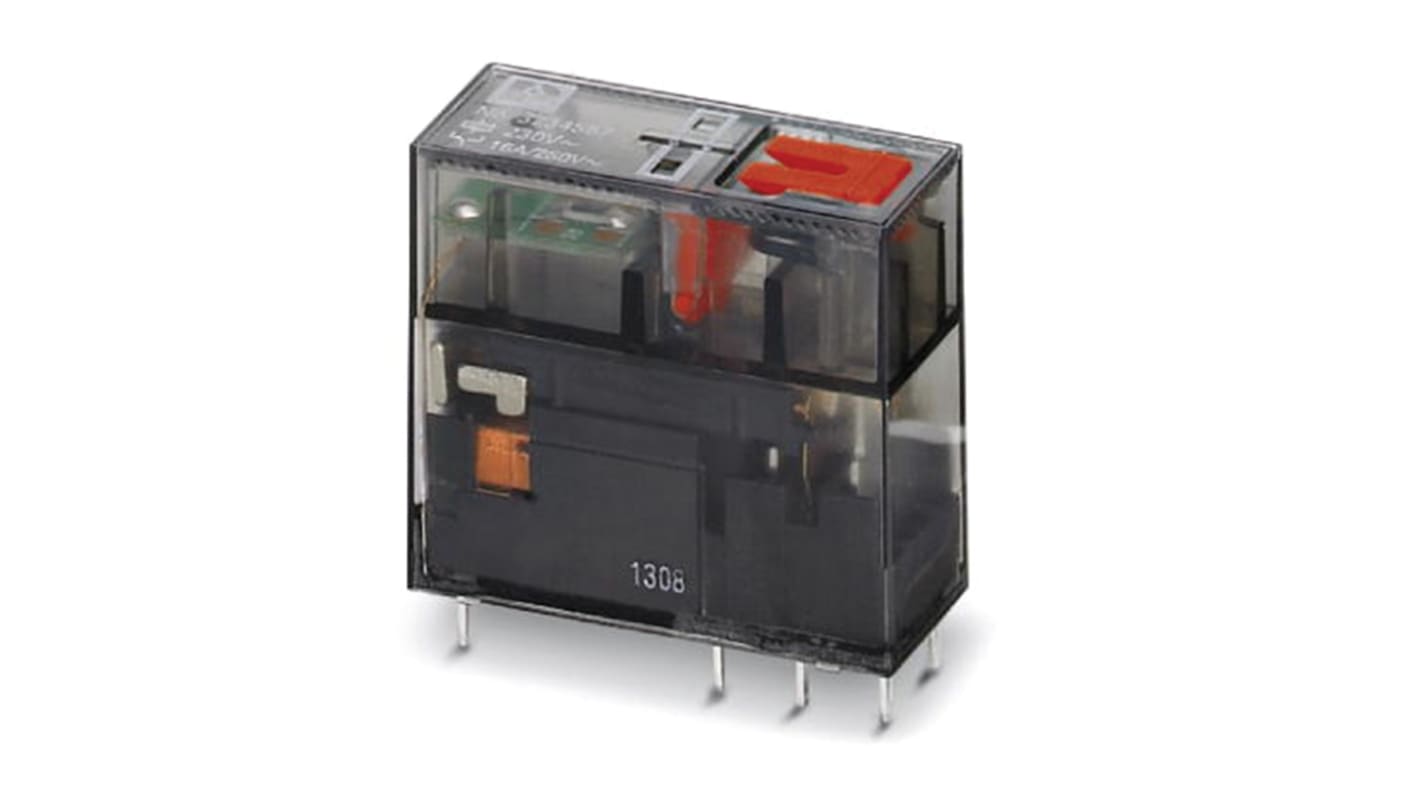

Phoenix Contact Plug In Power Relay, 230V ac Coil, SPDT
- RS Stock No.:
- 857-1323
- Mfr. Part No.:
- 2987930
- Brand:
- Phoenix Contact
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 857-1323
- Mfr. Part No.:
- 2987930
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Coil Voltage | 230V ac | |
| Contact Configuration | SPDT | |
| Mounting Type | Plug In | |
| Number of Poles | 1 | |
| Series | REL-MR-230AC/21HC AU/MS | |
| Latching | No | |
| Length | 12.7mm | |
| Contact Material | Gold Plated | |
| Height | 29mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +70°C | |
| Life | 5000000 cycles | |
| Depth | 25mm | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Coil Voltage 230V ac | ||
Contact Configuration SPDT | ||
Mounting Type Plug In | ||
Number of Poles 1 | ||
Series REL-MR-230AC/21HC AU/MS | ||
Latching No | ||
Length 12.7mm | ||
Contact Material Gold Plated | ||
Height 29mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +70°C | ||
Life 5000000 cycles | ||
Depth 25mm | ||
- COO (Country of Origin):
- CN
Plug-in miniature relay, with multi-layer contact with hard gold coating, 1 PDT, test button, mechanical switch position indicator, status LED, input voltage 230 V AC
With detectable manual operation
Mechanical switch position indicator
DC types with integrated freewheeling diode
Switching current of up to 16 A
Integrated status LED
