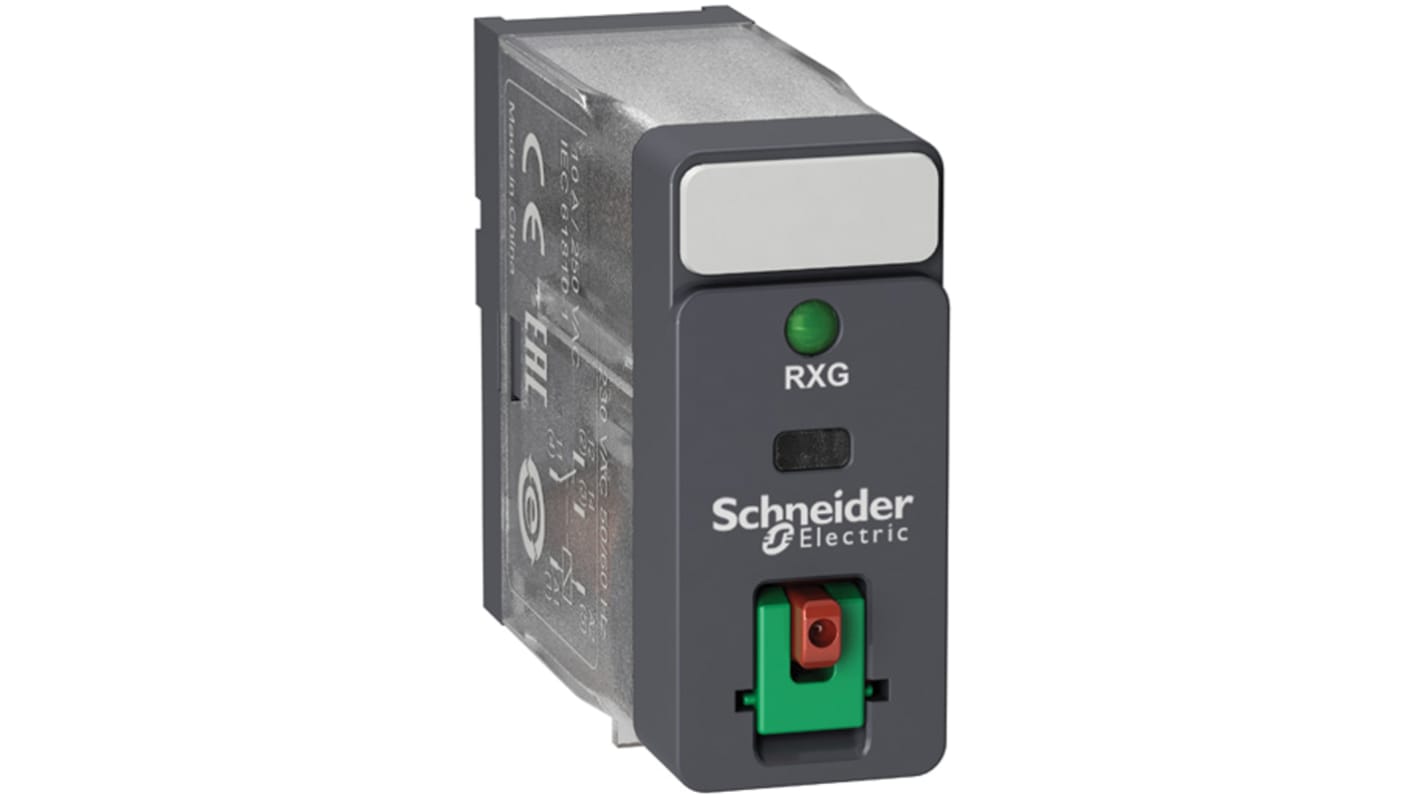

Schneider Electric Plug In Power Relay, 230V ac Coil, 10A Switching Current, SPDT
- RS Stock No.:
- 852-6828
- Mfr. Part No.:
- RXG12P7
- Brand:
- Schneider Electric
25 In stock - FREE next working day delivery available
Price Each
£10.54
(exc. VAT)
£12.65
(inc. VAT)
Units | Per unit |
|---|---|
| 1 - 4 | £10.54 |
| 5 - 9 | £10.24 |
| 10 + | £9.79 |
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 852-6828
- Mfr. Part No.:
- RXG12P7
- Brand:
- Schneider Electric
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Zelio RXG Interface Relays
The Zelio RXG interface relay is widely used in PLC interface application for its reliable installation, easy
Test & maintenance, slim and spacing saving features.
Test & maintenance, slim and spacing saving features.
The RXG interface relay range consists of-
10 A relays with 1CO contact and 5 A relays with 2CO contacts.
Sockets with separate contact terminals with screw connector connection, 35mm DIN Rail mounting and panel mounting.
Protection modules (diode, diode + LED, RC circuit or varistor+ LED) common to all RXG and RSB sockets.
A plastic maintaining clamp is supplied together for all RXG sockets.
Clip-in legends for all RXG and RSB sockets.
10 A relays with 1CO contact and 5 A relays with 2CO contacts.
Sockets with separate contact terminals with screw connector connection, 35mm DIN Rail mounting and panel mounting.
Protection modules (diode, diode + LED, RC circuit or varistor+ LED) common to all RXG and RSB sockets.
A plastic maintaining clamp is supplied together for all RXG sockets.
Clip-in legends for all RXG and RSB sockets.
Specifications
Attribute | Value |
|---|---|
| Coil Voltage | 230V ac |
| Contact Configuration | SPDT |
| Mounting Type | Plug In |
| Switching Current | 10A |
| Number of Poles | 1 |
| Latching | No |
| Terminal Type | Plug In |
| Maximum Switching Voltage AC | 250V |
| Maximum Switching Voltage DC | 30V dc |
| Length | 13mm |
| Coil Resistance | 23500Ω |
| Coil Power | 820mW |
| Contact Material | Silver Alloy |
| Life | 100000 (Electrical) cycles, 10000000 (Mechanical) cycles |
| Height | 37.1mm |
| Depth | 30.6mm |
| Isolation Coil To Contact | 5kV ac |
| Minimum Operating Temperature | -40°C |
| Better World Verification | Green Premium |
| Better World Product | Yes |
| Series | Harmony Relay RXG |
| Maximum Operating Temperature | +70°C |
| Maximum Switching Power DC | 300 W |
| Maximum Switching Power AC | 2.5 kVA |
| Application | Interface |
