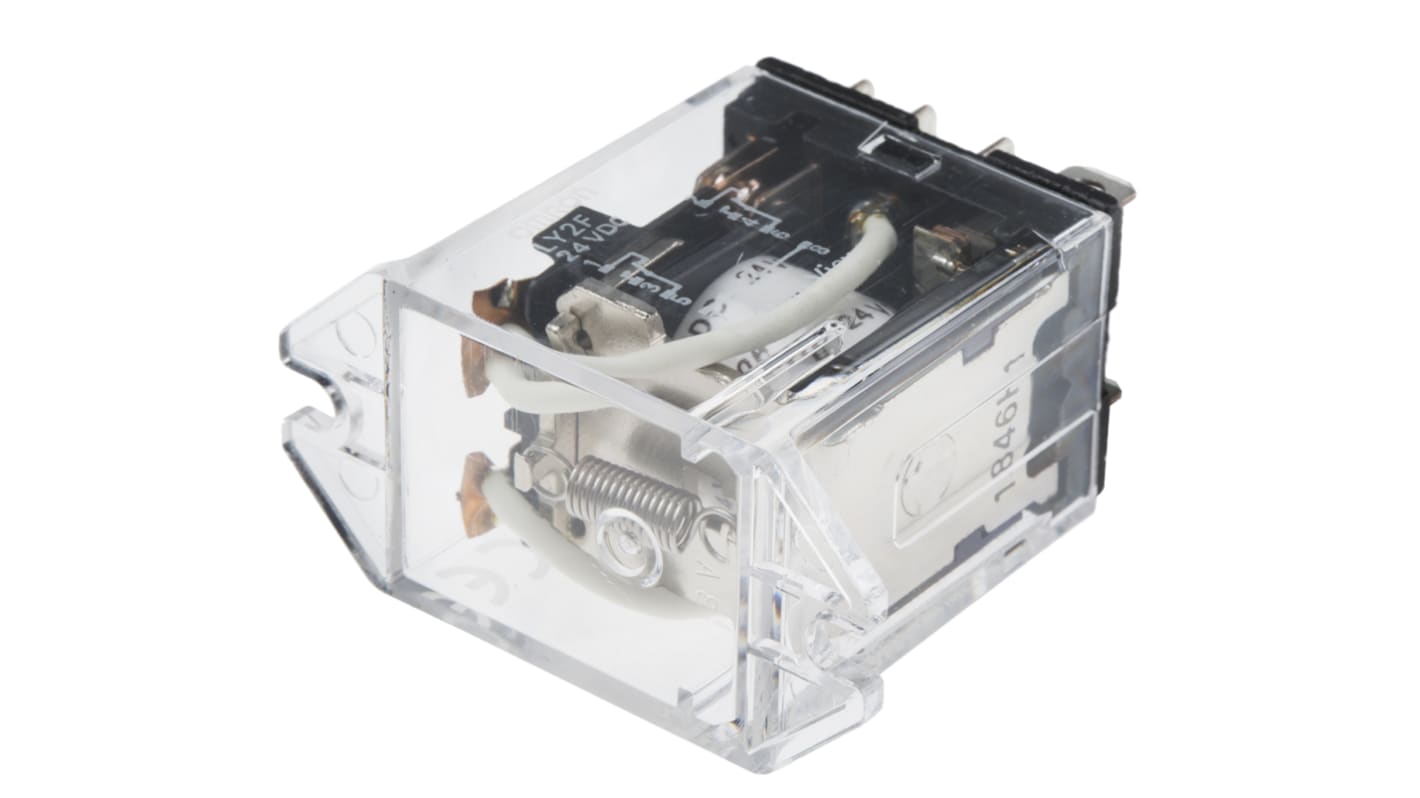

Omron Plug In Power Relay, 24V dc Coil, 10A Switching Current, DPDT

View all Power Relays
Bulk discount available

Subtotal (1 unit)*

£10.85

(exc. VAT)

£13.02

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 7 unit(s) ready to ship
  • Plus 9 unit(s) ready to ship from another location
  • Plus 26 unit(s) shipping from 24 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£10.85
5 - 9£10.51
10 +£10.05

*price indicative

RS Stock No.:
828-7306
Mfr. Part No.:
LY2F 24VDC
Brand:
Omron
Find similar products by selecting one or more attributes.
Select all

Brand

Omron

Coil Voltage

24V dc

Contact Configuration

DPDT

Mounting Type

Plug In

Switching Current

10A

Number of Poles

2

Latching

No

Series

LY2F

Terminal Type

PCB Pin

Maximum Switching Voltage AC

250V ac

Maximum Switching Voltage DC

125V dc

Maximum Switching Current AC

10 A

Maximum Switching Current DC

10 A

Length

22.5mm

Coil Resistance

650Ω

Coil Power

900mW

Life

100000000 (Mechanical) Operations, 500000 (Electrical) Operations

Height

44mm

Standards Met

CE, CSA

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

+55°C

Isolation Coil To Contact

2kV ac

Depth

35.5mm

Contact Material

Silver Alloy

Maximum Switching Power AC

1.1 kVA

Maximum Switching Power DC

240 W

Application

General Purpose, Power

COO (Country of Origin):
ID

Omron LY2F Series Power Relay, 24V DC Coil Voltage, 10A Switching Current - LY2F DC24


This power relay is designed for versatile automation applications. The DPDT configuration allows for efficient control of multiple functions, featuring a coil voltage of 24V DC. Compact dimensions of 22.5mm in length, 35.5mm in depth, and 44mm in height make it suitable for various installations.

Features & Benefits


• Supports a maximum switching current of 10A
• Excellent isolation between coil and contact at 2kV AC
• Environmentally adaptable with an operating temperature range of -25°C to +55°C
• Complies with multiple international safety standards

Applications


• Utilised in general-purpose power switching for various equipment
• Effective in industrial automation systems for reliable control
• Suitable for powering electrical appliances in commercial settings
• Ideal for control systems requiring digital and high-voltage functionalities

What are the main electrical specifications for this relay?


It has a coil voltage of 24V DC and can handle maximum switching voltages of 250V AC and 125V DC. The maximum switching power reaches 1.1kVA for AC and 240W for DC applications, ensuring it meets a wide range of operational needs.

How does the relay ensure durability in high-demand environments?


The relay can withstand high operational demands, boasting a mechanical life of up to 100 million operations and an electrical life of 500,000 operations, making it highly reliable in automation environments.

What terminal types are available for installation?


It features PCB pin terminals, which facilitate easy mounting and integration into existing circuits, enhancing its usability in various projects.
