Omron Plug In Power Relay, 24V dc Coil, 10A Switching Current, DPDT

RS Stock No.:: 828-7303
Mfr. Part No.:: LY2I4N 24VDC
Brand:: Omron

Omron Plug In Power Relay, 24V dc Coil, 10A Switching Current, DPDT

Bulk discount available

Subtotal (1 unit)*

£19.21

(exc. VAT)

£23.05

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

52 unit(s) ready to ship
Plus 24 unit(s) ready to ship from another location
Plus 43 unit(s) shipping from 18 November 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	£19.21
5 - 9	£18.64
10 +	£17.82

*price indicative

RS Stock No.:: 828-7303
Mfr. Part No.:: LY2I4N 24VDC
Brand:: Omron

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Omron
	Coil Voltage	24V dc
	Contact Configuration	DPDT
	Mounting Type	Plug In
	Switching Current	10A
	Number of Poles	2
	Latching	No
	Series	LY2N
	Terminal Type	PCB Pin
	Maximum Switching Voltage AC	250V ac
	Maximum Switching Voltage DC	125V dc
	Length	21.5mm
	Coil Resistance	650Ω
	Coil Power	900mW
	Depth	36mm
	Isolation Coil To Contact	2kV ac
	Maximum Operating Temperature	+55°C
	Standards Met	CE
	Contact Material	Silver Alloy
	Height	28mm
	Minimum Operating Temperature	-25°C
	Life	100000000 (Mechanical) Operations, 500000 (Electrical) Operations
	Maximum Switching Power AC	1.1 kVA
	Maximum Switching Power DC	240 W
	Application	General Purpose, Power

	Select all
	Brand Omron
	Coil Voltage 24V dc
	Contact Configuration DPDT
	Mounting Type Plug In
	Switching Current 10A
	Number of Poles 2
	Latching No
	Series LY2N
	Terminal Type PCB Pin
	Maximum Switching Voltage AC 250V ac
	Maximum Switching Voltage DC 125V dc
	Length 21.5mm
	Coil Resistance 650Ω
	Coil Power 900mW
	Depth 36mm
	Isolation Coil To Contact 2kV ac
	Maximum Operating Temperature +55°C
	Standards Met CE
	Contact Material Silver Alloy
	Height 28mm
	Minimum Operating Temperature -25°C
	Life 100000000 (Mechanical) Operations, 500000 (Electrical) Operations
	Maximum Switching Power AC 1.1 kVA
	Maximum Switching Power DC 240 W
	Application General Purpose, Power

COO (Country of Origin):: ID

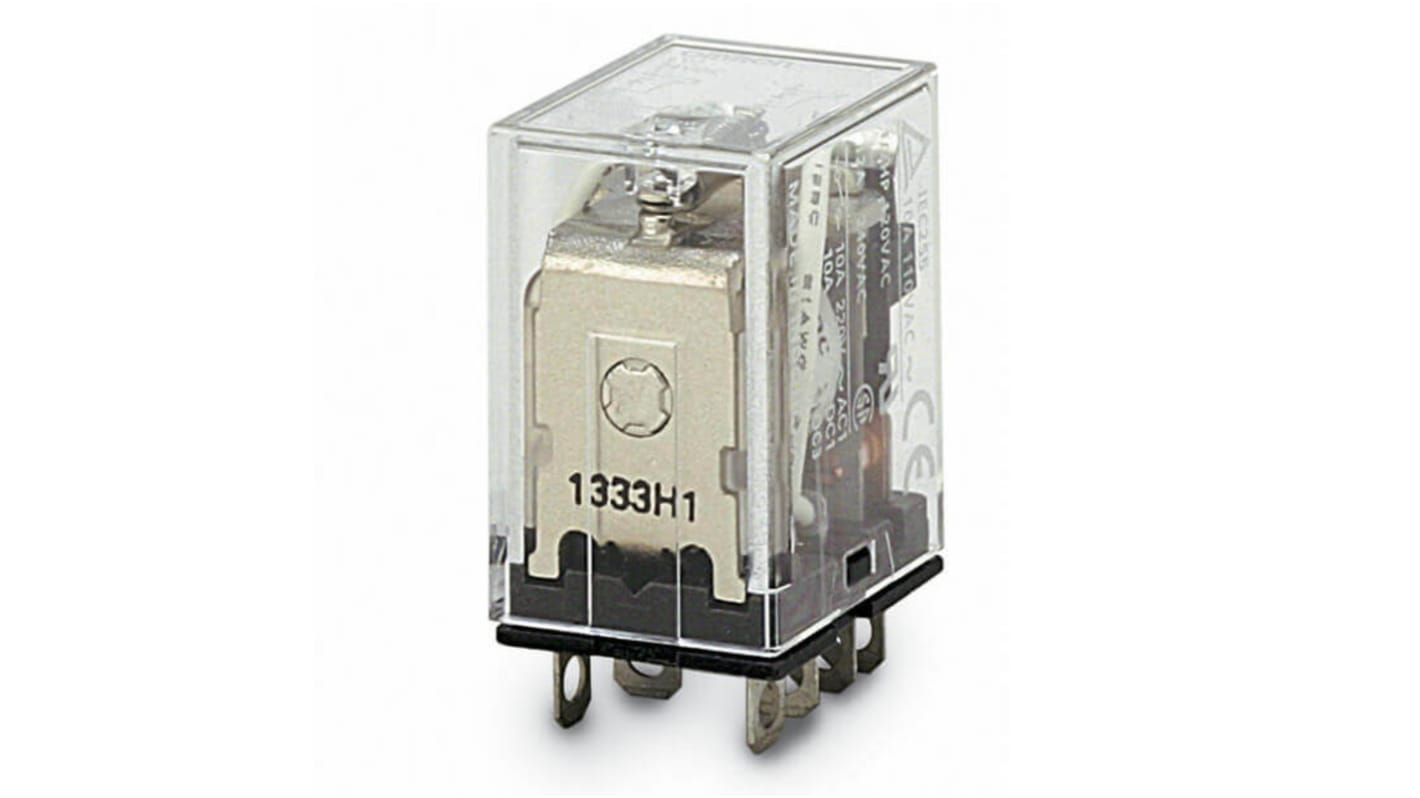

Omron LY2N Series Power Relay, Plug-in Mounting, DPDT - LY2I4N DC24

This power relay by Omron provides reliable power switching for various applications. It is designed with a convenient plug-in type for easy installation and use. Featuring a DPDT contact configuration, this relay is ideal for general purpose, power applications. With a coil voltage of 24V DC, this relay ensures efficient control and operation.

Features & Benefits

• Plug-in type for easy installation
• DPDT contact configuration for versatile applications
• Suitable for general purpose, power applications
• Reliable silver alloy contacts ensure durability
• Coil voltage of 24V dc for efficient control
• Isolation coil to contact up to 2 kV ac for safety
• Suitable for mounting type i.e it has PCB Pin
• High switching power for reliable performance

Applications

• Suitable for use in control systems
• Ideal for automation and industrial machinery
• Can be used in electrical panels and power distribution systems
• Essential for switching power circuits
• Recommended for high voltage applications

Can it be used for power distribution systems?

Yes, this power relay is ideal for use in power distribution systems.

Will it be suitable for high voltage applications?

Yes, this relay is designed for high voltage applications.

Is it easy to install?

Yes, this relay is plug-in type for easy installation and use.

Can it be used for automation applications?

Yes, it is suitable for automation and industrial machinery.

Does it ensure safety in electrical panels?

Yes, it is a reliable option for ensuring safety in electrical panels.
