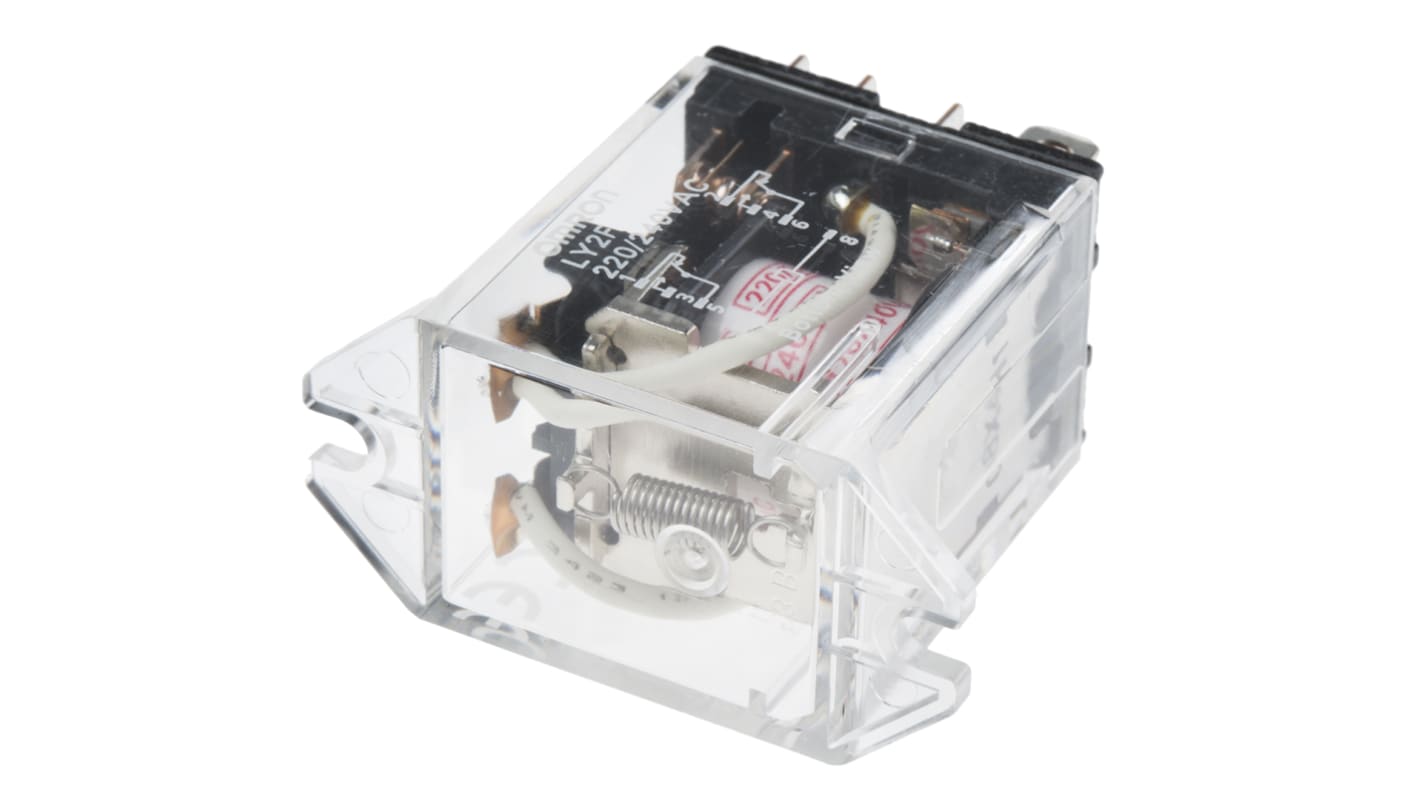

Omron Plug In Non-Latching Relay, 240V ac Coil, 10A Switching Current, DPDT
- RS Stock No.:
- 828-7299
- Mfr. Part No.:
- LY2F-AC220/240
- Brand:
- Omron
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£6.72
(exc. VAT)
£8.06
(inc. VAT)
- RS Stock No.:
- 828-7299
- Mfr. Part No.:
- LY2F-AC220/240
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Coil Voltage | 240V ac | |
| Contact Configuration | DPDT | |
| Mounting Type | Plug In | |
| Switching Current | 10A | |
| Terminal Type | PCB Pin | |
| Maximum Switching Voltage AC | 250V | |
| Maximum Switching Voltage DC | 125V | |
| Length | 22.5mm | |
| Coil Resistance | 18.79 kΩ | |
| Coil Power | 1.1W | |
| Isolation Coil To Contact | 2kV ac | |
| Height | 44mm | |
| Life | 500000 (Electrical) Operations, 50000000 (Mechanical) Operations | |
| Maximum Operating Temperature | +55°C | |
| Minimum Operating Temperature | -25°C | |
| Contact Material | Silver Alloy | |
| Depth | 35.5mm | |
| Maximum Switching Power DC | 240 W | |
| Maximum Switching Power AC | 1.1 kVA | |
| Application | General Purpose, Power | |
Select all | ||
|---|---|---|
Brand Omron | ||
Coil Voltage 240V ac | ||
Contact Configuration DPDT | ||
Mounting Type Plug In | ||
Switching Current 10A | ||
Terminal Type PCB Pin | ||
Maximum Switching Voltage AC 250V | ||
Maximum Switching Voltage DC 125V | ||
Length 22.5mm | ||
Coil Resistance 18.79 kΩ | ||
Coil Power 1.1W | ||
Isolation Coil To Contact 2kV ac | ||
Height 44mm | ||
Life 500000 (Electrical) Operations, 50000000 (Mechanical) Operations | ||
Maximum Operating Temperature +55°C | ||
Minimum Operating Temperature -25°C | ||
Contact Material Silver Alloy | ||
Depth 35.5mm | ||
Maximum Switching Power DC 240 W | ||
Maximum Switching Power AC 1.1 kVA | ||
Application General Purpose, Power | ||
- COO (Country of Origin):
- ID
LY Series
Withstand voltage 2000V coil to contact
Arc barriers to prevent flash-over between adjacent poles
Relay clips for DIN types available separately
Contact resistance: 50mΩ
Isolation coil to contact: 12kV
Operating temperature range: -25 to +55°C
Switching Voltage: 110Vac; 24Vdc
Contact material: AgCdO
Dimensions: H42.4mm x W28mm x D41.5mm
Arc barriers to prevent flash-over between adjacent poles
Relay clips for DIN types available separately
Contact resistance: 50mΩ
Isolation coil to contact: 12kV
Operating temperature range: -25 to +55°C
Switching Voltage: 110Vac; 24Vdc
Contact material: AgCdO
Dimensions: H42.4mm x W28mm x D41.5mm
Approvals
VDE, UL, CSA, TUV
