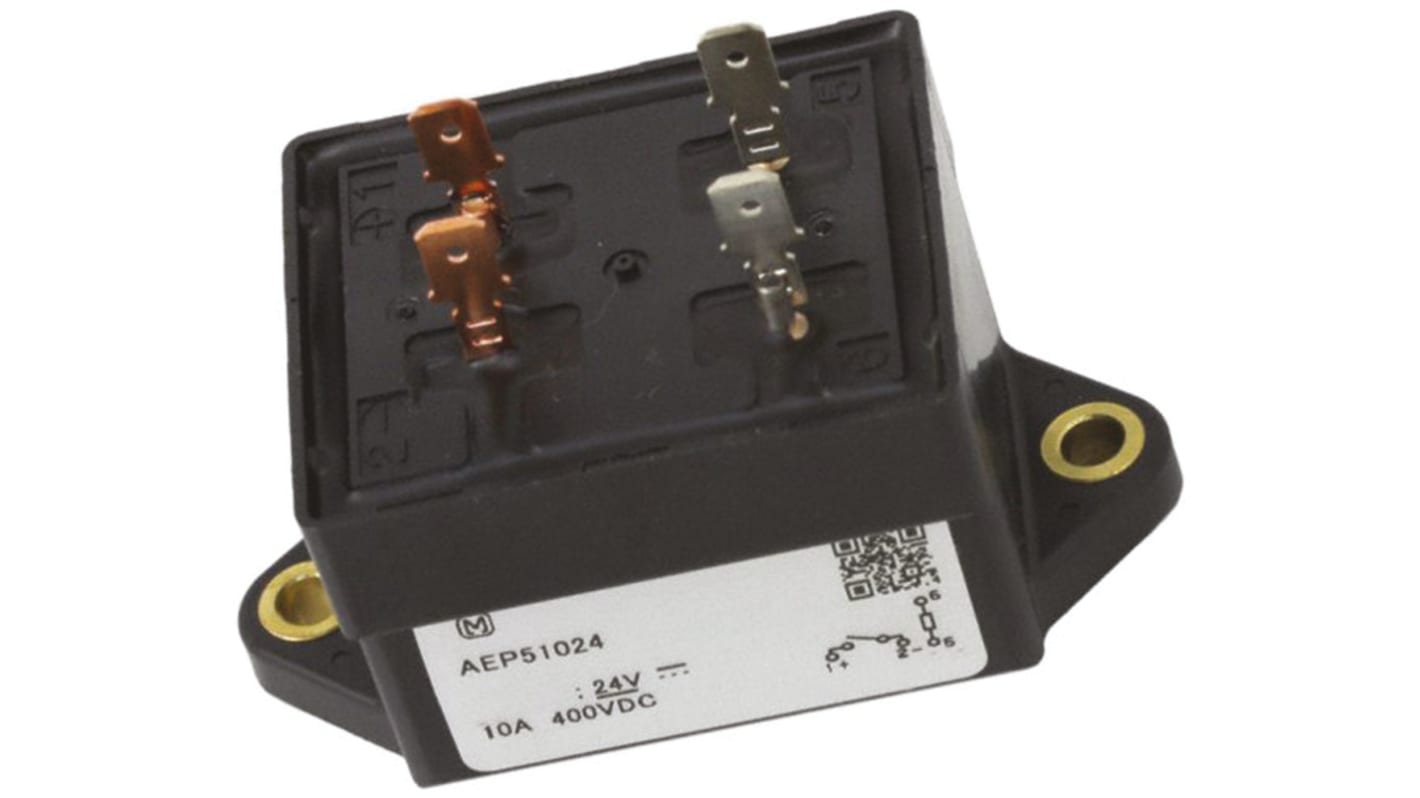

Panasonic Non-Latching Relay, 24V dc Coil, 10A Switching Current, SPST
- RS Stock No.:
- 811-3457
- Mfr. Part No.:
- AEP51024
- Brand:
- Panasonic
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 811-3457
- Mfr. Part No.:
- AEP51024
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Coil Voltage | 24V dc | |
| Contact Configuration | SPST | |
| Switching Current | 10A | |
| Terminal Type | Screw | |
| Maximum Switching Voltage DC | 400V | |
| Length | 45mm | |
| Coil Power | 1.24W | |
| Depth | 37.9mm | |
| Maximum Operating Temperature | +80°C | |
| Isolation Coil To Contact | 2.5kV rms | |
| Life | 75000 Operations | |
| Minimum Operating Temperature | -40°C | |
| Series | AEP | |
| Height | 31.7mm | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Coil Voltage 24V dc | ||
Contact Configuration SPST | ||
Switching Current 10A | ||
Terminal Type Screw | ||
Maximum Switching Voltage DC 400V | ||
Length 45mm | ||
Coil Power 1.24W | ||
Depth 37.9mm | ||
Maximum Operating Temperature +80°C | ||
Isolation Coil To Contact 2.5kV rms | ||
Life 75000 Operations | ||
Minimum Operating Temperature -40°C | ||
Series AEP | ||
Height 31.7mm | ||
- COO (Country of Origin):
- JP
AEP Series
These compact power relays offer a high voltage and current cut-off capacity in a compact package. These power relays also have a low operating sound, high contact reliability and high current control. Typical applications include cogeneration systems, battery inspection and testing equipment, construction machinery, automatic guided vehicles, welding equipment, inverter control, solar power generation systems and elevators.
High-voltage, 400V DC high-voltage switching cut off, high-current
Nominal switching capacity 80A 400Vdc (resistive load)
Compact & low operating sound
Contact resistance remains stable regardless of the ambient conditions
Nominal switching capacity 80A 400Vdc (resistive load)
Compact & low operating sound
Contact resistance remains stable regardless of the ambient conditions
