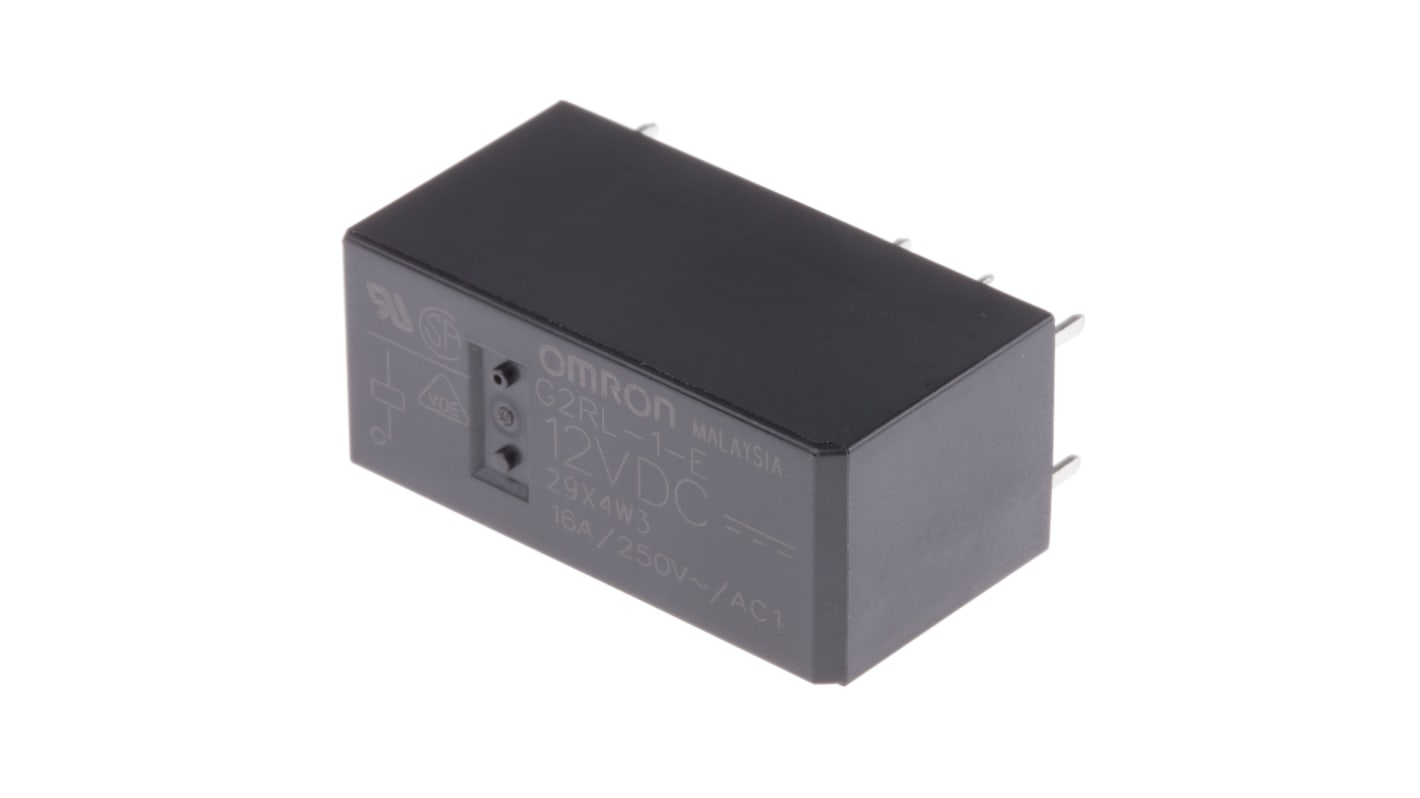

Omron PCB Mount Power Relay, 12V dc Coil, 16A Switching Current, SPDT
- RS Stock No.:
- 807-4539
- Mfr. Part No.:
- G2RL-1-E DC12BYOMB
- Brand:
- Omron
Bulk discount available
Subtotal (1 unit)*
£3.51
(exc. VAT)
£4.21
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- 18 left, ready to ship
- Plus 11 left, ready to ship from another location
Units | Per unit |
|---|---|
| 1 - 49 | £3.51 |
| 50 - 99 | £3.30 |
| 100 - 249 | £3.15 |
| 250 - 499 | £3.01 |
| 500 + | £2.87 |
*price indicative
- RS Stock No.:
- 807-4539
- Mfr. Part No.:
- G2RL-1-E DC12BYOMB
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Coil Voltage | 12V dc | |
| Contact Configuration | SPDT | |
| Mounting Type | PCB Mount | |
| Switching Current | 16A | |
| Number of Poles | 1 | |
| Latching | No | |
| Terminal Type | PCB Pin | |
| Maximum Switching Voltage AC | 400V ac | |
| Maximum Switching Voltage DC | 300V dc | |
| Length | 29mm | |
| Coil Resistance | 360Ω | |
| Coil Power | 400mW | |
| Contact Material | Silver Alloy | |
| Life | 20000000 (Mechanical) Operations, 30000 (Electrical) Operations | |
| Height | 15.7mm | |
| Depth | 12.7mm | |
| Series | G2RL | |
| Isolation Coil To Contact | 5kV ac | |
| Maximum Operating Temperature | +85°C | |
| Minimum Operating Temperature | -40°C | |
| Application | Domestic Appliances, Industrial Equipment | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Coil Voltage 12V dc | ||
Contact Configuration SPDT | ||
Mounting Type PCB Mount | ||
Switching Current 16A | ||
Number of Poles 1 | ||
Latching No | ||
Terminal Type PCB Pin | ||
Maximum Switching Voltage AC 400V ac | ||
Maximum Switching Voltage DC 300V dc | ||
Length 29mm | ||
Coil Resistance 360Ω | ||
Coil Power 400mW | ||
Contact Material Silver Alloy | ||
Life 20000000 (Mechanical) Operations, 30000 (Electrical) Operations | ||
Height 15.7mm | ||
Depth 12.7mm | ||
Series G2RL | ||
Isolation Coil To Contact 5kV ac | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature -40°C | ||
Application Domestic Appliances, Industrial Equipment | ||
G2RL Series
Low profile 15.7mm height (max.)
10mm creepage/clearance
Meets EN60335-1 requirements
Tracking resistance: CTI>250
H15.7, W12.7, D29mm
10mm creepage/clearance
Meets EN60335-1 requirements
Tracking resistance: CTI>250
H15.7, W12.7, D29mm
Approvals
UL recognised; CSA certified; VDE
