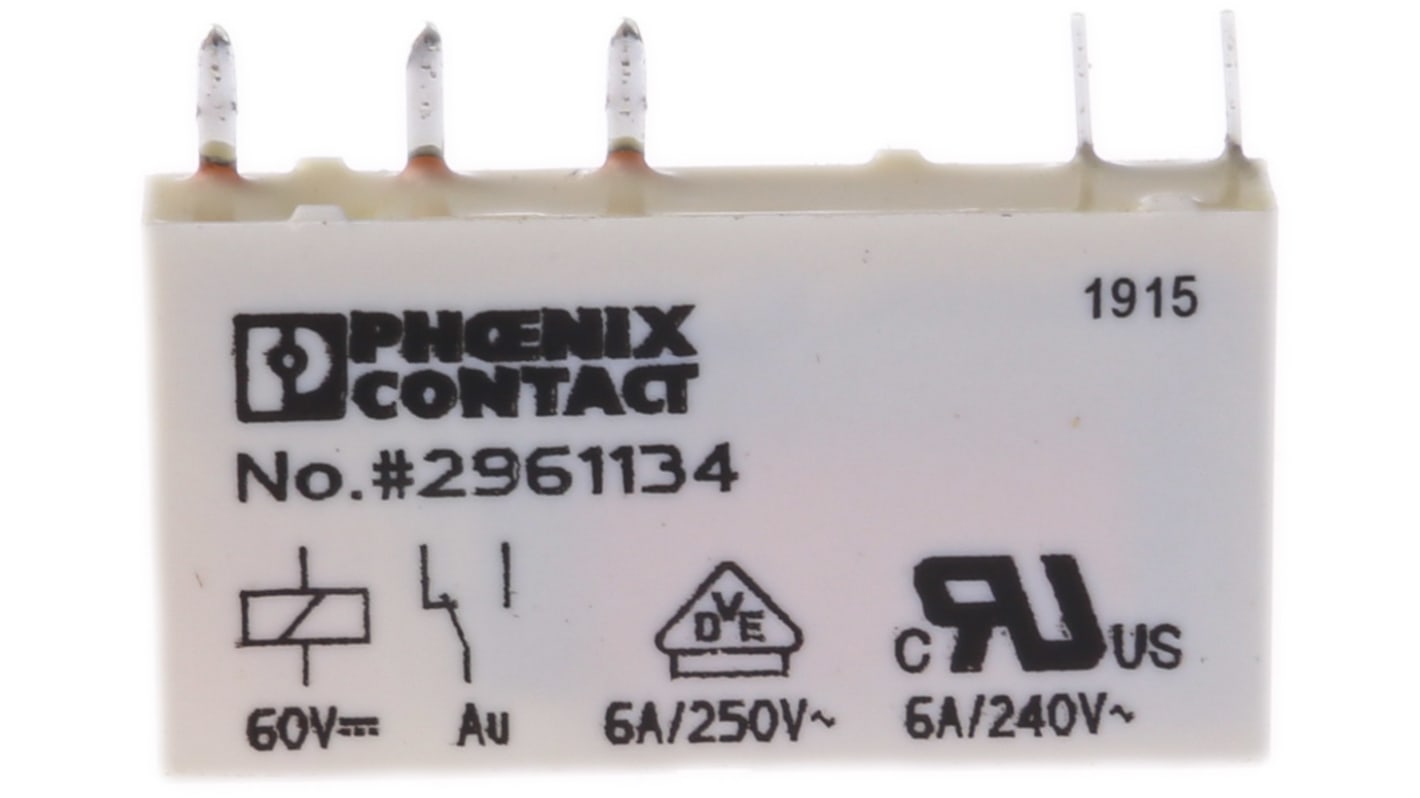

Phoenix Contact PCB Mount Power Relay, 60V dc Coil, 6A Switching Current, SPDT

RS Stock No.:: 801-8012
Mfr. Part No.:: 2961134
Brand:: Phoenix Contact

Phoenix Contact PCB Mount Power Relay, 60V dc Coil, 6A Switching Current, SPDT

9 In stock - FREE next working day delivery available

4 available from Europe for delivery within 2 working day(s).

Price Each

£22.07

(exc. VAT)

£26.48

(inc. VAT)

Units	Per unit
1 - 9	£22.07
10 - 49	£21.83
50 - 99	£20.88
100 +	£19.86

RS Stock No.:: 801-8012
Mfr. Part No.:: 2961134
Brand:: Phoenix Contact

Technical Reference

REL-MR- 60DC/21AU

Legislation and Compliance

COO (Country of Origin):: CZ

Product Details

Phoenix Contact REL-MR Series

REL-MR- 60DC/21AU

The REL-MR- 60DC/21AU SPDT (Single pole, double throw), plug-in miniature power relay has an input voltage of 60 Vdc and power contact. The non-latching relay is part of the REL-MR range and has been designed to be assembled in rows with zero spacing.

Features and Benefits

• Up to RT III protection meaning that the relay is capable of undergoing a washing process to remove any flush residue without leakage of flux or washing product.

• Operating temperature of -40°C to +85°C

• Safe isolation between coil and contact according to DIN EN 50178

• Power contacts up to 6 A

Typical Applications

The SPDT relay is a commonly used when there is a need to select between two power sources, swapping inputs or where you need two circuits going to one place.

Specifications

Attribute	Value
Coil Voltage	60V dc
Contact Configuration	SPDT
Mounting Type	PCB Mount
Switching Current	6A
Number of Poles	1
Terminal Type	PCB Pin
Length	5mm
Maximum Operating Temperature	+85°C
Series	REL-MR- 60DC/21AU
Contact Material	Silver Alloy
Depth	15mm
Height	28mm
Minimum Operating Temperature	-40°C
Dimensions	5 x 15 x 28mm
