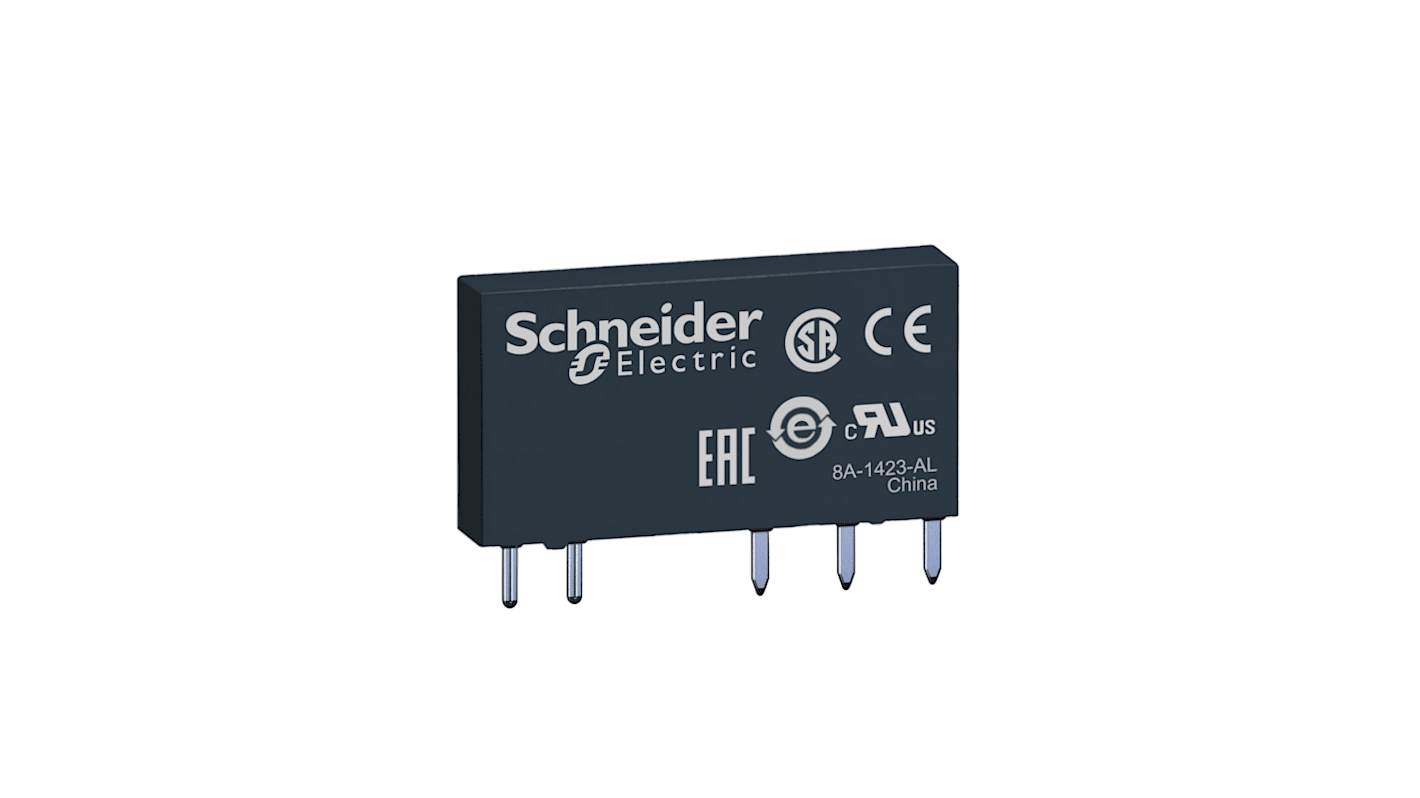

Schneider Electric PCB Power Relay, 60V dc Coil, 6A Switching Current, SPDT
- RS Stock No.:
- 179-9442
- Mfr. Part No.:
- RSL1AB4ND
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£11.55
(exc. VAT)
£13.86
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £11.55 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 179-9442
- Mfr. Part No.:
- RSL1AB4ND
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Coil Voltage | 60V dc | |
| Product Type | Power Relay | |
| Contact Configuration | SPDT | |
| Mount Type | PCB | |
| Series | Harmony Relay RSL | |
| Terminal Type | PCB Pin | |
| Switching Current | 6A | |
| Minimum Operating Temperature | -40°C | |
| Switching AC Voltage | 84V ac | |
| Switching DC Voltage | 84V dc | |
| Maximum Operating Temperature | 55°C | |
| Coil Resistance | 16.6kΩ | |
| Height | 28mm | |
| Length | 5mm | |
| Width | 11.3mm | |
| Standards/Approvals | RoHS | |
| Coil Power | 210mW | |
| Contact Material | Silver Alloy | |
| Better World Product | Yes | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Coil Voltage 60V dc | ||
Product Type Power Relay | ||
Contact Configuration SPDT | ||
Mount Type PCB | ||
Series Harmony Relay RSL | ||
Terminal Type PCB Pin | ||
Switching Current 6A | ||
Minimum Operating Temperature -40°C | ||
Switching AC Voltage 84V ac | ||
Switching DC Voltage 84V dc | ||
Maximum Operating Temperature 55°C | ||
Coil Resistance 16.6kΩ | ||
Height 28mm | ||
Length 5mm | ||
Width 11.3mm | ||
Standards/Approvals RoHS | ||
Coil Power 210mW | ||
Contact Material Silver Alloy | ||
Better World Product Yes | ||
A complete range of electromechanical relays including interface, miniature, and power relays from 1 CO to 4 CO contacts, up to 30 A.
Slim Interface Plug-In Relay - Zelio Rsl - 1 C/O Standard - 60 V Dc - 6 A
