- RS Stock No.:
- 800-2805
- Mfr. Part No.:
- 13.61.8.230.0000
- Brand:
- Finder
61 In stock - FREE next working day delivery available
2 available from Europe for delivery within 1 working day(s).
Added
Price Each
£36.21
(exc. VAT)
£43.45
(inc. VAT)
Units | Per unit |
1 + | £36.21 |
- RS Stock No.:
- 800-2805
- Mfr. Part No.:
- 13.61.8.230.0000
- Brand:
- Finder
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details

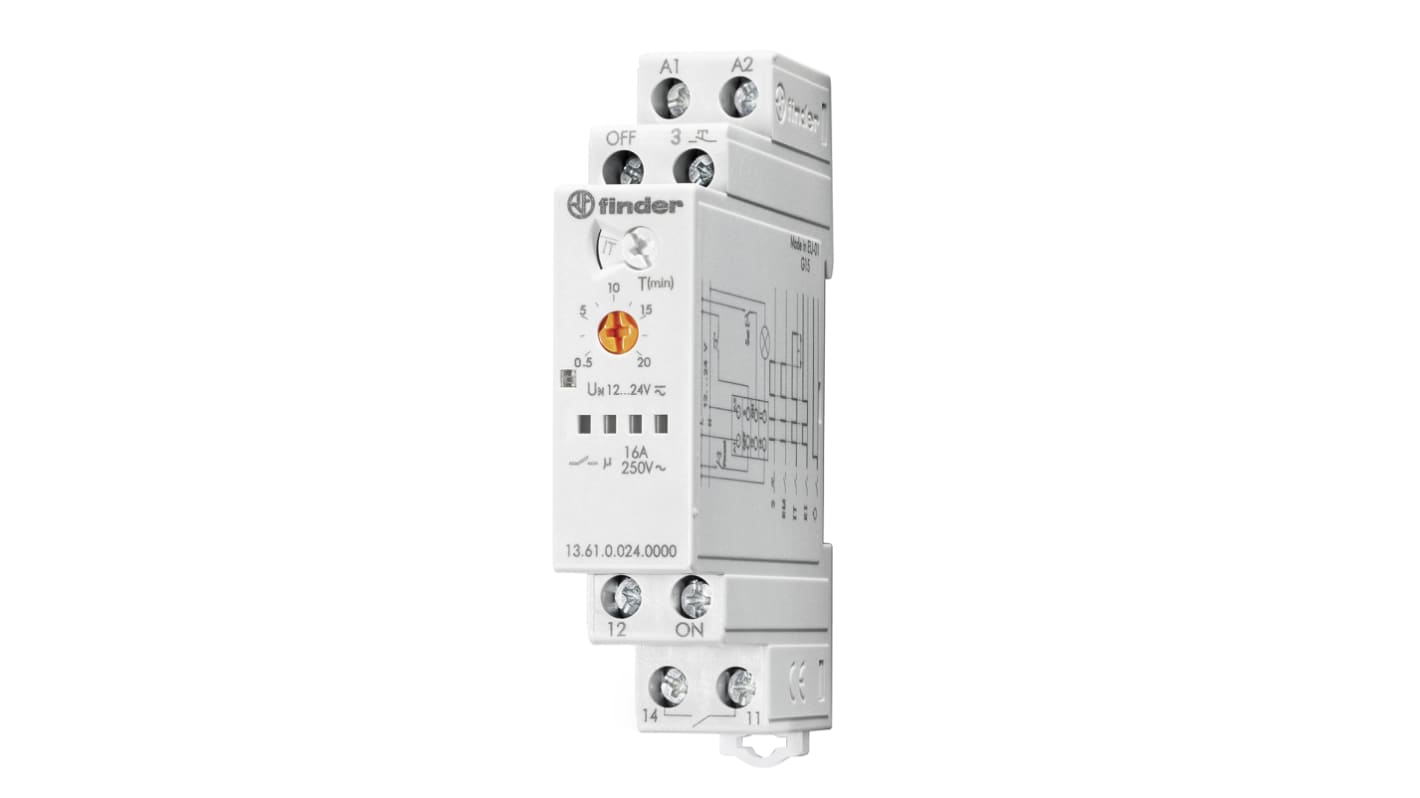

13.61 Series - Multifunction Step/Monostable Relays with Reset Command
Finder 13.61 Series multifunction step/monostable relay with reset command, rail mounted with 1 pole
Multifunction (Step, Timing step, Monostable, Light ON)
Reset feature, for centralised off command
Control input can be continuously applied
Longer mechanical and electrical life, and quieter than electromechanical step relays
Zero-crossing load switching
35 mm rail mount
Cadmium free contact material
Screw terminal
Reset feature, for centralised off command
Control input can be continuously applied
Longer mechanical and electrical life, and quieter than electromechanical step relays
Zero-crossing load switching
35 mm rail mount
Cadmium free contact material
Screw terminal
Specifications
Attribute | Value |
---|---|
Coil Voltage | 230V ac |
Contact Configuration | SPST |
Mounting Type | DIN Rail |
Switching Current | 16A |
Number of Poles | 1 |
Latching | No |
Terminal Type | Screw |
Maximum Switching Voltage AC | 400V ac |
Length | 17.5mm |
Coil Power | 1W |
Height | 88.8mm |
Depth | 60.8mm |
Maximum Operating Temperature | +60°C |
Isolation Coil To Contact | 2kV |
Series | 13 Series |
Minimum Operating Temperature | -10°C |
Contact Material | Silver Alloy |
Life | 100000 (Electrical) cycles |
Maximum Switching Power AC | 4 kVA |
Application | High Irush Current / Latching/Non Latching/Timed |
