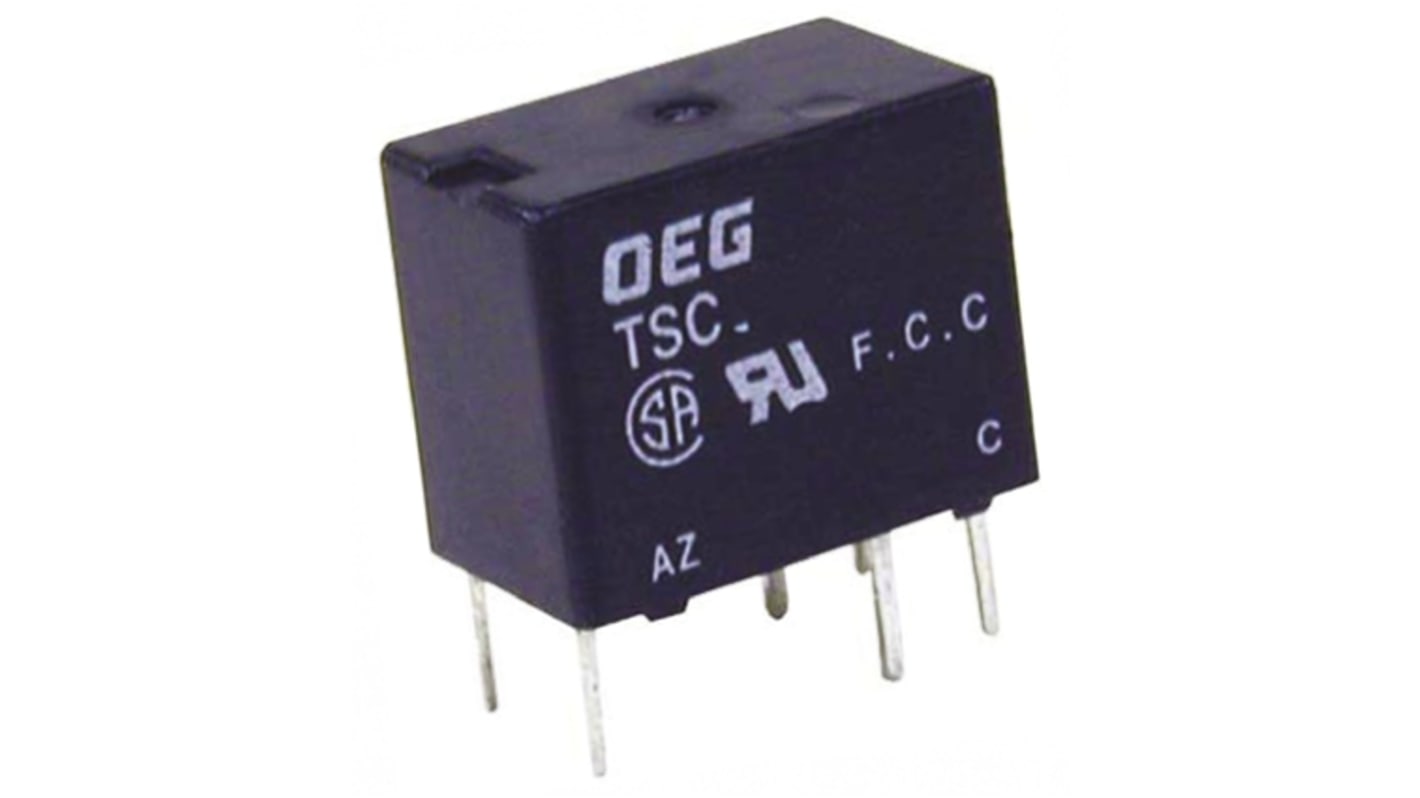

TE Connectivity PCB Mount Non-Latching Relay, 12V dc Coil, 1A Switching Current, SPDT
- RS Stock No.:
- 783-0340
- Mfr. Part No.:
- TSC-112D3H,000
- Brand:
- TE Connectivity
Discontinued
- RS Stock No.:
- 783-0340
- Mfr. Part No.:
- TSC-112D3H,000
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 12V dc | |
| Contact Configuration | SPDT | |
| Mounting Type | PCB Mount | |
| Switching Current | 1A | |
| Number of Poles | 1 | |
| Terminal Type | PCB Pin | |
| Series | TSC | |
| Application | General Purpose | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 12V dc | ||
Contact Configuration SPDT | ||
Mounting Type PCB Mount | ||
Switching Current 1A | ||
Number of Poles 1 | ||
Terminal Type PCB Pin | ||
Series TSC | ||
Application General Purpose | ||
- COO (Country of Origin):
- CN
Signal Relay TSC Series
TSC Series of miniature PCB relays. Typical applications include: Telecommunications, office machines and security systems.
1A SPCO miniature relay
Contact material; AgNi, Au plated
Low coil power requirement for IC compatibility
Sealed plastic case
Nominal power: Standard coil 300mW; Sensitive coil 150mW T
Contact material; AgNi, Au plated
Low coil power requirement for IC compatibility
Sealed plastic case
Nominal power: Standard coil 300mW; Sensitive coil 150mW T
Approvals
UL, CSA
