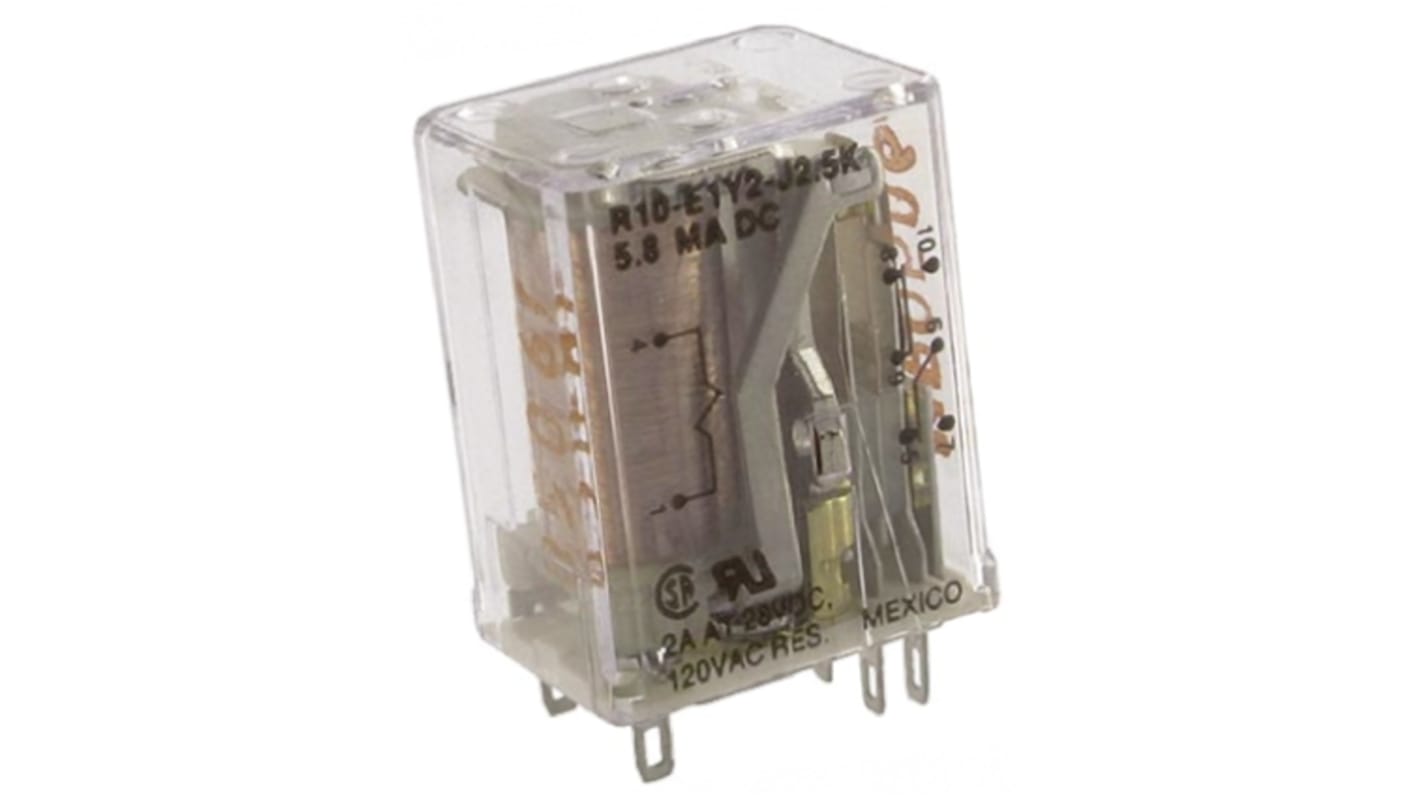

TE Connectivity Non-Latching Relay, 48V dc Coil, 3A Switching Current, DPDT
- RS Stock No.:
- 783-0331
- Mfr. Part No.:
- R10-E1Y2-J2.5K
- Brand:
- TE Connectivity
Discontinued
- RS Stock No.:
- 783-0331
- Mfr. Part No.:
- R10-E1Y2-J2.5K
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 48V dc | |
| Contact Configuration | DPDT | |
| Switching Current | 3A | |
| Number of Poles | 2 | |
| Terminal Type | Plug In | |
| Length | 30.15mm | |
| Coil Resistance | 10 Ω | |
| Contact Material | Silver | |
| Series | R10 | |
| Depth | 18.6mm | |
| Maximum Operating Temperature | +105°C | |
| Minimum Operating Temperature | -55°C | |
| Application | General Purpose | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 48V dc | ||
Contact Configuration DPDT | ||
Switching Current 3A | ||
Number of Poles 2 | ||
Terminal Type Plug In | ||
Length 30.15mm | ||
Coil Resistance 10 Ω | ||
Contact Material Silver | ||
Series R10 | ||
Depth 18.6mm | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -55°C | ||
Application General Purpose | ||
- COO (Country of Origin):
- MX
R10 Series Relay
R10 Series relay from TE Connectivity with transparent enclosures and solder terminals for stud or plug-in mounting
DPDT
UL, CS, RoHS Standard
UL, CS, RoHS Standard
