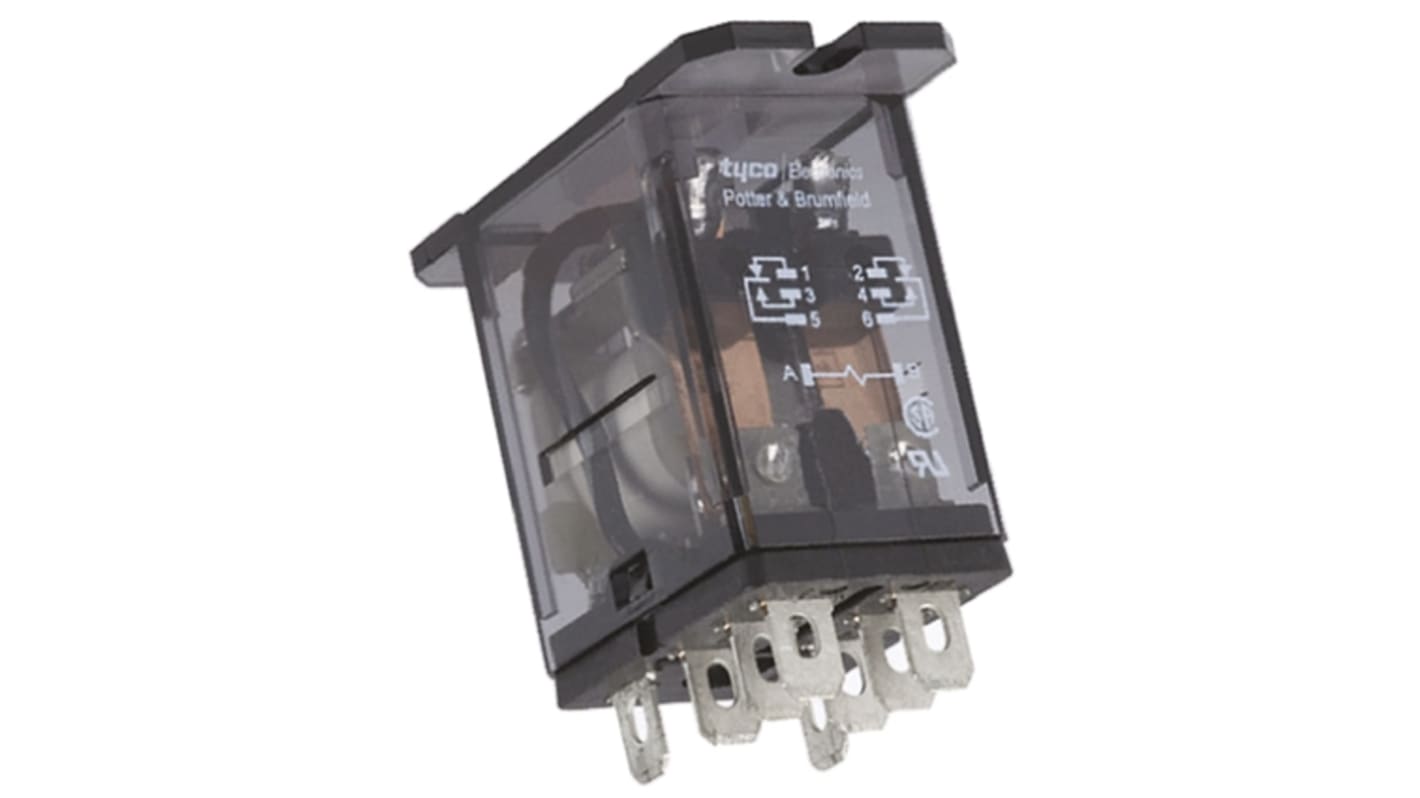

TE Connectivity Plug In Non-Latching Relay, 110V dc Coil, DPDT
- RS Stock No.:
- 782-6972
- Mfr. Part No.:
- K10P-11D15-110
- Brand:
- TE Connectivity
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 782-6972
- Mfr. Part No.:
- K10P-11D15-110
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 110V dc | |
| Contact Configuration | DPDT | |
| Mounting Type | Plug In | |
| Number of Poles | 2 | |
| Terminal Type | Quick Connect | |
| Maximum Switching Current DC | 15 A A | |
| Series | K10 | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 110V dc | ||
Contact Configuration DPDT | ||
Mounting Type Plug In | ||
Number of Poles 2 | ||
Terminal Type Quick Connect | ||
Maximum Switching Current DC 15 A A | ||
Series K10 | ||
- COO (Country of Origin):
- MX
K10 Series Relay
K10 Series Miniature General Relay from TE Connectivity
DPDT 2 Form C
Silver Cadmium Oxide Contacts
Contact Rating 15 A @ 120 V ac
Operating Temperature -45°C to +70°C
Silver Cadmium Oxide Contacts
Contact Rating 15 A @ 120 V ac
Operating Temperature -45°C to +70°C
