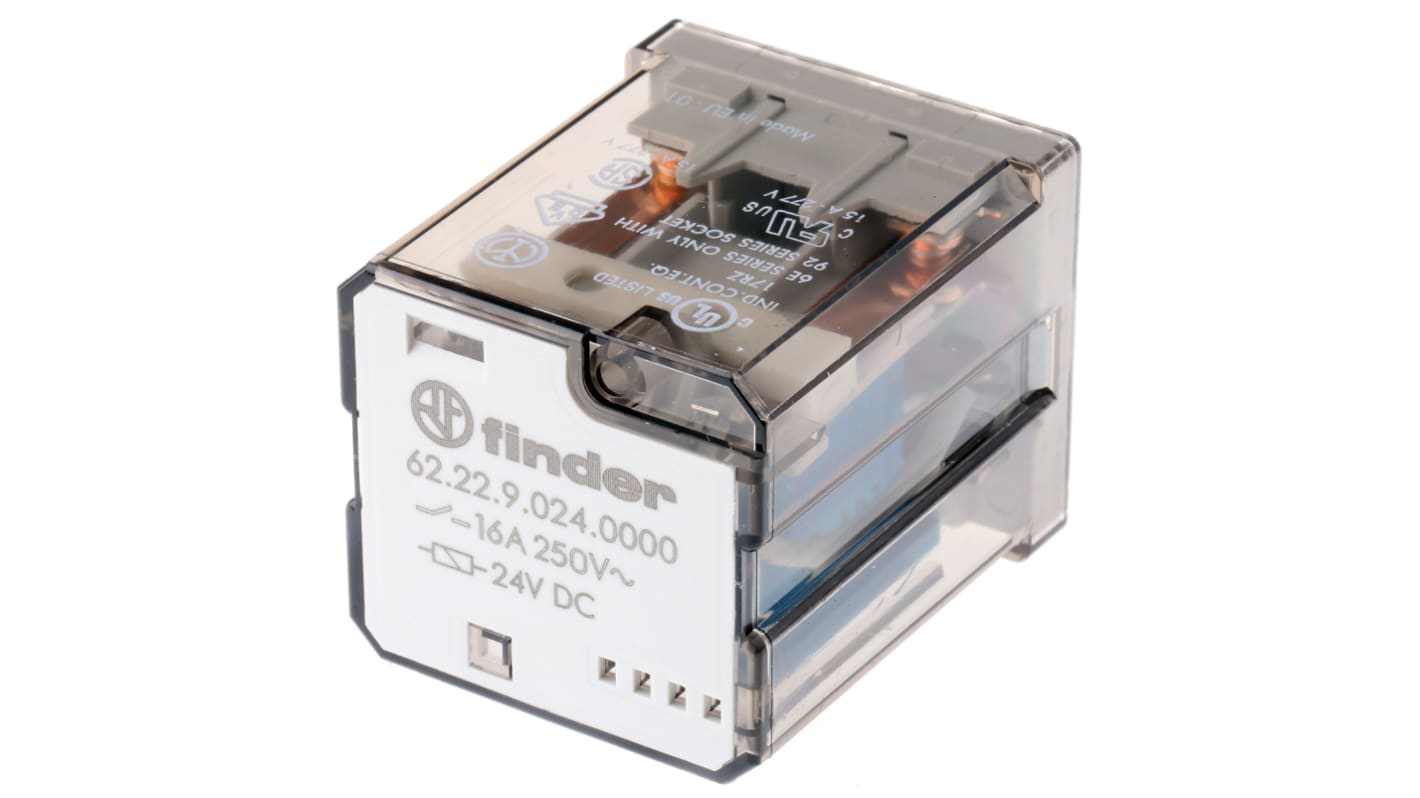

Finder PCB Mount Power Relay, 24V dc Coil, 16A Switching Current, DPDT
- RS Stock No.:
- 776-1639
- Mfr. Part No.:
- 62.22.9.024.0000
- Brand:
- Finder
Unavailable
RS will no longer stock this product.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£18.42
(exc. VAT)
£22.10
(inc. VAT)
- RS Stock No.:
- 776-1639
- Mfr. Part No.:
- 62.22.9.024.0000
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Finder | |
| Coil Voltage | 24V dc | |
| Contact Configuration | DPDT | |
| Mounting Type | PCB Mount | |
| Switching Current | 16A | |
| Number of Poles | 2 | |
| Latching | No | |
| Length | 38.2mm | |
| Coil Resistance | 445Ω | |
| Coil Power | 1.3W | |
| Maximum Operating Temperature | +70°C | |
| Depth | 49.1mm | |
| Life | 100 x 10³ cycles | |
| Height | 35.8mm | |
| Contact Material | Silver Alloy | |
| Series | 62 Series | |
| Minimum Operating Temperature | -40°C | |
| Application | Power | |
Select all | ||
|---|---|---|
Brand Finder | ||
Coil Voltage 24V dc | ||
Contact Configuration DPDT | ||
Mounting Type PCB Mount | ||
Switching Current 16A | ||
Number of Poles 2 | ||
Latching No | ||
Length 38.2mm | ||
Coil Resistance 445Ω | ||
Coil Power 1.3W | ||
Maximum Operating Temperature +70°C | ||
Depth 49.1mm | ||
Life 100 x 10³ cycles | ||
Height 35.8mm | ||
Contact Material Silver Alloy | ||
Series 62 Series | ||
Minimum Operating Temperature -40°C | ||
Application Power | ||
- COO (Country of Origin):
- IT
62 Series Industrial Power Relays
The 62 series of power relays from Finder. With various mounting types available, which include PCB, plug in and flange, you are sure to find a suitable version. A Reinforced insulation between coil and Contacts according to EN 60335-1, with 6 mm clearance & 8 mm creepage distance makes them perfect for your application.
DPNO and 3PNO have a 3 mm contact gap
Contact Material: AgCdO
Isolation Coil To Contact 6 kV (1.2/50 μs)
Contact Material: AgCdO
Isolation Coil To Contact 6 kV (1.2/50 μs)
Note
Approvals
UL, VDE
