Finder PCB Mount Power Relay, 12V dc Coil, 10A Switching Current, SPST

View all Power Relays
Unavailable
RS will no longer stock this product.
Packaging Options:

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
Finder PCB Mount Power Relay, 12V dc Coil, 10A Switching Current, SPDT
RS Stock No.
282-6655

Each

£5.12

(exc. VAT)

£6.14

(inc. VAT)

RS Stock No.:
708-3194
Mfr. Part No.:
43.41.7.012.2300
Brand:
Finder
Find similar products by selecting one or more attributes.
Select all

Brand

Finder

Coil Voltage

12V dc

Contact Configuration

SPST

Mounting Type

PCB Mount

Switching Current

10A

Number of Poles

1

Latching

No

Series

43 Series

Terminal Type

Through Hole

Maximum Switching Voltage AC

400V ac

Maximum Switching Voltage DC

48V dc

Maximum Switching Current AC

15 A

Length

30.2mm

Coil Resistance

580Ω

Coil Power

250mW

Minimum Operating Temperature

-40°C

Life

100000 (Electrical) cycles, 10000000 (Mechanical) cycles

Isolation Coil To Contact

6kV

Depth

10.2mm

Maximum Operating Temperature

+85°C

Height

15.4mm

Contact Material

Silver Alloy

Standards Met

cURus, EAC

Maximum Switching Power AC

2.5 kVA

Number of Coils

Single

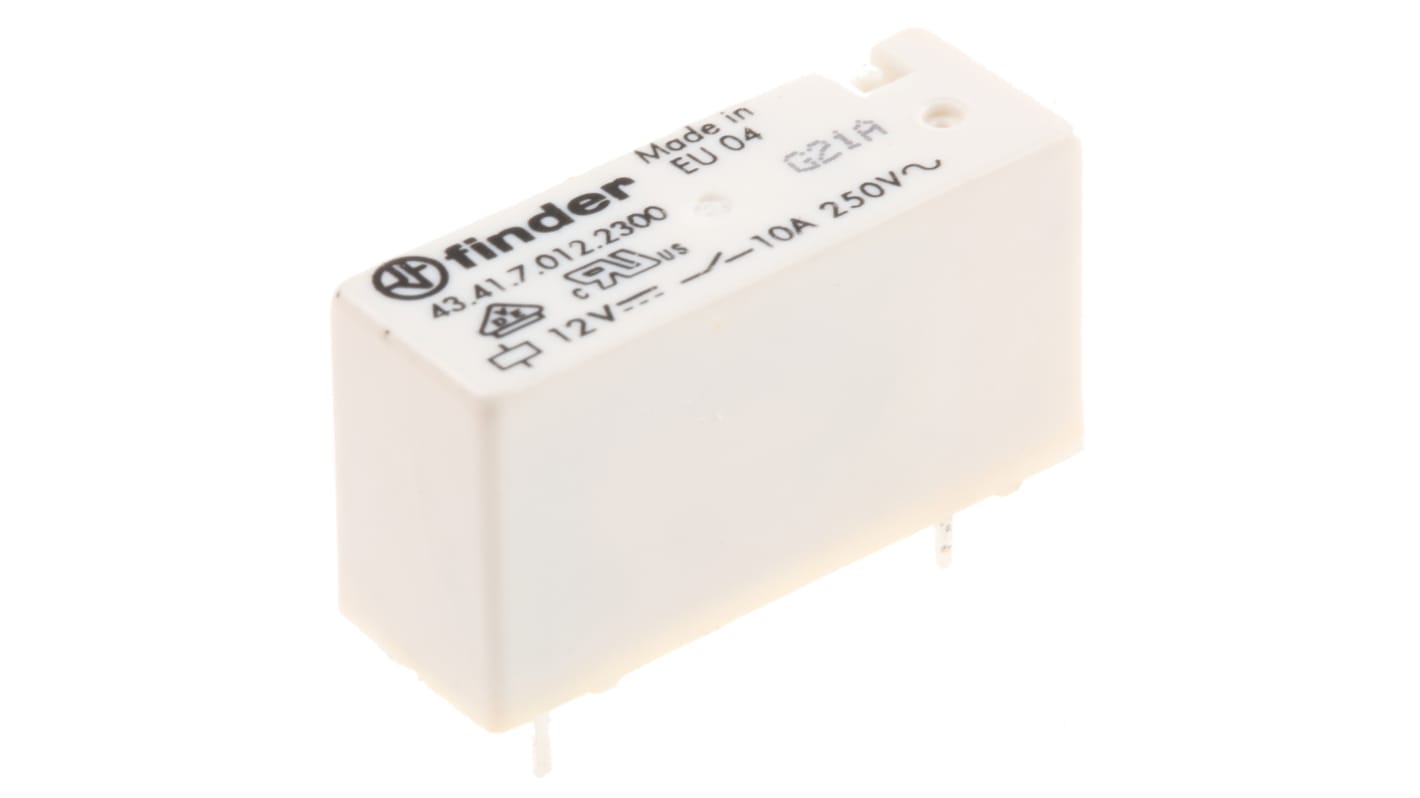

Finder 43 Series Power Relay, 12V DC Coil Voltage, 10A Switching Current - 43.41.7.012.2300


This power relay is a low-profile PCB mount device designed for various applications, featuring a single pole and a 12V DC coil voltage. With dimensions of 30.2mm in length, 10.2mm in depth, and 15.4mm in height, it is engineered to switch currents up to 10A. This relay operates effectively within a temperature range of -40 °C to +85 °C and meets high insulation standards with a coil-to-contact isolation of 6kV.

Features & Benefits


• SPST configuration allows for simple on/off control
• High switching capacity of up to 2.5kVA
• Through-hole terminal type for secure PCB mounting
• Exceptional life cycle ratings, with 100,000 electrical cycles
• Sensitive DC coil with only 250mW power consumption
• Compliance with cURus and EAC standards ensures reliability

Applications


• Ideal for medical equipment and dental devices
• Used in alarm systems for enhanced security solutions
• Suitable for air conditioning units to control operations
• Effective in electric toys and gaming
• Utilised in vending machines for reliable service deliveries

What is the maximum switching current for this relay?


The device can manage a maximum switching current of 10A, with a peak capability of 15A when switching AC loads.

How does the relay's insulation level contribute to its performance?


With a coil-to-contact isolation of 6kV, it provides significant protection against voltage surges, enhancing reliability in sensitive applications.

What types of loads are compatible with this relay?


It is suitable for both resistive and inductive loads, making it versatile for various electrical applications.

What operational advantages do sensitive DC coils offer?


Sensitive DC coils reduce the power consumption to just 250mW, making this relay energy efficient in low-power applications.

How does the relay perform in extreme temperature environments?


This relay is designed to work efficiently across a wide ambient temperature range of -40 °C to +85 °C, ensuring reliable operation in harsh conditions.
