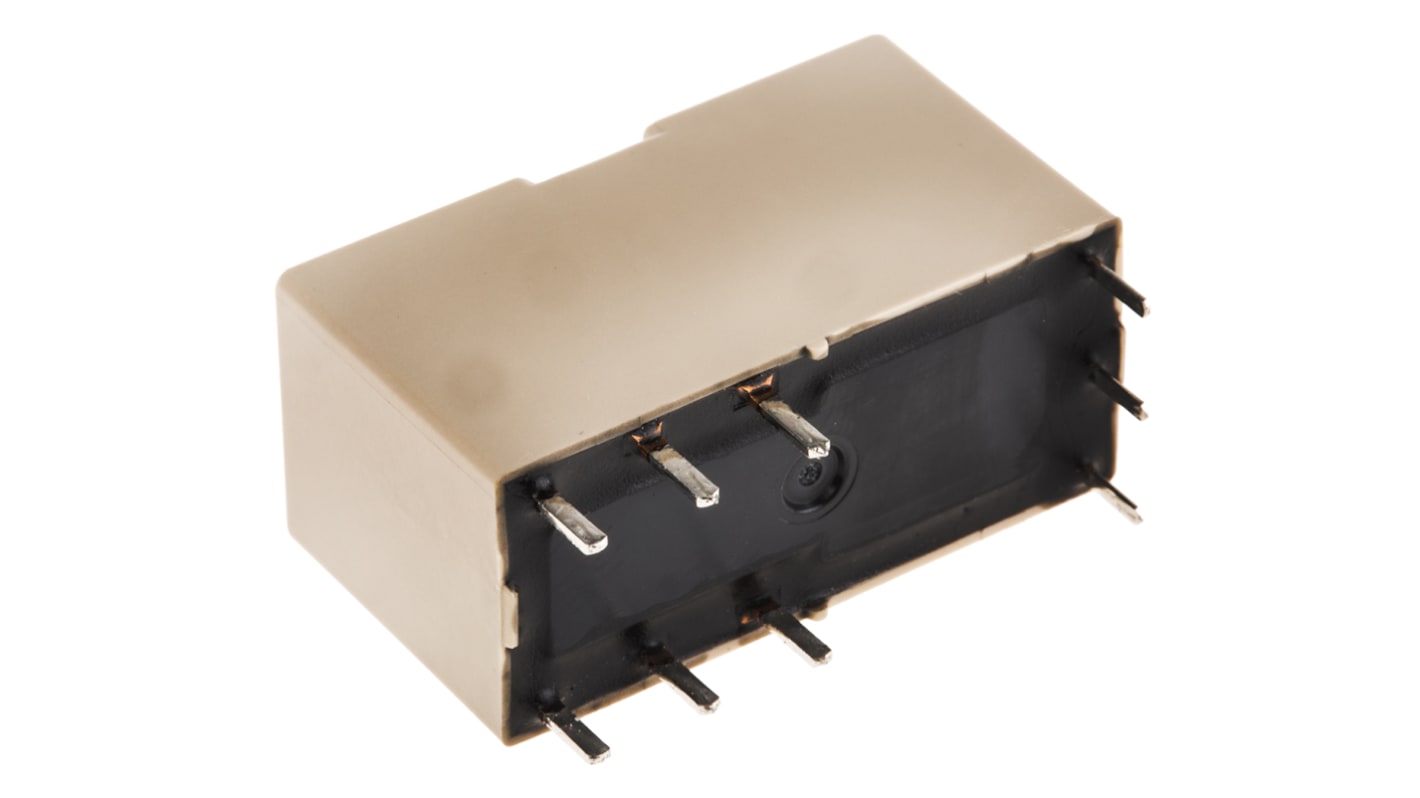

Panasonic PCB Mount Latching Power Relay, 12V dc Coil, 10A Switching Current, DPDT

View all Power Relays
Unavailable
RS will no longer stock this product.
RS Stock No.:
173-8895
Mfr. Part No.:
ADJ54012
Brand:
Panasonic
Find similar products by selecting one or more attributes.
Select all

Brand

Panasonic

Coil Voltage

12V dc

Contact Configuration

DPDT

Mounting Type

PCB Mount

Switching Current

10A

Latching

Yes

Terminal Type

Through Hole

Maximum Switching Voltage AC

250V ac

Length

29mm

Coil Resistance

576Ω

Coil Power

250mW

Minimum Operating Temperature

-40°C

Height

16.5mm

Maximum Operating Temperature

+70°C

Isolation Coil To Contact

4kVrms

Life

5000000 (Mechanical) cycles

Contact Material

Gold Plated

Depth

13mm

Maximum Switching Power AC

4 kVA

Dimensions

29 x 16.5 x 13mm

Application

Power

COO (Country of Origin):
JP

ADJ Series


These PCB mount polarized power relays are compact (29x13x16.5mm) with a high capacity and are availble with a test button to facilitate circuit checks. Typical applications for these PCB power relays include FA equipment, electric power devices, household appliance networks and time switches.

Variety of contact arrangements
Power latching, high insulation
Compact with up to 16A capacity
Low power consumption
Typical applications: Brake circuits, motor control, time switches
