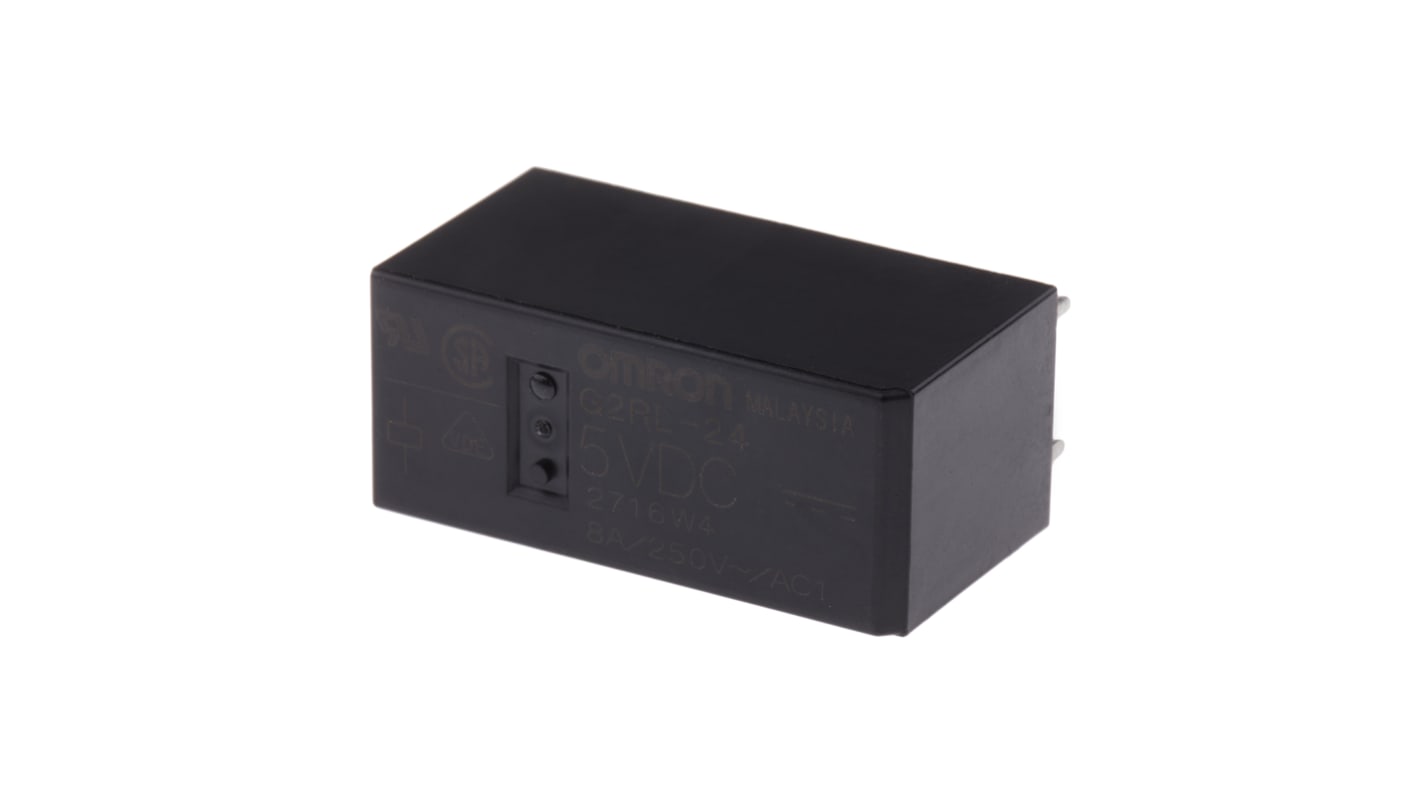

Omron PCB Mount Power Relay, 5V dc Coil, 5A Switching Current, DPDT
- RS Stock No.:
- 686-7121
- Mfr. Part No.:
- G2RL-24 DC5
- Brand:
- Omron
28 In stock - FREE next working day delivery available
Added
Price Each
£4.07
(exc. VAT)
£4.88
(inc. VAT)
| Units | Per unit |
| 1 - 24 | £4.07 |
| 25 - 49 | £3.68 |
| 50 - 99 | £3.29 |
| 100 + | £2.87 |
- RS Stock No.:
- 686-7121
- Mfr. Part No.:
- G2RL-24 DC5
- Brand:
- Omron
Technical Reference
Legislation and Compliance
Product Details
G2RL Series
Low profile 15.7mm height (max.)
10mm creepage/clearance
Meets EN60335-1 requirements
Tracking resistance: CTI>250
H15.7, W12.7, D29mm
10mm creepage/clearance
Meets EN60335-1 requirements
Tracking resistance: CTI>250
H15.7, W12.7, D29mm
Approvals
UL recognised; CSA certified; VDE
Specifications
Attribute | Value |
|---|---|
| Coil Voltage | 5V dc |
| Contact Configuration | DPDT |
| Mounting Type | PCB Mount |
| Switching Current | 5A |
| Number of Poles | 2 |
| Latching | No |
| Terminal Type | Through Hole |
| Length | 29mm |
| Coil Resistance | 62.5Ω |
| Height | 15.7mm |
| Series | G2RL |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
| Depth | 12.7mm |
| Contact Material | Silver |
| Maximum Switching Power AC | 2 kVA |
| Application | Power |
