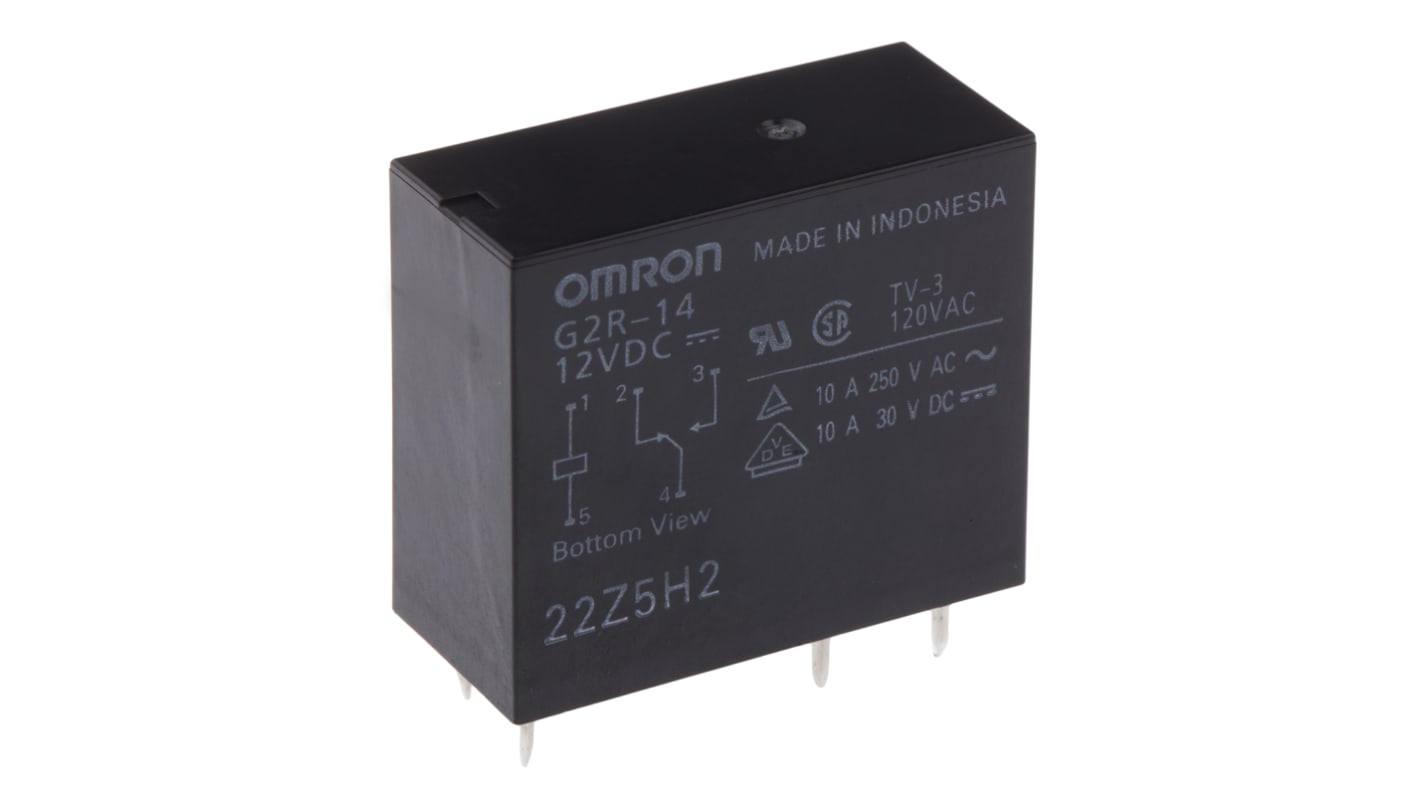

Omron PCB Power Relay, 12V dc Coil, 10A Switching Current, SPDT
- RS Stock No.:
- 686-7036
- Distrelec Article No.:
- 301-18-630
- Mfr. Part No.:
- G2R-14 DC12
- Brand:
- Omron
Bulk discount available
Subtotal (1 unit)*
£3.39
(exc. VAT)
£4.07
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 24 | £3.39 |
| 25 - 49 | £3.05 |
| 50 - 99 | £2.72 |
| 100 - 249 | £2.39 |
| 250 + | £2.09 |
*price indicative
- RS Stock No.:
- 686-7036
- Distrelec Article No.:
- 301-18-630
- Mfr. Part No.:
- G2R-14 DC12
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Product Type | Power Relay | |
| Coil Voltage | 12V dc | |
| Contact Configuration | SPDT | |
| Mount Type | PCB | |
| Series | G2R-1 | |
| Terminal Type | Solder | |
| Switching Current | 10A | |
| Minimum Operating Temperature | -40°C | |
| Switching AC Voltage | 380V ac | |
| Switching DC Voltage | 125V dc | |
| Coil Resistance | 275Ω | |
| Maximum Operating Temperature | 70°C | |
| Coil Power | 0.9W | |
| Length | 29mm | |
| Width | 13.5mm | |
| Standards/Approvals | VDE, UL, RoHS, CSA | |
| Height | 25.5mm | |
| Contact Material | Silver Alloy | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Product Type Power Relay | ||
Coil Voltage 12V dc | ||
Contact Configuration SPDT | ||
Mount Type PCB | ||
Series G2R-1 | ||
Terminal Type Solder | ||
Switching Current 10A | ||
Minimum Operating Temperature -40°C | ||
Switching AC Voltage 380V ac | ||
Switching DC Voltage 125V dc | ||
Coil Resistance 275Ω | ||
Maximum Operating Temperature 70°C | ||
Coil Power 0.9W | ||
Length 29mm | ||
Width 13.5mm | ||
Standards/Approvals VDE, UL, RoHS, CSA | ||
Height 25.5mm | ||
Contact Material Silver Alloy | ||
G2R Series
General purpose PCB power relay used in various domestic and commercial applications
8mm creepage/clearance
H25.5 x W13 x D29 mm
Approvals
UL508; CSA22.2; EN 61810-1; SEV; SEMKO
