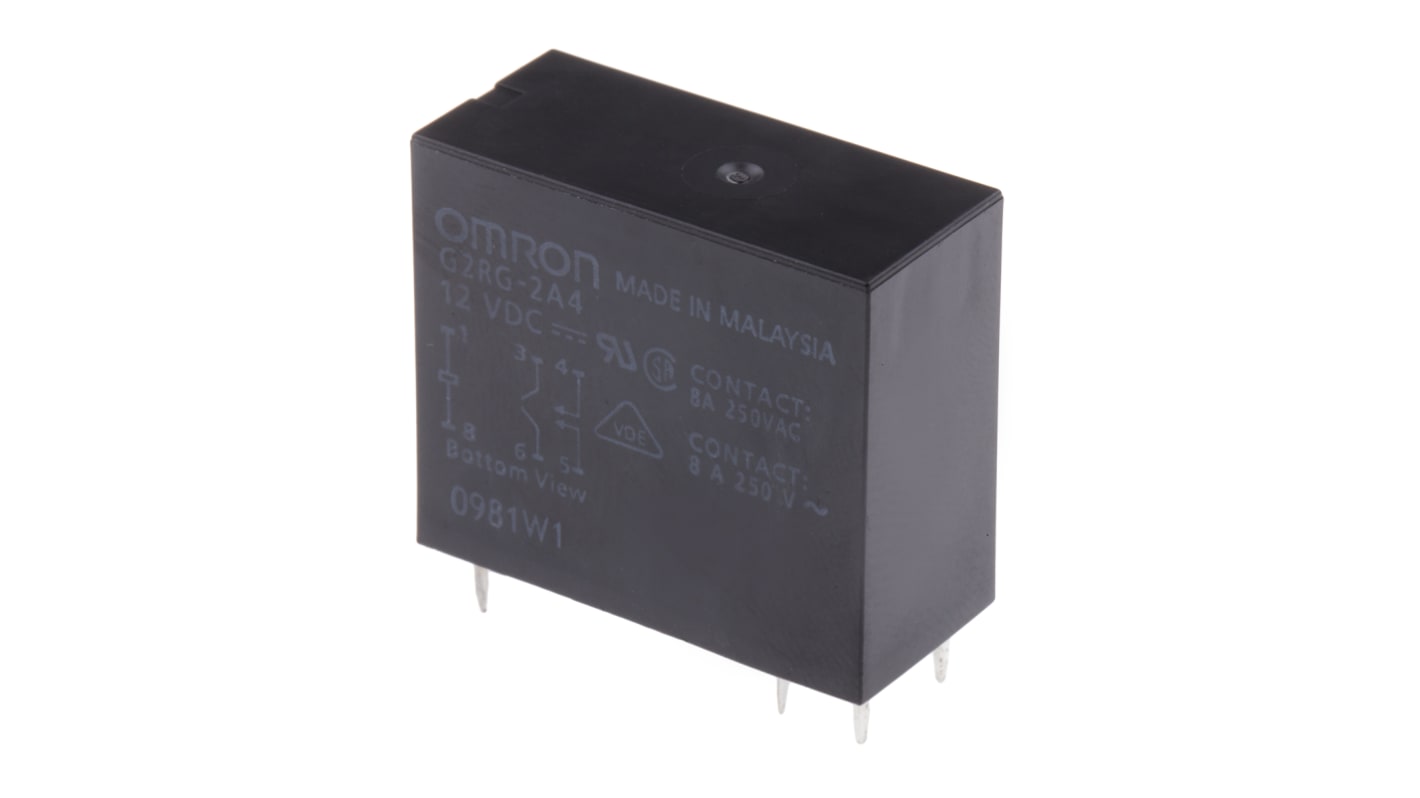

Omron PCB Power Relay, 12V dc Coil, 8A Switching Current, DPST
- RS Stock No.:
- 683-8744P
- Mfr. Part No.:
- G2RG-2A4 DC12
- Brand:
- Omron
Bulk discount available
Subtotal 25 units (supplied in a box)*
£64.75
(exc. VAT)
£77.75
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 26 unit(s) ready to ship
- Plus 100 unit(s) shipping from 10 July 2026
- Plus 206 unit(s) shipping from 02 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 25 - 49 | £2.59 |
| 50 - 99 | £2.47 |
| 100 - 249 | £2.34 |
| 250 + | £2.08 |
*price indicative
- RS Stock No.:
- 683-8744P
- Mfr. Part No.:
- G2RG-2A4 DC12
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Product Type | Power Relay | |
| Coil Voltage | 12V dc | |
| Contact Configuration | DPST | |
| Mount Type | PCB | |
| Series | G2RG | |
| Terminal Type | Solder | |
| Switching Current | 8A | |
| Switching DC Voltage | 300V dc | |
| Minimum Operating Temperature | -40°C | |
| Switching AC Voltage | 440V ac | |
| Maximum Operating Temperature | 70°C | |
| Coil Resistance | 180Ω | |
| Standards/Approvals | IEC/EN 60079-15, RoHS, VDE | |
| Length | 29mm | |
| Coil Power | 400mW | |
| Height | 25.5mm | |
| Width | 13.5mm | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 100mΩ | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Product Type Power Relay | ||
Coil Voltage 12V dc | ||
Contact Configuration DPST | ||
Mount Type PCB | ||
Series G2RG | ||
Terminal Type Solder | ||
Switching Current 8A | ||
Switching DC Voltage 300V dc | ||
Minimum Operating Temperature -40°C | ||
Switching AC Voltage 440V ac | ||
Maximum Operating Temperature 70°C | ||
Coil Resistance 180Ω | ||
Standards/Approvals IEC/EN 60079-15, RoHS, VDE | ||
Length 29mm | ||
Coil Power 400mW | ||
Height 25.5mm | ||
Width 13.5mm | ||
Contact Material Silver Alloy | ||
Contact Resistance 100mΩ | ||
G2RG Series
Clearance between contact terminals of the same polarity 1.5mm (min)
Conforms to VDE0435 (VDE approval: C250 insulation grade)
Tracking resistance: CTI > 250V
Fully sealed
H25.5 x W13.5 x D29 mm
Approvals
UL508; CSA22.2
