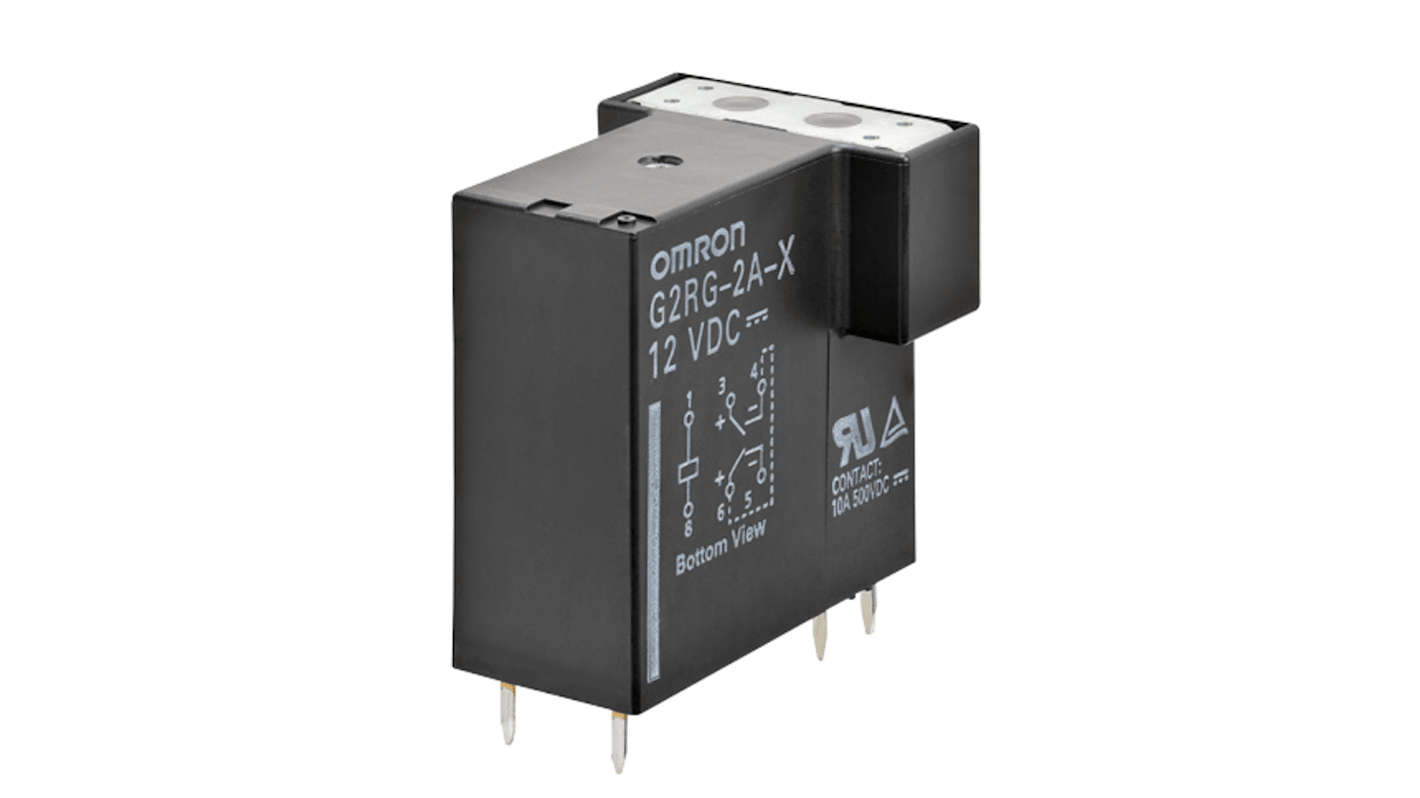

Omron PCB Non-Latching Relay, 12V dc Coil, 10A Switching Current, DPST
- RS Stock No.:
- 232-6216
- Mfr. Part No.:
- G2RG-2A-X DC12
- Brand:
- Omron
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 232-6216
- Mfr. Part No.:
- G2RG-2A-X DC12
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Coil Voltage | 12V dc | |
| Product Type | Non-Latching Relay | |
| Contact Configuration | DPST | |
| Mount Type | PCB | |
| Series | G2RG | |
| Terminal Type | Solder | |
| Switching Current | 10A | |
| Switching AC Voltage | 440V ac | |
| Switching DC Voltage | 300V dc | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Coil Resistance | 180Ω | |
| Height | 15.7mm | |
| Standards/Approvals | IEC/EN 60079-15, RoHS, VDE | |
| Coil Power | 800mW | |
| Width | 12.7mm | |
| Length | 29mm | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 100mΩ | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Coil Voltage 12V dc | ||
Product Type Non-Latching Relay | ||
Contact Configuration DPST | ||
Mount Type PCB | ||
Series G2RG | ||
Terminal Type Solder | ||
Switching Current 10A | ||
Switching AC Voltage 440V ac | ||
Switching DC Voltage 300V dc | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Coil Resistance 180Ω | ||
Height 15.7mm | ||
Standards/Approvals IEC/EN 60079-15, RoHS, VDE | ||
Coil Power 800mW | ||
Width 12.7mm | ||
Length 29mm | ||
Contact Material Silver Alloy | ||
Contact Resistance 100mΩ | ||
The Omron G2RG series of power relay with 12 Vdc and 10 A switching capacity. It has a 2 poles series wiring with 3.0 mm contact gap. Used for energy storage system.
Achieves 500 VDC 10 A switching capacity used with 2 pole series wiring
3.0 mm contact gap (2 poles series wiring)
Offers high insulation with insulation distance above 8 mm and
impulse withstand voltage of 10 kV between coil and contacts.
UL and TÜV cert
