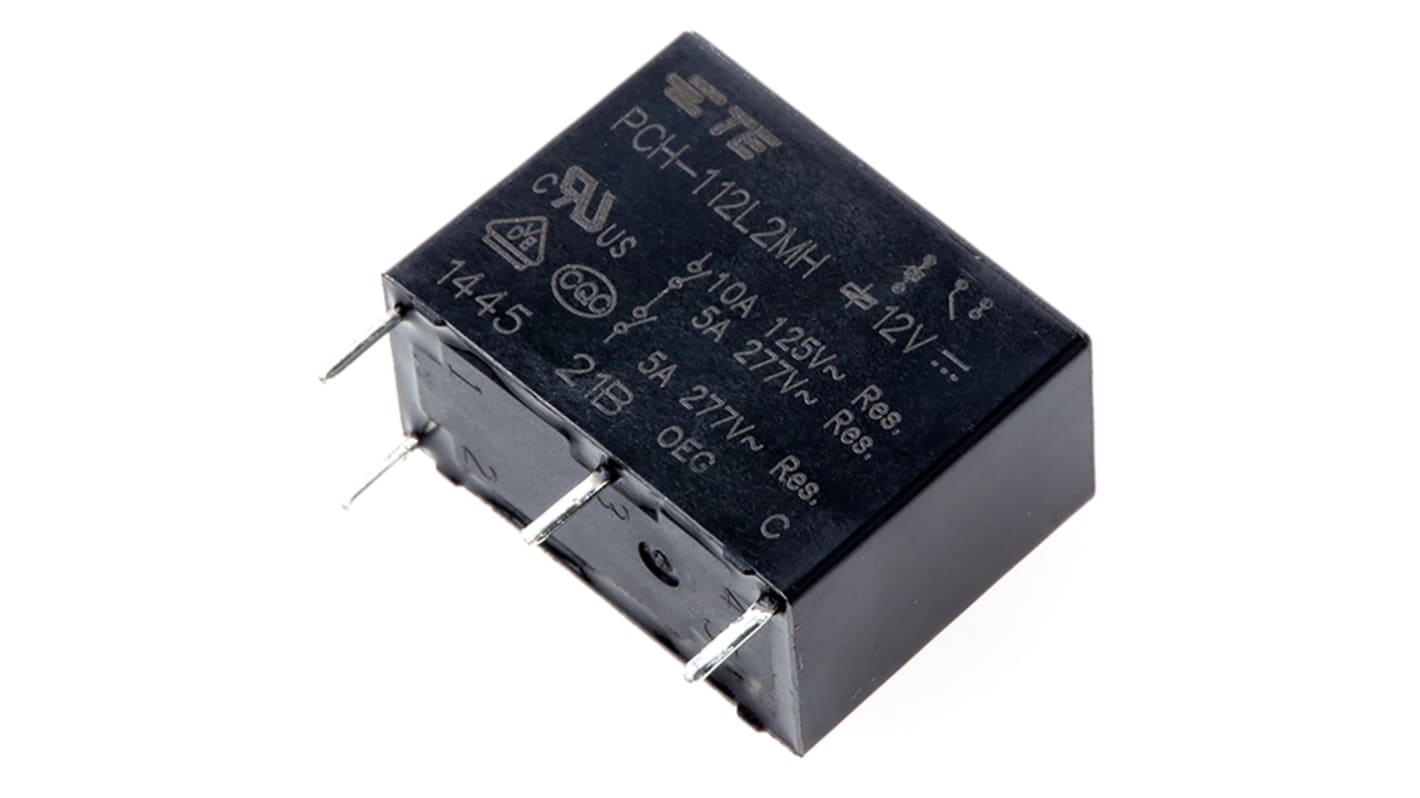

TE Connectivity PCB Mount Power Relay, 12V dc Coil, 5A Switching Current, SPST
- RS Stock No.:
- 680-2574
- Mfr. Part No.:
- PCH-112L2MH,000
- Brand:
- TE Connectivity
Available to back order for despatch 16/09/2024
Added
Price Each
£2.01
(exc. VAT)
£2.41
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £2.01 |
| 10 - 24 | £1.90 |
| 25 - 49 | £1.82 |
| 50 - 99 | £1.70 |
| 100 + | £1.62 |
- RS Stock No.:
- 680-2574
- Mfr. Part No.:
- PCH-112L2MH,000
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
TE Connectivity Miniature PCB Relay - PCH Series
PCH series miniature PCB through hole mount relays with SPST and SPDT AgSnO2 contacts. These miniature PCB through hole mount relays have washtight, sealed plastic covers apart from stock numbers 533-0867, 533-0867 and 533-0873 which have flux proof vented covers. PCB relays with SPST contacts have a senstive 200mW coil. Typical applications for these PCH series PCB relays include HVAC, refrigerators and microwave ovens.
High surge voltage capacity; 8000V (1.2/50μs)
Ambient temperature; -30 to +85°C
Contact rating: 5A @ 250Vac (IEC 61810), 10 A @ 125 Vac (UL 508)
Contact material; AgSnO
Dimensions (mm); H 15.2, W 9.9, D19.8
Ambient temperature; -30 to +85°C
Contact rating: 5A @ 250Vac (IEC 61810), 10 A @ 125 Vac (UL 508)
Contact material; AgSnO
Dimensions (mm); H 15.2, W 9.9, D19.8
Approvals
UL; CSA; VDE
Specifications
Attribute | Value |
|---|---|
| Coil Voltage | 12V dc |
| Contact Configuration | SPST |
| Mounting Type | PCB Mount |
| Switching Current | 5A |
| Number of Poles | 1 |
| Latching | No |
| Terminal Type | Through Hole |
| Length | 20mm |
| Coil Resistance | 720Ω |
| Series | PCH |
| Maximum Operating Temperature | +85°C |
| Height | 15.2mm |
| Minimum Operating Temperature | -40°C |
| Contact Material | Silver Alloy |
| Depth | 10mm |
| Application | PCB |
