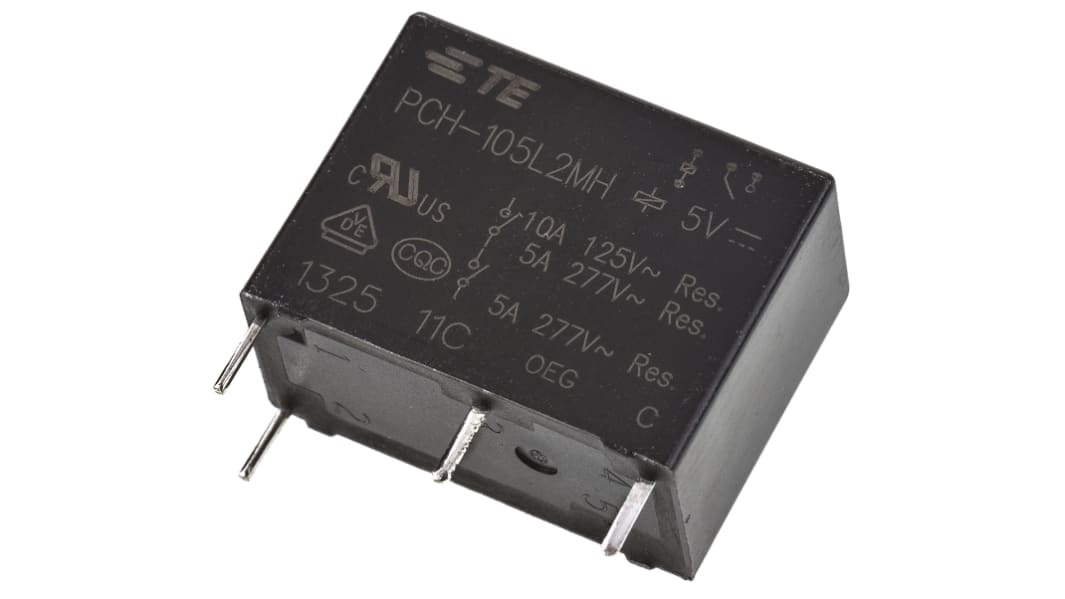

TE Connectivity PCB Mount Power Relay, 5V dc Coil, 5A Switching Current, SPST
- RS Stock No.:
- 680-2502
- Mfr. Part No.:
- PCH-105L2MH,000
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£2.13
(exc. VAT)
£2.56
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- 101 left, ready to ship
- Final 13 unit(s) shipping from 29 October 2025
Units | Per unit |
|---|---|
| 1 - 9 | £2.13 |
| 10 - 49 | £1.97 |
| 50 - 99 | £1.68 |
| 100 - 249 | £1.63 |
| 250 + | £1.42 |
*price indicative
- RS Stock No.:
- 680-2502
- Mfr. Part No.:
- PCH-105L2MH,000
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 5V dc | |
| Contact Configuration | SPST | |
| Mounting Type | PCB Mount | |
| Switching Current | 5A | |
| Number of Poles | 1 | |
| Series | PCH | |
| Latching | No | |
| Terminal Type | Through Hole | |
| Length | 20mm | |
| Coil Resistance | 125Ω | |
| Coil Power | 200mW | |
| Minimum Operating Temperature | -40°C | |
| Isolation Coil To Contact | 4kV ac | |
| Height | 15.2mm | |
| Maximum Operating Temperature | +85°C | |
| Depth | 10mm | |
| Contact Material | Silver Alloy | |
| Maximum Switching Power DC | 150 W | |
| Application | PCB | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 5V dc | ||
Contact Configuration SPST | ||
Mounting Type PCB Mount | ||
Switching Current 5A | ||
Number of Poles 1 | ||
Series PCH | ||
Latching No | ||
Terminal Type Through Hole | ||
Length 20mm | ||
Coil Resistance 125Ω | ||
Coil Power 200mW | ||
Minimum Operating Temperature -40°C | ||
Isolation Coil To Contact 4kV ac | ||
Height 15.2mm | ||
Maximum Operating Temperature +85°C | ||
Depth 10mm | ||
Contact Material Silver Alloy | ||
Maximum Switching Power DC 150 W | ||
Application PCB | ||
- COO (Country of Origin):
- CN
TE Connectivity Miniature PCB Relay - PCH Series
PCH series miniature PCB through hole mount relays with SPST and SPDT AgSnO2 contacts. These miniature PCB through hole mount relays have washtight, sealed plastic covers apart from stock numbers 533-0867, 533-0867 and 533-0873 which have flux proof vented covers. PCB relays with SPST contacts have a senstive 200mW coil. Typical applications for these PCH series PCB relays include HVAC, refrigerators and microwave ovens.
High surge voltage capacity; 8000V (1.2/50μs)
Ambient temperature; -30 to +85°C
Contact rating: 5A @ 250Vac (IEC 61810), 10 A @ 125 Vac (UL 508)
Contact material; AgSnO
Dimensions (mm); H 15.2, W 9.9, D19.8
Ambient temperature; -30 to +85°C
Contact rating: 5A @ 250Vac (IEC 61810), 10 A @ 125 Vac (UL 508)
Contact material; AgSnO
Dimensions (mm); H 15.2, W 9.9, D19.8
Approvals
UL; CSA; VDE
Approvals
UL; CSA; VDE
