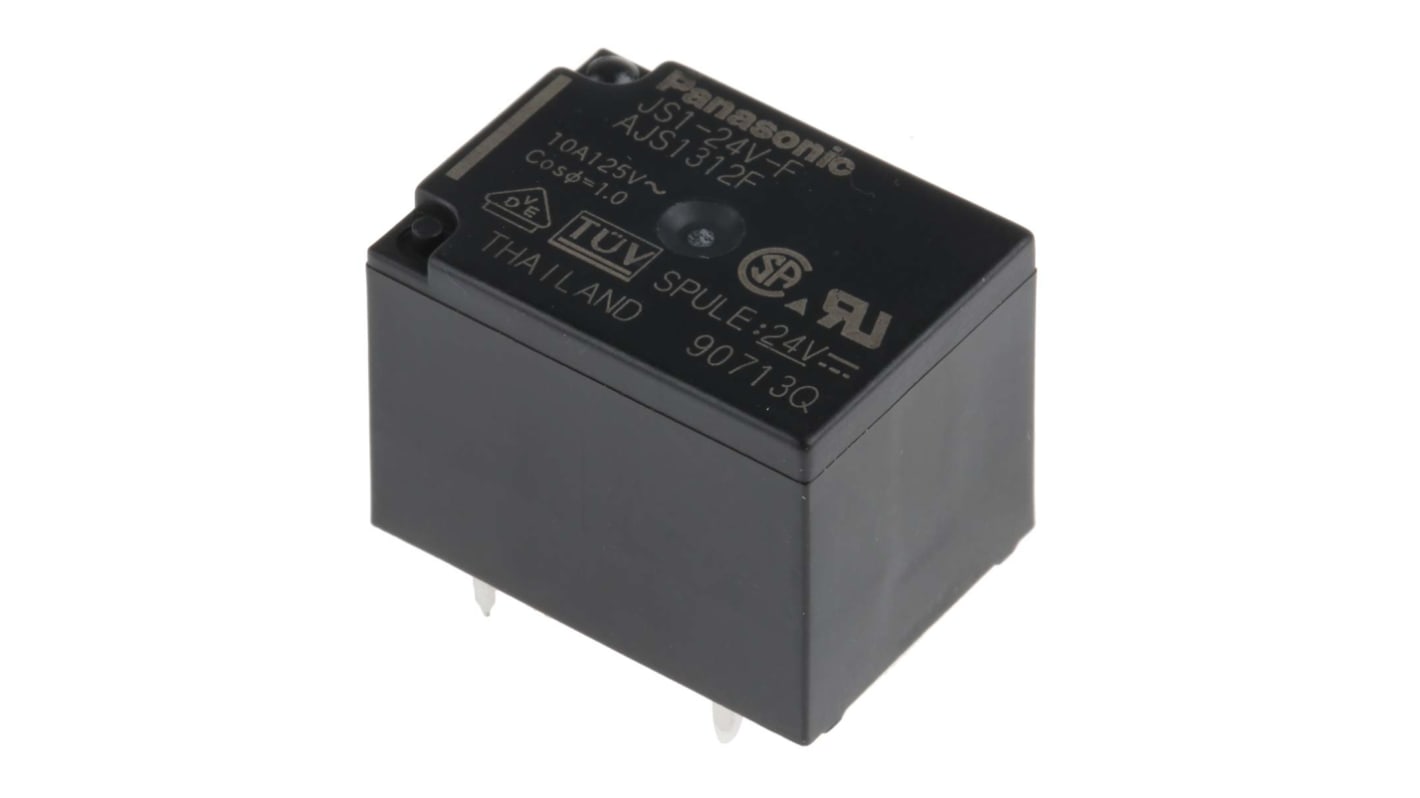

Panasonic PCB Mount Power Relay, 24V dc Coil, 5A Switching Current, SPDT
£1.77
Each
RS Stock No.: 815-5111
- RS Stock No.:
- 652-5381
- Mfr. Part No.:
- JS1-24V-F
- Brand:
- Panasonic
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TH
Product Details
JS Series Relay
These miniature PCB mount power relays have a universal terminal footprint and a high contact capacity. Typical applications include home appliances, automotive (door locks etc), office machines and vending machines.
High contact capacity of 10 A
Sealed construction for automatic cleaning
Miniature size, H16 x W22 x D16 mm
Sealed construction for automatic cleaning
Miniature size, H16 x W22 x D16 mm
Approvals
UL, CSA, VDE, TÜV
Specifications
Attribute | Value |
---|---|
Coil Voltage | 24V dc |
Contact Configuration | SPDT |
Mounting Type | PCB Mount |
Switching Current | 10A |
Terminal Type | Through Hole |
Length | 22mm |
Coil Resistance | 1.6 kΩ |
Coil Power | 360mW |
Contact Material | Silver Alloy |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +70°C |
Height | 16.4mm |
Depth | 16mm |
Isolation Coil To Contact | 1.5kV rms |
Life | 10000000 (Electrical) cycles |
Maximum Switching Power AC | 2.5 kVA |
Maximum Switching Power DC | 150 W |
Application | Power |
