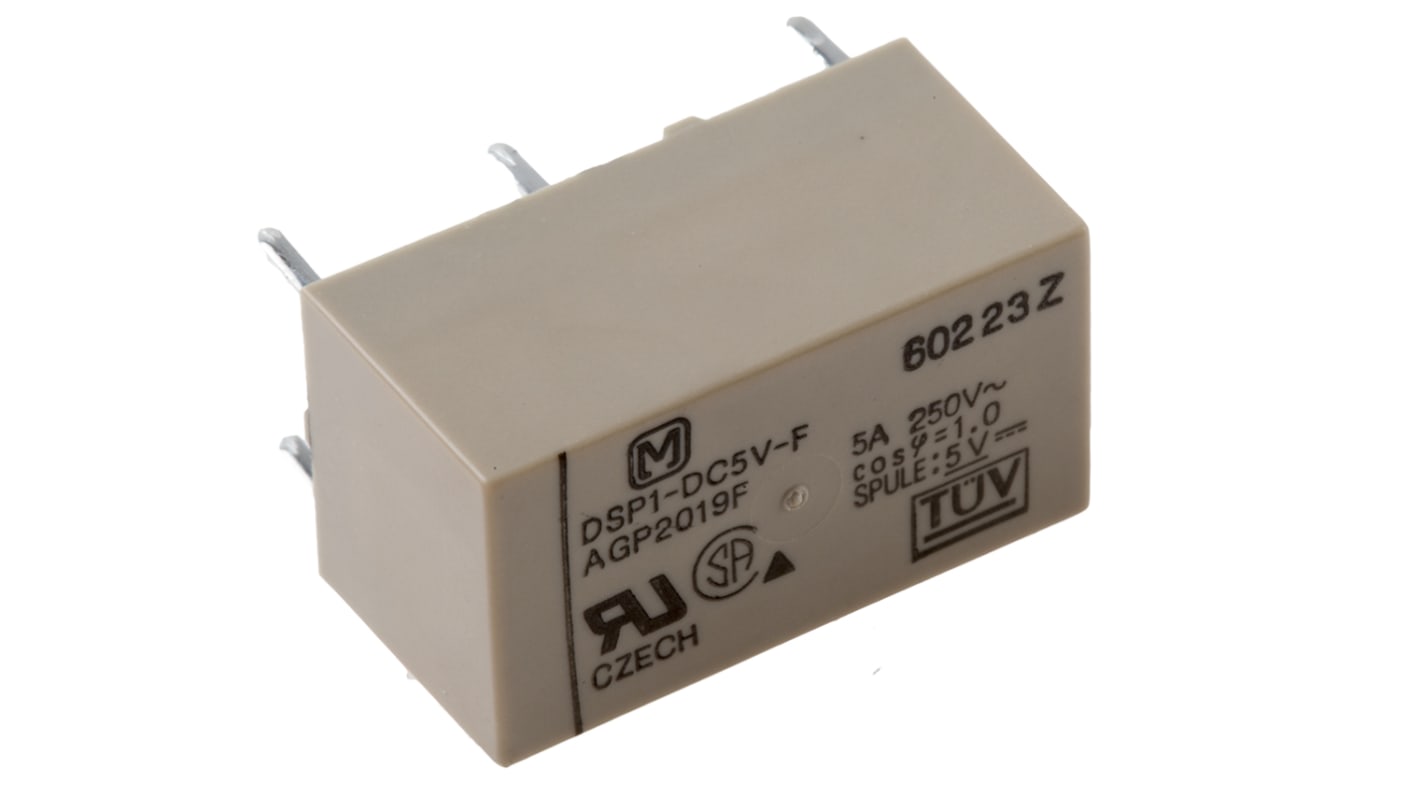

Panasonic DPST Non-Latching Relay PCB Mount, 5V dc Coil, 5 A
- RS Stock No.:
- 650-2451
- Mfr. Part No.:
- DSP1-DC5V-F
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 unit)*
£6.73
(exc. VAT)
£8.08
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 779 unit(s) ready to ship
- Plus 53 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £6.73 |
5 - 9 | £6.54 |
10 + | £6.37 |
*price indicative
- RS Stock No.:
- 650-2451
- Mfr. Part No.:
- DSP1-DC5V-F
- Brand:
- Panasonic
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Panasonic | |
Coil Voltage | 5V dc | |
Contact Configuration | DPST | |
Switching Current | 5 A | |
Mounting Type | PCB Mount | |
Terminal Type | Through Hole | |
Coil Resistance | 83 Ω | |
Application | Power | |
Length | 20.2mm | |
Depth | 11mm | |
Height | 10.5mm | |
Dimensions | 20.2 x 11 x 10.5mm | |
Operating Temperature Range | -40 → +65°C | |
Life | 50000000 (Electrical) cycles | |
Maximum Switching Power DC | 150 W | |
Contact Material | Gold Plated | |
Maximum Switching Power AC | 1.25 kVA | |
Coil Power | 300mW | |
Maximum Operating Temperature | +65°C | |
Isolation Coil To Contact | 3kV rms | |
Minimum Operating Temperature | -40°C | |
Select all | ||
---|---|---|
Brand Panasonic | ||
Coil Voltage 5V dc | ||
Contact Configuration DPST | ||
Switching Current 5 A | ||
Mounting Type PCB Mount | ||
Terminal Type Through Hole | ||
Coil Resistance 83 Ω | ||
Application Power | ||
Length 20.2mm | ||
Depth 11mm | ||
Height 10.5mm | ||
Dimensions 20.2 x 11 x 10.5mm | ||
Operating Temperature Range -40 → +65°C | ||
Life 50000000 (Electrical) cycles | ||
Maximum Switching Power DC 150 W | ||
Contact Material Gold Plated | ||
Maximum Switching Power AC 1.25 kVA | ||
Coil Power 300mW | ||
Maximum Operating Temperature +65°C | ||
Isolation Coil To Contact 3kV rms | ||
Minimum Operating Temperature -40°C | ||
