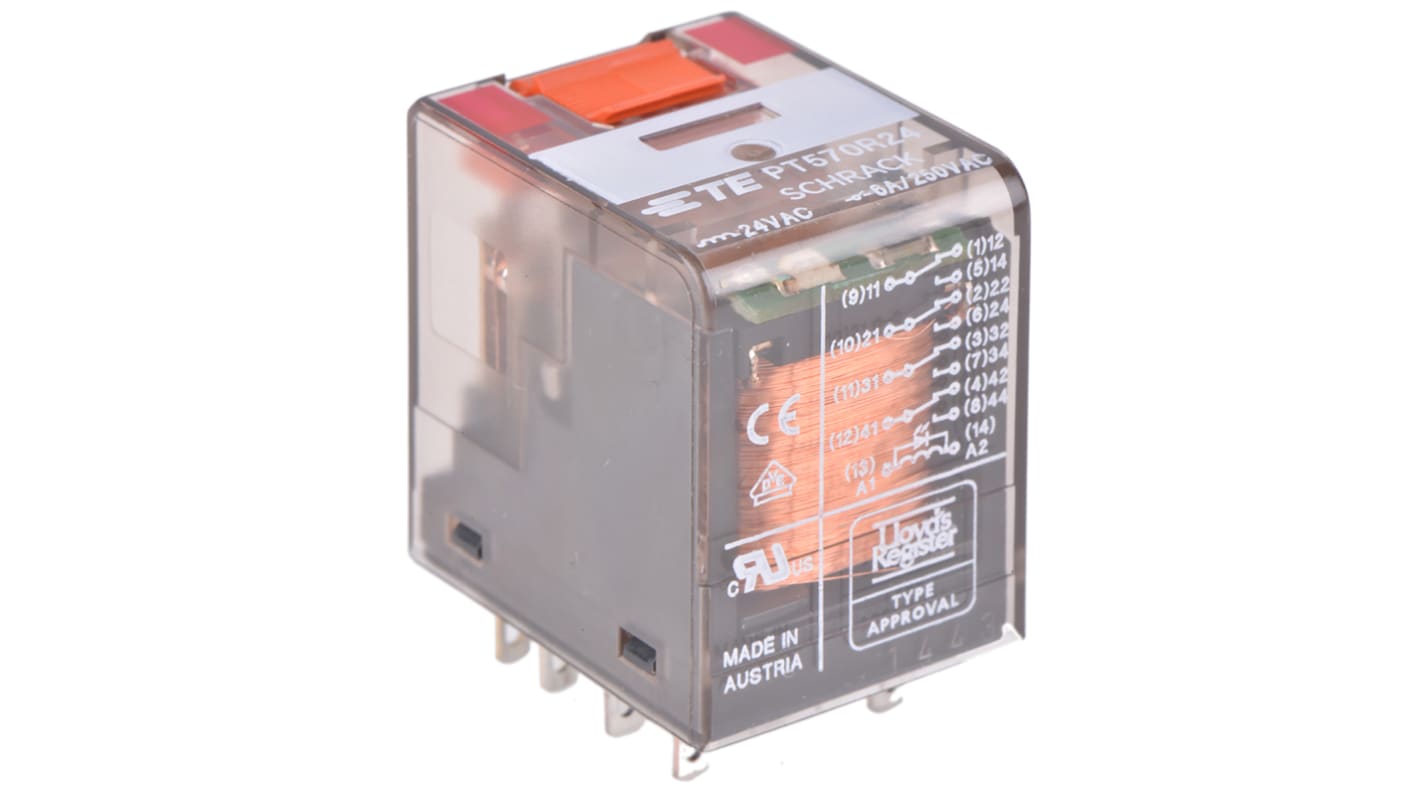

TE Connectivity PCB Mount Power Relay, 24V ac Coil, 6A Switching Current, 4PDT
- RS Stock No.:
- 535-2508
- Distrelec Article No.:
- 300-29-046
- Mfr. Part No.:
- PT570R24 7-1415001-1
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£9.72
(exc. VAT)
£11.66
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
- Plus 131 unit(s) shipping from 16 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £9.72 |
| 5 - 9 | £9.45 |
| 10 + | £9.01 |
*price indicative
- RS Stock No.:
- 535-2508
- Distrelec Article No.:
- 300-29-046
- Mfr. Part No.:
- PT570R24 7-1415001-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 24V ac | |
| Contact Configuration | 4PDT | |
| Mounting Type | PCB Mount | |
| Switching Current | 6A | |
| Number of Poles | 4 | |
| Latching | No | |
| Series | PT | |
| Terminal Type | Quick Connect | |
| Length | 28mm | |
| Coil Resistance | 192Ω | |
| Depth | 22.5mm | |
| Minimum Operating Temperature | -40°C | |
| Height | 35mm | |
| Maximum Operating Temperature | +70°C | |
| Contact Material | Silver Nickel Alloy | |
| Maximum Switching Power AC | 1.5 kVA | |
| Application | Compact | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 24V ac | ||
Contact Configuration 4PDT | ||
Mounting Type PCB Mount | ||
Switching Current 6A | ||
Number of Poles 4 | ||
Latching No | ||
Series PT | ||
Terminal Type Quick Connect | ||
Length 28mm | ||
Coil Resistance 192Ω | ||
Depth 22.5mm | ||
Minimum Operating Temperature -40°C | ||
Height 35mm | ||
Maximum Operating Temperature +70°C | ||
Contact Material Silver Nickel Alloy | ||
Maximum Switching Power AC 1.5 kVA | ||
Application Compact | ||
PT Series With LED Indicator
Cadmium-free contacts
LED and mechanical indicator
Manual/ lockable test facility
Isolation coil to contact; 2.5kV
Contact material: AgNi
Mechanical life; AC; 20 x 106, DC; 30 x 106
Plug-in type
Dimensions: W22.5 x D28 x H29 mm
LED and mechanical indicator
Manual/ lockable test facility
Isolation coil to contact; 2.5kV
Contact material: AgNi
Mechanical life; AC; 20 x 106, DC; 30 x 106
Plug-in type
Dimensions: W22.5 x D28 x H29 mm
