Phoenix Contact PCB Power Relay, 24V dc Coil, 10A Switching Current, DPDT

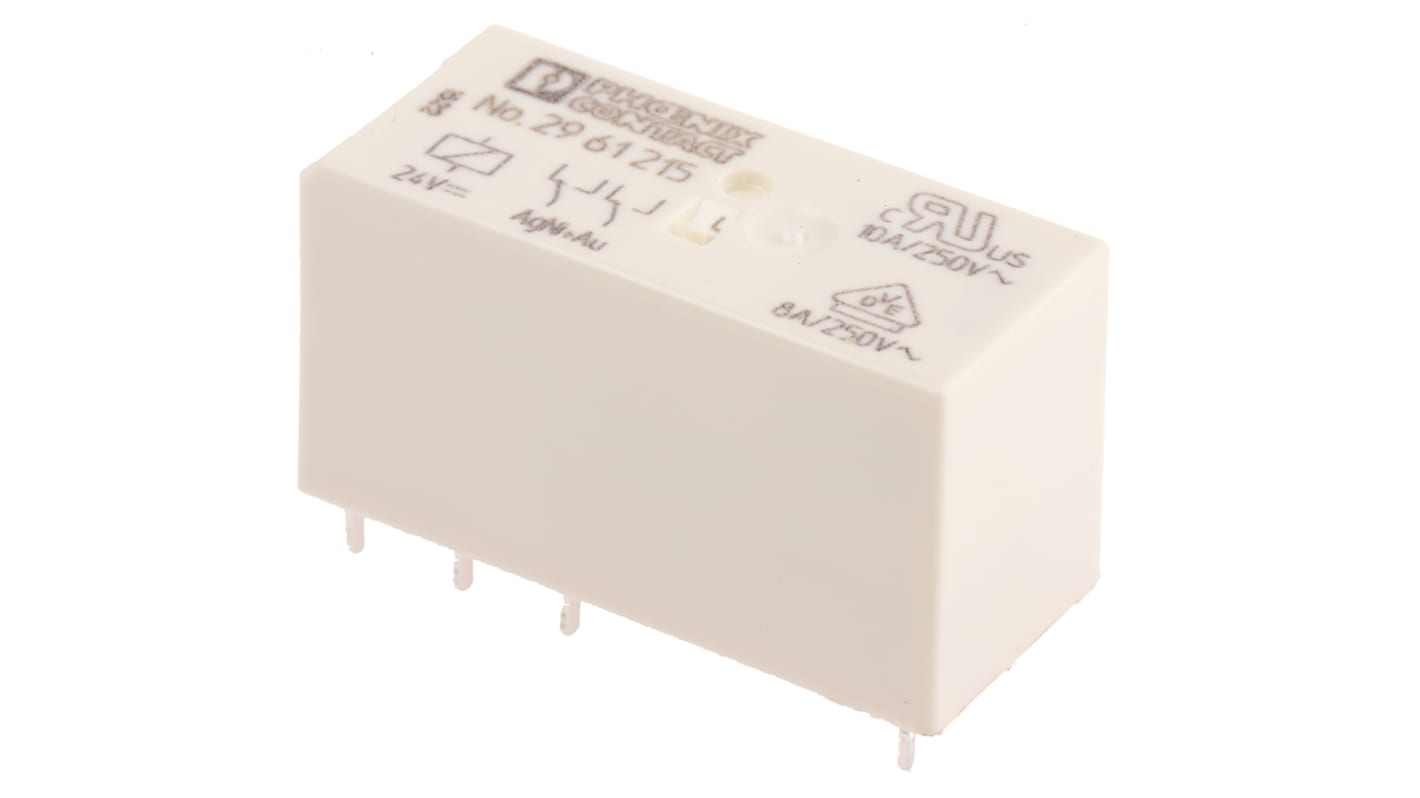

When you need to switch two independent signals in tandem, this non-latching relay from Phoenix Contact reacts at the press of a button. It has a double pole, double throw (DPDT) configuration, which means it switches the circuit when energised and returns to its initial state when the power is released. Compact dimensions of 15.7 (depth) x 29 (height) x 12.7mm (length) mean it can be easily mounted on a printed circuit board (PCB). Through-hole termination provides strong mechanical bonds and electrical connections.

• Operating temperature range of -40°C to +85°C for use in harsh environments

Phoenix contacts REL-MR series of non-latching relays are commonly found within industrial environments, they are considered to be electrical and mechanical devices. This type of relay can often be referred to an electromechanical relay or an industrial switch.

• Pluggable miniature relays, with power contact for high continuous current

A relay is an electrical switch that is operated by electrical pulses, their primary function is to open and close a circuit. When power passes through a circuit, a relay switches position (usually from NC to NO) using an internal coil which generates a magnetic force. This force then holds the relay in a NO position, when the current is switched off the relay returns to the NC position. This function is what makes these non-latching relays perfect for push-button applications such as keyboards and micro-controller input buttons.

Non-latching relays support a range of signal characteristics, ranging from low voltage or current to high voltage or current and from DC to GHz frequencies.

• When a latching relay operates its contacts, the relay holds its position, even when the supply of its operating coil has been disconnected.

  DIN VDE 0435, DIN VDE 0160, DIN VDE 0631, DIN VDE 0110

  IEC 60255, EN 50178, EN 60730, IEC 60664
