Omron DIN Rail Power Relay, 24V dc Coil, 5A Switching Current, 4PDT
- RS Stock No.:
- 488-1831
- Mfr. Part No.:
- MY4IN DC24(S)
- Brand:
- Omron
Bulk discount available
Subtotal (1 unit)*
£9.60
(exc. VAT)
£11.52
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 4 | £9.60 |
| 5 - 9 | £9.31 |
| 10 + | £8.90 |
*price indicative
- RS Stock No.:
- 488-1831
- Mfr. Part No.:
- MY4IN DC24(S)
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Coil Voltage | 24V dc | |
| Product Type | Power Relay | |
| Contact Configuration | 4PDT | |
| Mount Type | DIN Rail | |
| Series | MY4 | |
| Terminal Type | Plug-In | |
| Switching Current | 5A | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 70°C | |
| Coil Resistance | 636Ω | |
| Height | 36mm | |
| Standards/Approvals | CE, CSA, LR, RoHS, UL, VDE | |
| Length | 28mm | |
| Coil Power | 900mW | |
| Width | 21.5mm | |
| Contact Material | Silver Alloy Gold Plated | |
| Contact Resistance | 100mΩ | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Coil Voltage 24V dc | ||
Product Type Power Relay | ||
Contact Configuration 4PDT | ||
Mount Type DIN Rail | ||
Series MY4 | ||
Terminal Type Plug-In | ||
Switching Current 5A | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 70°C | ||
Coil Resistance 636Ω | ||
Height 36mm | ||
Standards/Approvals CE, CSA, LR, RoHS, UL, VDE | ||
Length 28mm | ||
Coil Power 900mW | ||
Width 21.5mm | ||
Contact Material Silver Alloy Gold Plated | ||
Contact Resistance 100mΩ | ||

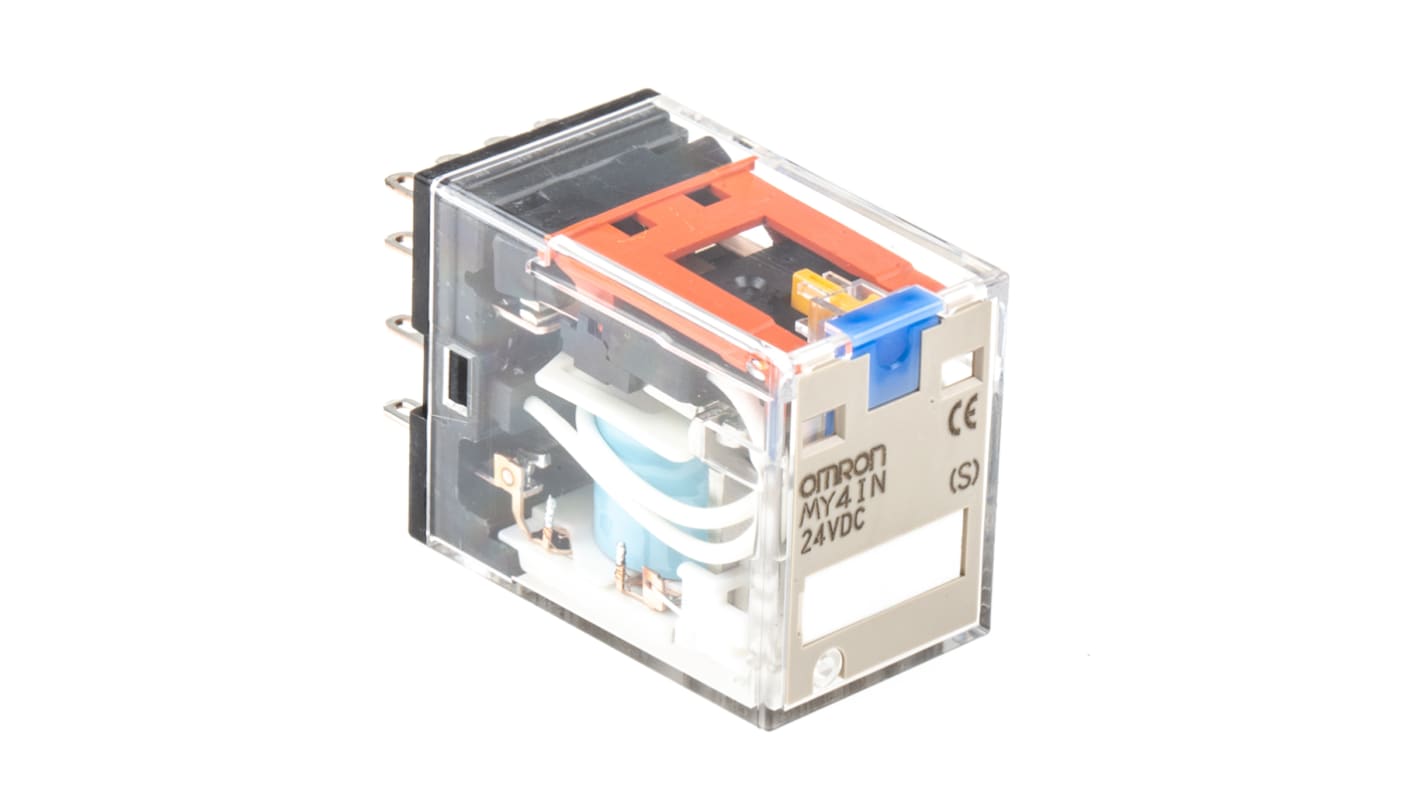

OMRON Power Relay, 36 (H) x 21.5 (W) x 28mm (D), 4 Poles - MY4 Series - MY4IN DC24(S)
Keep your electrical applications ticking over with this power relay from OMRON. It's a general-purpose unit that slides seamlessly into your lighting, motor or heating system for the automated opening and closing of a circuit. Thanks to a front-facing LED indicator, you can tell in a flash if everything's running correctly. For convenient visual inspection, the relay's housed in a transparent cover. Getting set up is straightforward, as you simply plug it into a compatible socket.
Features & Benefits
• Safe for use in harsh environments, thanks to a wide operating temperature range of -55°C to +70°C
• Low power consumption of 0.9W for energy efficiency
• Light weight of 35g to put minimal strain on your equipment
Applications
• Power utilities
• Industrial process control
• Pharmaceutical manufacturing
• Aerospace engineering
How quickly does this power relay operate?
It has an operating and reset time of just 20ms, giving you the advantage of lightning-fast switching.
What's the lifespan of this relay?
As it has a mechanical endurance of approximately 100 million operations, you can trust this product for long-term service.
