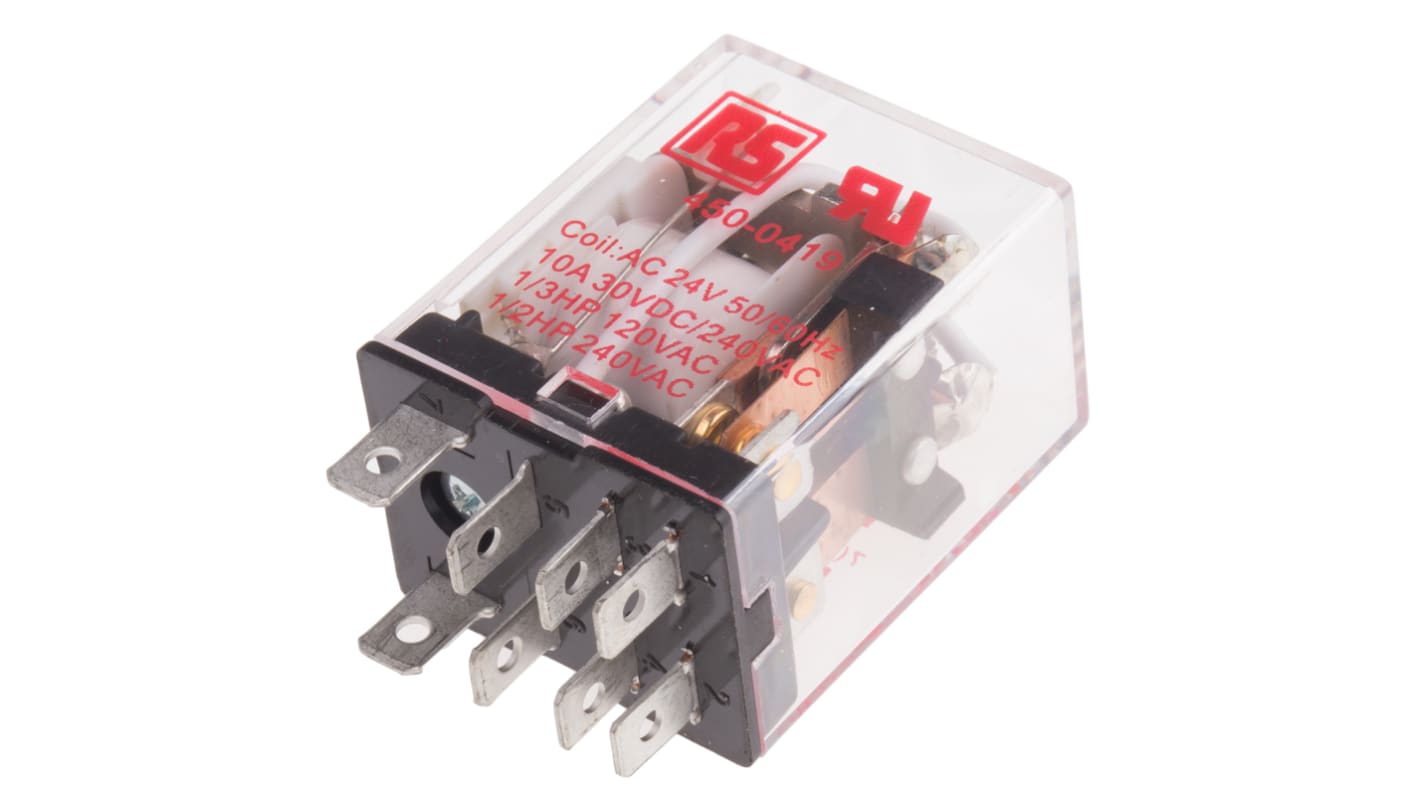

RS PRO Plug In Power Relay, 24V ac Coil, 10A Switching Current, DPDT

View all Power Relays
Bulk discount available

Subtotal (1 unit)*

£7.58

(exc. VAT)

£9.10

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 48 unit(s) ready to ship
  • Plus 240 unit(s) shipping from 18 December 2025
  • Plus 240 unit(s) shipping from 12 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£7.58
5 - 9£7.34
10 +£7.02

*price indicative

RS Stock No.:
450-0419
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Coil Voltage

24V ac

Contact Configuration

DPDT

Mounting Type

Plug In

Switching Current

10A

Number of Poles

2

Latching

No

Terminal Type

PCB Pin

Maximum Switching Voltage AC

240V ac

Maximum Switching Voltage DC

30V dc

Length

28mm

Coil Resistance

180Ω

Coil Power

1.2W

Isolation Coil To Contact

1.5kV ac

Height

36mm

Life

1000000 (Electrical) cycles, 10000000 (Mechanical) cycles

Contact Material

Silver Alloy

Standards Met

CUR E125370, UL E125370

Minimum Operating Temperature

-45°C

Maximum Operating Temperature

+55°C

Depth

21.5mm

Maximum Switching Power DC

300 W

Maximum Switching Power AC

2.4 kVA

Application

Power

COO (Country of Origin):
TW

10A, 12A, 15A Industrial Relay


Contact resistance: 50mΩ max.
Mechanical life: 10 million operations
Electrical life: 100000 operations
