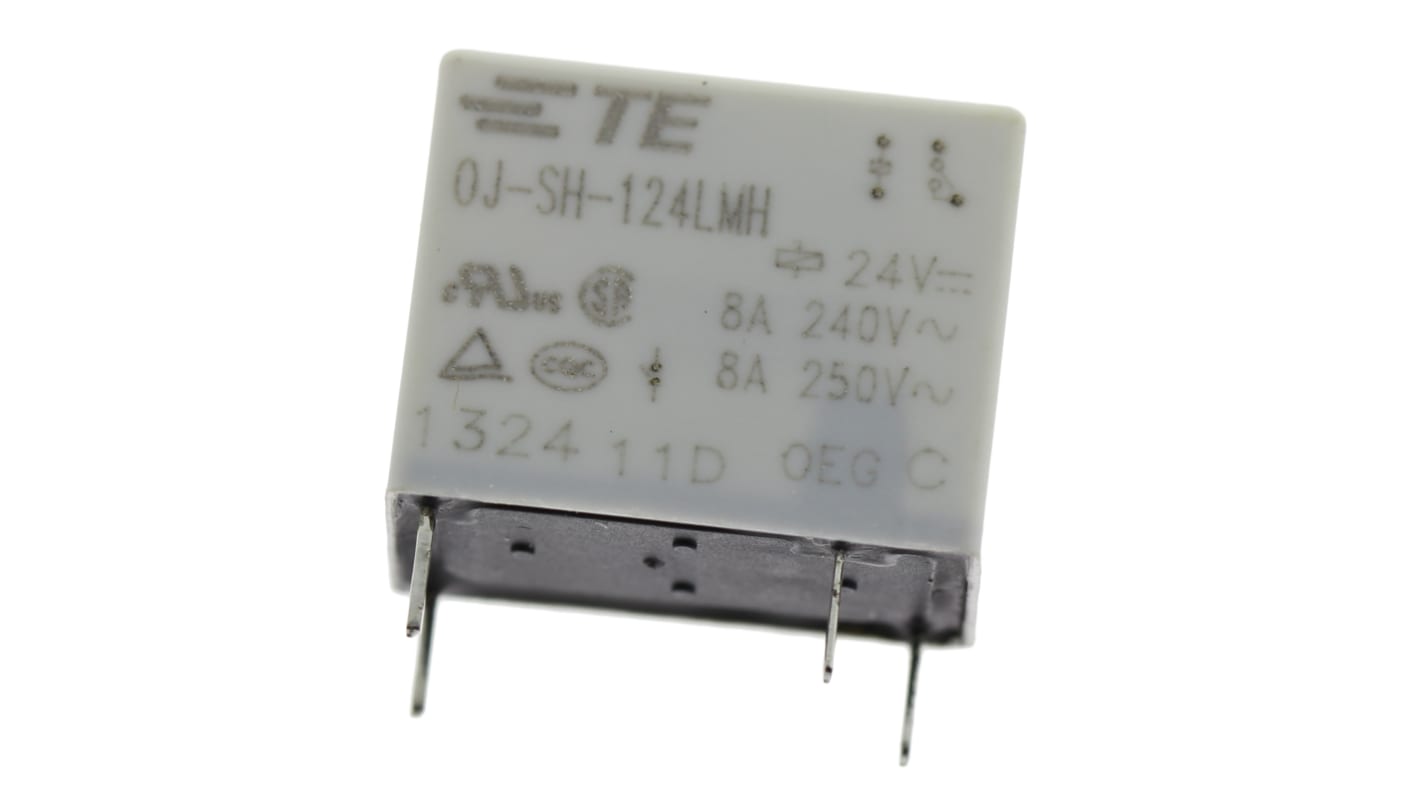

TE Connectivity PCB Mount Power Relay, 24V dc Coil, 8A Switching Current, SPST
- RS Stock No.:
- 422-6925
- Mfr. Part No.:
- OJ-SH-124LMH
- Brand:
- TE Connectivity
Subtotal (1 unit)*
£1.06
(exc. VAT)
£1.27
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 655 left, ready to ship
- Plus 102 left, ready to ship from another location
- Plus 753 left, shipping from 08 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £1.06 |
*price indicative
- RS Stock No.:
- 422-6925
- Mfr. Part No.:
- OJ-SH-124LMH
- Brand:
- TE Connectivity
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Coil Voltage | 24V dc | |
Contact Configuration | SPST | |
Mounting Type | PCB Mount | |
Switching Current | 8A | |
Number of Poles | 1 | |
Latching | No | |
Series | OJ | |
Terminal Type | Through Hole | |
Maximum Switching Voltage AC | 250V ac | |
Length | 18.2mm | |
Coil Resistance | 2800Ω | |
Coil Power | 200mW | |
Height | 14.7mm | |
Depth | 10.2mm | |
Contact Material | Silver Alloy | |
Life | 1000000 (Electrical) cycles, 1000000 (Mechanical) cycles | |
Isolation Coil To Contact | 4kV ac | |
Maximum Operating Temperature | +80°C | |
Minimum Operating Temperature | -30°C | |
Maximum Switching Power DC | 200 W | |
Maximum Switching Power AC | 1.8 kVA | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Coil Voltage 24V dc | ||
Contact Configuration SPST | ||
Mounting Type PCB Mount | ||
Switching Current 8A | ||
Number of Poles 1 | ||
Latching No | ||
Series OJ | ||
Terminal Type Through Hole | ||
Maximum Switching Voltage AC 250V ac | ||
Length 18.2mm | ||
Coil Resistance 2800Ω | ||
Coil Power 200mW | ||
Height 14.7mm | ||
Depth 10.2mm | ||
Contact Material Silver Alloy | ||
Life 1000000 (Electrical) cycles, 1000000 (Mechanical) cycles | ||
Isolation Coil To Contact 4kV ac | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -30°C | ||
Maximum Switching Power DC 200 W | ||
Maximum Switching Power AC 1.8 kVA | ||
