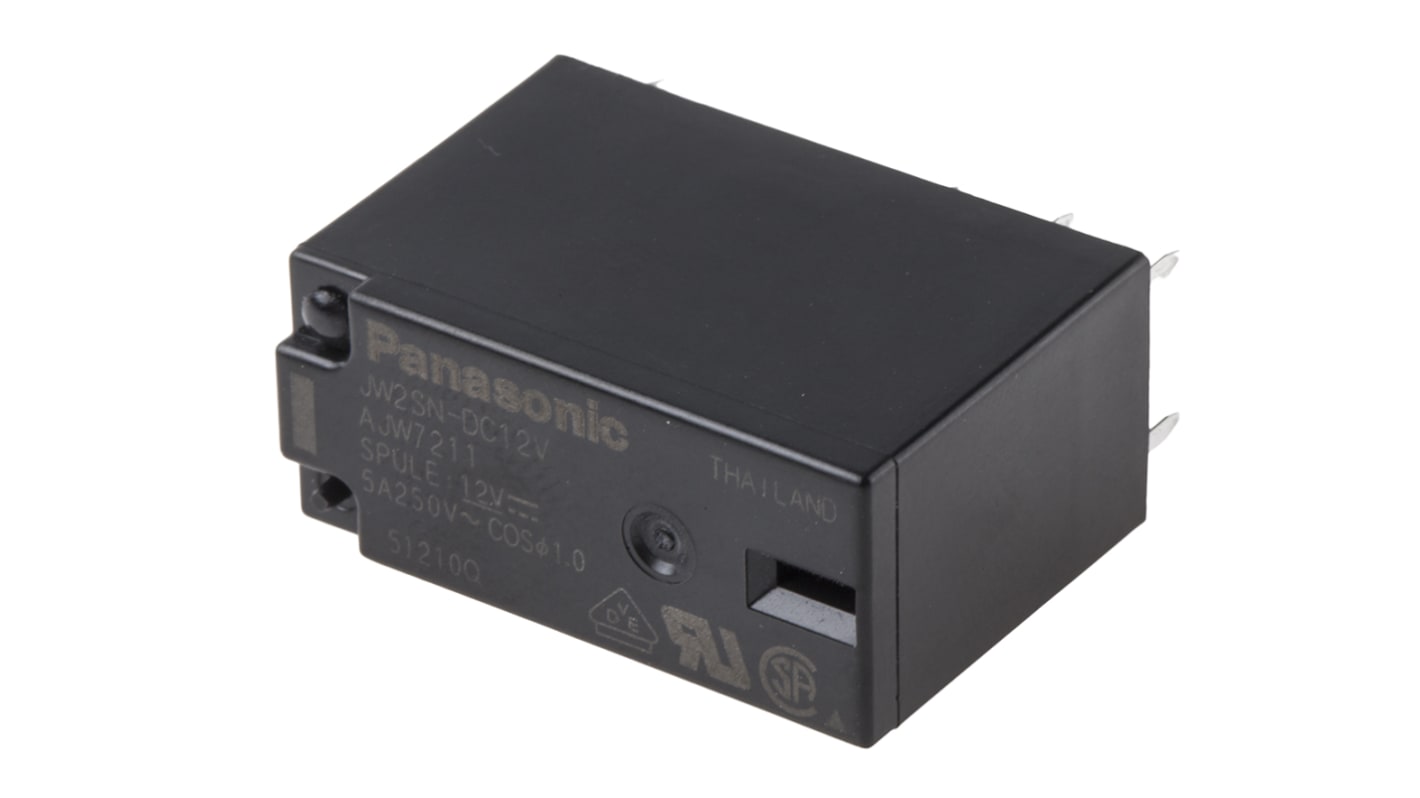

Panasonic PCB Mount Power Relay, 12V dc Coil, DPDT
- RS Stock No.:
- 399-8405
- Mfr. Part No.:
- JW2SN-DC12V
- Brand:
- Panasonic
Stock information currently inaccessible
- RS Stock No.:
- 399-8405
- Mfr. Part No.:
- JW2SN-DC12V
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Coil Voltage | 12V dc | |
| Contact Configuration | DPDT | |
| Mounting Type | PCB Mount | |
| Number of Poles | 2 | |
| Latching | No | |
| Series | JW | |
| Terminal Type | Through Hole | |
| Length | 28.6mm | |
| Coil Resistance | 270Ω | |
| Depth | 12.8mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +60°C | |
| Height | 20mm | |
| Contact Material | Silver Alloy | |
| Maximum Switching Power DC | 150 W | |
| Maximum Switching Power AC | 1.25 kVA | |
| Application | Power | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Coil Voltage 12V dc | ||
Contact Configuration DPDT | ||
Mounting Type PCB Mount | ||
Number of Poles 2 | ||
Latching No | ||
Series JW | ||
Terminal Type Through Hole | ||
Length 28.6mm | ||
Coil Resistance 270Ω | ||
Depth 12.8mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +60°C | ||
Height 20mm | ||
Contact Material Silver Alloy | ||
Maximum Switching Power DC 150 W | ||
Maximum Switching Power AC 1.25 kVA | ||
Application Power | ||
- COO (Country of Origin):
- TH
The Panasonic power relay from JW series from 2 form C series, the device has standard contact capacity of 5 A. It has a sealed, protective construction. It operates at the maximum 70% of the rated coil voltage. The rated coil voltage for this device is 12 Vdc.
It has AgSnO2 type (1a) contacts
It used in applications like home appliance, office machine and industrial equipment
