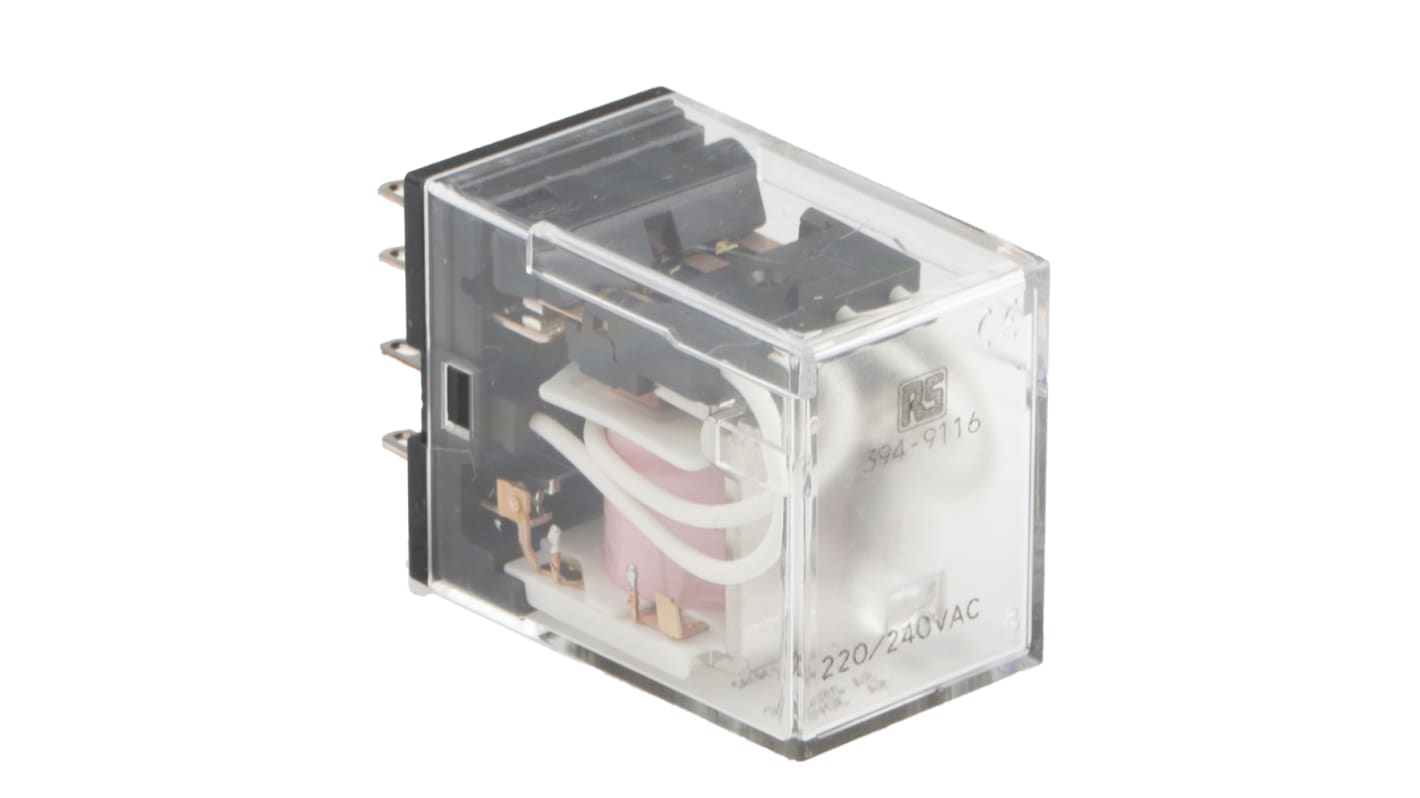

RS PRO Plug In Power Relay, 240V ac Coil, 5A Switching Current, 4PDT
- RS Stock No.:
- 394-9116
- Brand:
- RS PRO
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£7.93
(exc. VAT)
£9.52
(inc. VAT)
- RS Stock No.:
- 394-9116
- Brand:
- RS PRO
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Coil Voltage | 240V ac | |
Contact Configuration | 4PDT | |
Mounting Type | Plug In | |
Switching Current | 5A | |
Number of Poles | 4 | |
Latching | No | |
Terminal Type | Through Hole | |
Maximum Switching Voltage AC | 250V ac | |
Maximum Switching Voltage DC | 125V dc | |
Length | 28mm | |
Coil Resistance | 18790Ω | |
Coil Power | 1.1W | |
Maximum Operating Temperature | +70°C | |
Minimum Operating Temperature | -55°C | |
Contact Material | Gold Plated | |
Life | 200000 (Electrical) cycles, 50000000 (Mechanical) cycles | |
Depth | 21.5mm | |
Standards Met | CE, CSA, RoHS Compliant | |
Height | 36mm | |
Isolation Coil To Contact | 2kV ac | |
Maximum Switching Power DC | 150 W | |
Maximum Switching Power AC | 1.25 kVA | |
Application | Power | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Coil Voltage 240V ac | ||
Contact Configuration 4PDT | ||
Mounting Type Plug In | ||
Switching Current 5A | ||
Number of Poles 4 | ||
Latching No | ||
Terminal Type Through Hole | ||
Maximum Switching Voltage AC 250V ac | ||
Maximum Switching Voltage DC 125V dc | ||
Length 28mm | ||
Coil Resistance 18790Ω | ||
Coil Power 1.1W | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -55°C | ||
Contact Material Gold Plated | ||
Life 200000 (Electrical) cycles, 50000000 (Mechanical) cycles | ||
Depth 21.5mm | ||
Standards Met CE, CSA, RoHS Compliant | ||
Height 36mm | ||
Isolation Coil To Contact 2kV ac | ||
Maximum Switching Power DC 150 W | ||
Maximum Switching Power AC 1.25 kVA | ||
Application Power | ||
RS PRO Non-Latching Relay, Plug-In, 4PDT, 240 V AC Coil, 5 A Switching Current
This relay is highly efficient, as it has a quick response time and ultra-high sensitivity. Plug-in mounting makes it easy to install, saving you time. The transparent housing means you can easily inspect it without taking it apart.
Relays like this are often used in household appliances and vehicle engines. This long-lasting product offers up to 200,000 electrical cycles and 50,000,000 mechanical ones for reliability and high performance.
Features and Benefits
- Power application
- Coil power of 1.1 W
- Coil resistance of 18.79 kΩ
- Coil voltage of 240 V AC
- Four pole, double throw (4PDT) contact configuration
- Gold-plated contact material
- Dimensions of 28 (length) x 36 (height) x 21.5 mm (depth)
- Isolation coil to contact of 2 kV AC
- Operating temperature range of -55°C to +70°C
- Maximum switching power (AC) of 250 V, 1.25 kVA
- Maximum switching power (DC) of 125 V, 150 W
- Plug-in mounting type
- Four poles
- Non-latching relay switching classification
- Single contact
- Meets European Conformity (CE), Canadian Standards Association (CSA), and Restriction of Hazardous Substances (RoHS) standards
- Switching current of 5 A
- Through-hole terminal type
Approvals
