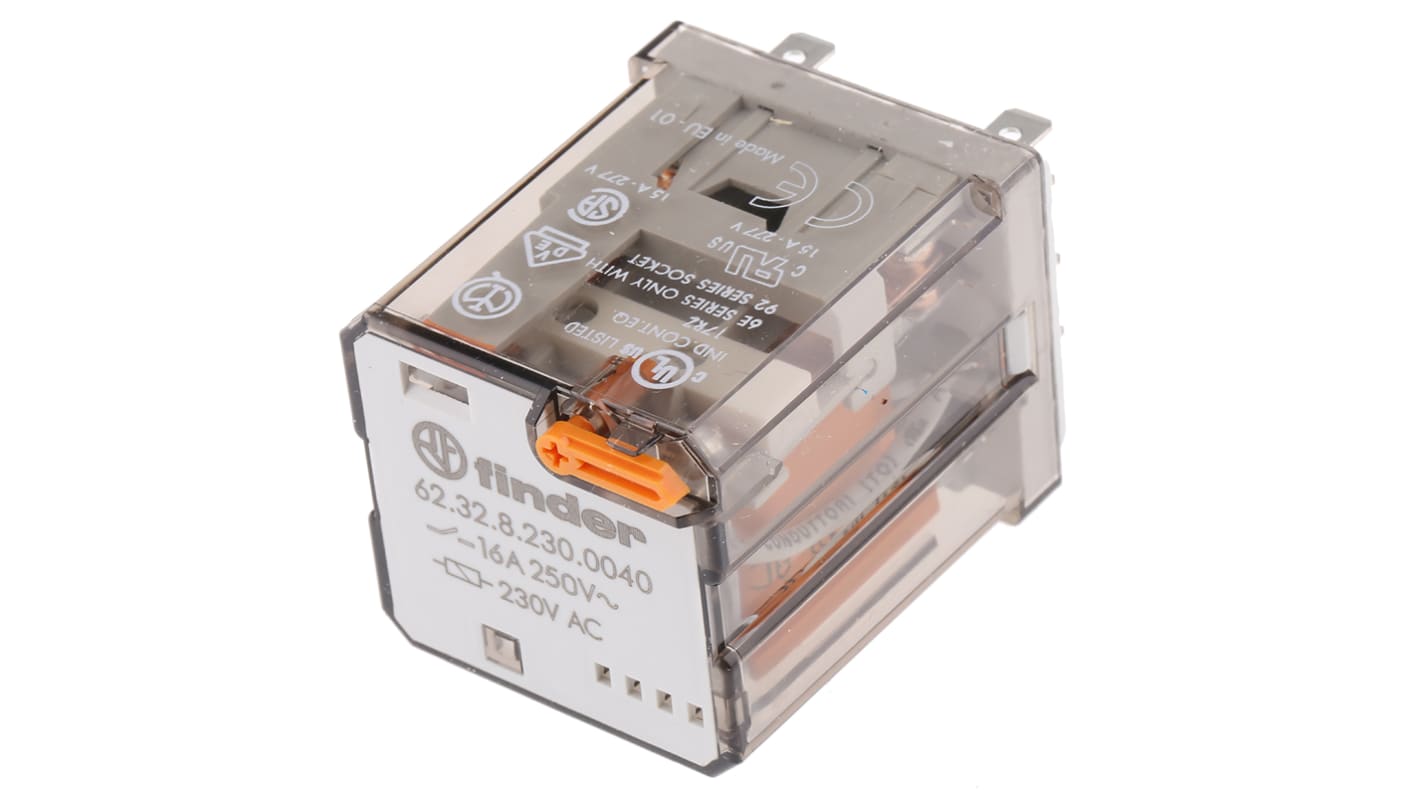

Finder Plug In Power Relay, 230V ac Coil, 16A Switching Current, DPDT
- RS Stock No.:
- 292-8427
- Mfr. Part No.:
- 62.32.8.230.0040
- Brand:
- Finder
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 292-8427
- Mfr. Part No.:
- 62.32.8.230.0040
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Finder | |
Coil Voltage | 230V ac | |
Contact Configuration | DPDT | |
Mounting Type | Plug In | |
Switching Current | 16A | |
Number of Poles | 2 | |
Latching | No | |
Terminal Type | Quick Connect | |
Maximum Switching Voltage AC | 400V ac | |
Length | 38.2mm | |
Coil Resistance | 7250Ω | |
Coil Power | 2.2W | |
Minimum Operating Temperature | -40°C | |
Standards Met | CE, EAC | |
Height | 35.8mm | |
Contact Material | Silver Alloy | |
Series | 62 Series | |
Depth | 49.1mm | |
Life | 100000 Cycles | |
Isolation Coil To Contact | 6kV | |
Maximum Operating Temperature | +70°C | |
Maximum Switching Power AC | 4 kVA | |
Application | Power | |
Select all | ||
---|---|---|
Brand Finder | ||
Coil Voltage 230V ac | ||
Contact Configuration DPDT | ||
Mounting Type Plug In | ||
Switching Current 16A | ||
Number of Poles 2 | ||
Latching No | ||
Terminal Type Quick Connect | ||
Maximum Switching Voltage AC 400V ac | ||
Length 38.2mm | ||
Coil Resistance 7250Ω | ||
Coil Power 2.2W | ||
Minimum Operating Temperature -40°C | ||
Standards Met CE, EAC | ||
Height 35.8mm | ||
Contact Material Silver Alloy | ||
Series 62 Series | ||
Depth 49.1mm | ||
Life 100000 Cycles | ||
Isolation Coil To Contact 6kV | ||
Maximum Operating Temperature +70°C | ||
Maximum Switching Power AC 4 kVA | ||
Application Power | ||
- COO (Country of Origin):
- IT


Finder Series 62 Power Relay, DPDT Contact Configuration, 230V AC Coil Voltage - 62.32.8.230.0040
This power relay offers an effective solution for controlling high power loads in various electrical applications. Featuring a robust 230 V AC coil and impressive switching capabilities, it enables precise management of circuits. Its design caters to both automated and industrial environments, highlighting its importance in diverse electronic and electrical systems.
Features & Benefits
• Quick connect terminals for easy installation and replacement
• DPDT configuration for versatile switching applications
• Supports up to 16A switching current for various tasks
• Silver alloy contacts for durability and consistent performance
• Reinforced insulation to enhance safety between the coil and contacts
• Compact design for installation in tight spaces
• DPDT configuration for versatile switching applications
• Supports up to 16A switching current for various tasks
• Silver alloy contacts for durability and consistent performance
• Reinforced insulation to enhance safety between the coil and contacts
• Compact design for installation in tight spaces
Applications
• Control of motors in industrial machinery
• Automation systems requiring dependable switching
• Building management systems for energy management
• HVAC systems for optimal operation
• Power distribution panels in commercial environments
• Automation systems requiring dependable switching
• Building management systems for energy management
• HVAC systems for optimal operation
• Power distribution panels in commercial environments
How does this relay enhance safety during operation?
The reinforced insulation between the coil and contacts minimises the risk of electrical failures, improving overall safety.
What type of environments can it be used in?
It operates effectively in temperatures ranging from -40°C to +70°C, making it suitable for various conditions.
Can it be integrated into existing automation systems?
Yes, it is designed for easy integration with different automation systems due to its versatile switching configuration and quick connect terminals.
What maintenance is required for optimal performance?
Regular checks for secure connections and contact integrity will help maintain its performance. Cleaning terminals periodically can prevent corrosion.
Is it compatible with both AC and DC applications?
This specific model is designed for AC applications with a coil voltage of 230 V AC.
