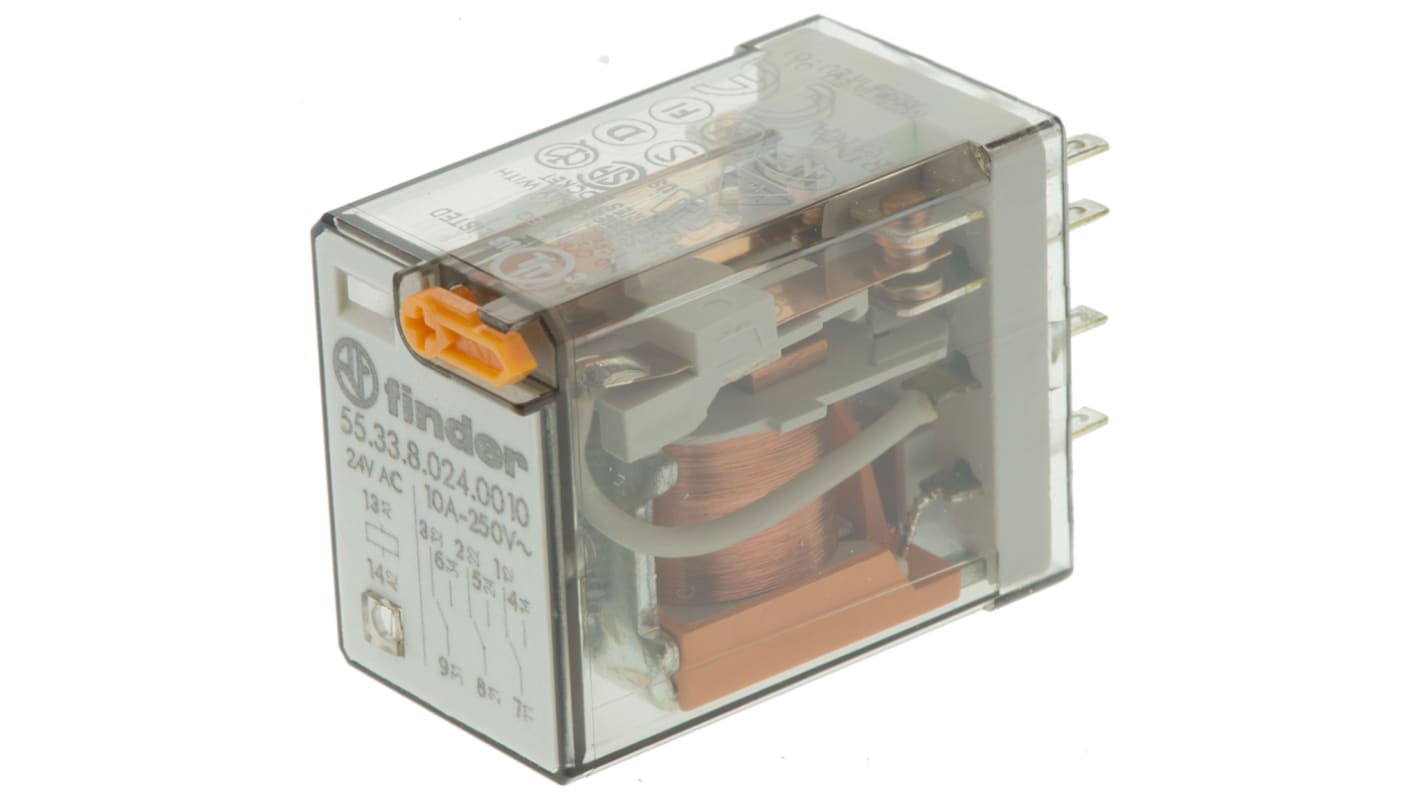

Finder Plug In Power Relay, 24V ac Coil, 10A Switching Current, 3PDT

RS Stock No.:: 292-8304
Distrelec Article No.:: 137-44-414
Mfr. Part No.:: 55.33.8.024.0010
Brand:: Finder

Finder Plug In Power Relay, 24V ac Coil, 10A Switching Current, 3PDT

Bulk discount available

Subtotal (1 unit)*

£12.59

(exc. VAT)

£15.11

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

13 unit(s) ready to ship
Plus 91 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	£12.59
5 - 9	£12.21
10 +	£11.66

*price indicative

RS Stock No.:: 292-8304
Distrelec Article No.:: 137-44-414
Mfr. Part No.:: 55.33.8.024.0010
Brand:: Finder

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Finder
	Coil Voltage	24V ac
	Contact Configuration	3PDT
	Mounting Type	Plug In
	Switching Current	10A
	Number of Poles	3
	Latching	No
	Series	55 Series
	Terminal Type	Quick Connect
	Maximum Switching Voltage AC	400V ac
	Length	27.7mm
	Coil Resistance	190Ω
	Coil Power	1.5W
	Height	37.2mm
	Isolation Coil To Contact	4kV
	Life	200000 Cycles
	Contact Material	Silver Alloy
	Depth	20.7mm
	Maximum Operating Temperature	+85°C
	Minimum Operating Temperature	-40°C
	Standards Met	CCC, CE, cLUus, CSA, EAC, ENEC03, LR, RINA, VDE
	Maximum Switching Power AC	2.5 kVA
	Dimensions	20.7x37.2x27.7mm

	Select all
	Brand Finder
	Coil Voltage 24V ac
	Contact Configuration 3PDT
	Mounting Type Plug In
	Switching Current 10A
	Number of Poles 3
	Latching No
	Series 55 Series
	Terminal Type Quick Connect
	Maximum Switching Voltage AC 400V ac
	Length 27.7mm
	Coil Resistance 190Ω
	Coil Power 1.5W
	Height 37.2mm
	Isolation Coil To Contact 4kV
	Life 200000 Cycles
	Contact Material Silver Alloy
	Depth 20.7mm
	Maximum Operating Temperature +85°C
	Minimum Operating Temperature -40°C
	Standards Met CCC, CE, cLUus, CSA, EAC, ENEC03, LR, RINA, VDE
	Maximum Switching Power AC 2.5 kVA
	Dimensions 20.7x37.2x27.7mm

COO (Country of Origin):: IT

Finder 55 Series Power Relay, 3PDT Contact Configuration, 24V AC Coil Voltage - 55.33.8.024.0010

This power relay is a versatile component in the 55 Series, designed for advanced automation tasks. It features a coil voltage of 24 V AC and a robust switching current capacity of 10 A. The relay's compact dimensions, measuring 20.7mm in depth, 37.2mm in height, and 27.7mm in length, make it suitable for various applications. Additionally, it incorporates quick connect terminals for efficient installation.

Features & Benefits

• Allows reliable operation at a maximum switching voltage of 400 V AC
• Delivers a mechanical life of 20 million cycles for durability
• Provides a high level of insulation between the coil and contact, rated at 4 kV
• Features a quick connect terminal type for easier connections
• Supports a broad temperature range from -40 °C to +85 °C
• Complies with multiple international standards for widespread usability

Applications

• Ideal for automation in blinds, grilles, and shutters
• Utilised in control panels for effective electrical distribution
• Suitable for road and tunnel lighting systems
• Effective in shipyard operations where reliable control is paramount
• Employed in hoists and cranes to manage heavy loads

Can this device handle high voltage applications?

Yes, it is rated for a maximum switching voltage of 400 V AC, making it suitable for high voltage applications.

What configurations are available for this relay?

It is available in a 3PDT configuration, providing three poles for versatile switching functions.

How does the insulation value contribute to safety?

The insulation level of 4 kV between the coil and contact ensures a high degree of safety, preventing unwanted electrical interference.

What is the lifespan of this relay under typical usage?

The relay boasts an impressive electrical life of 200,000 cycles at rated load, ensuring longevity in demanding environments.

Is this relay suitable for outdoor use?

While designed for a broad temperature range, it should be housed in an appropriate enclosure for outdoor applications to protect against environmental factors.
